Technical Specifications
| Item | Specification |
|---|---|

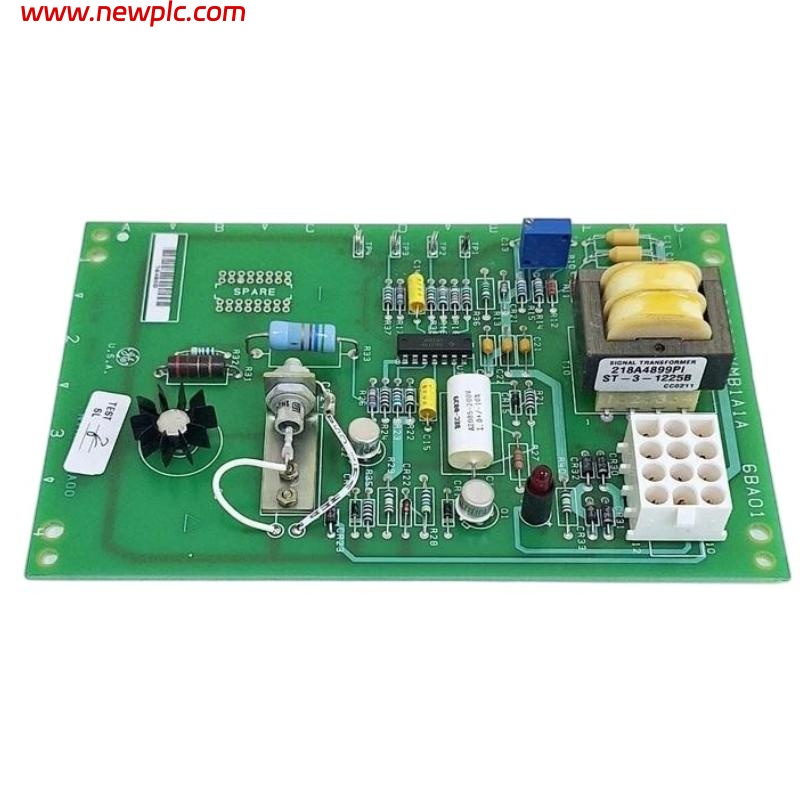

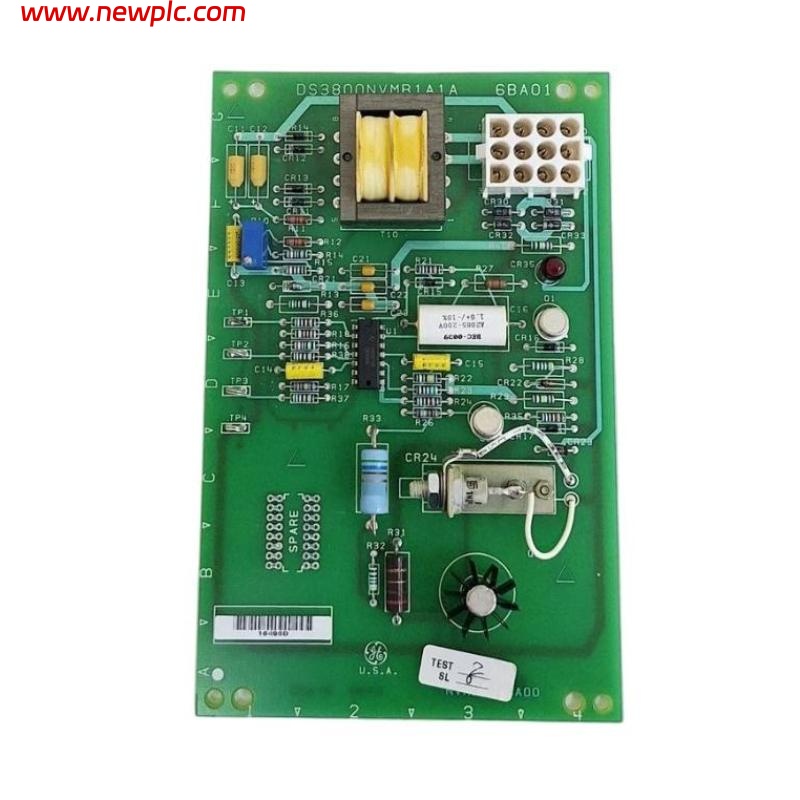

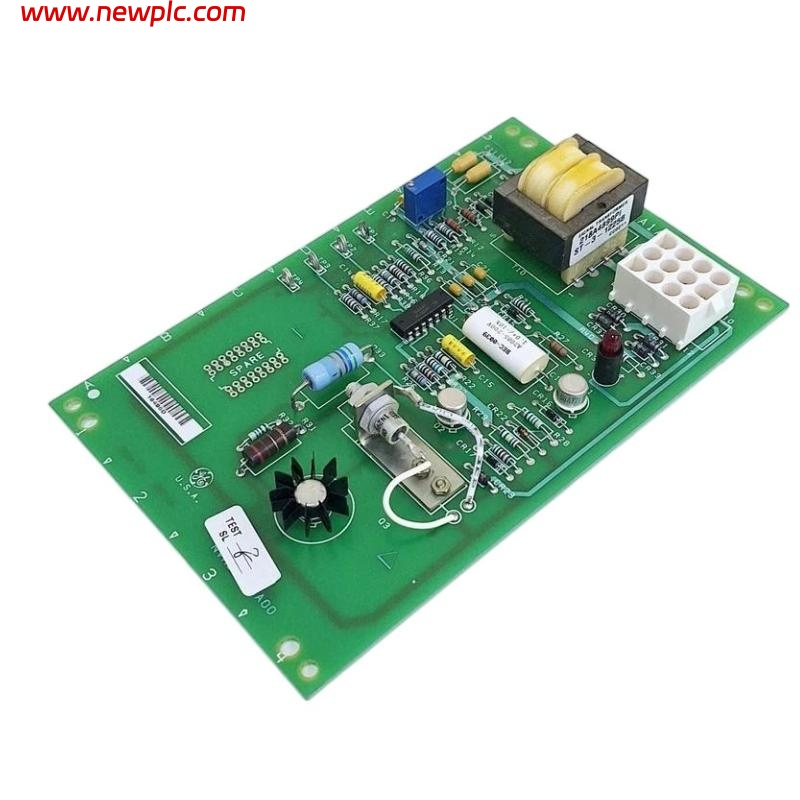

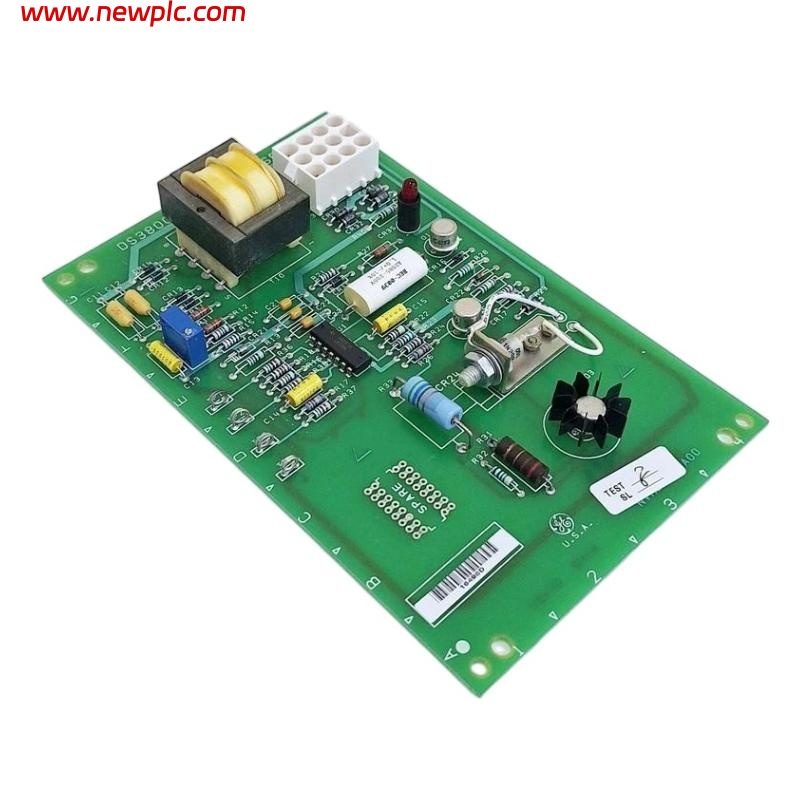

| Model | DS3800NVMB1A1A |
| Product Type | Voltage Monitoring Board |
| Compatible System | GE Mark IV / Mark V |
| Function | Voltage sampling, stability monitoring, status feedback |
| Input Voltage Range | Multiple monitored voltages from system backplane |
| Output Signals | Voltage status signal, diagnostic feedback |
| Power Source | Supplied via system backplane |
| Main Components | Precision sampling circuit, isolation modules, signal processing unit |
| Noise Immunity | Industrial-grade anti-interference design |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Installation Method | Standard rack slot installation |
| Applications | Power quality monitoring, system diagnostics, fault prevention |
| Dimensions | 188.6 × 121 × 20 mm |
| Weight | 0.38 kg |
FAQ
FAQ
Q: What is the main purpose of the DS3800NVMB1A1A?
A1: It monitors multiple system voltages and ensures stable operation with timely status feedback.
Q: Does this board require on-site calibration?
A2: It is factory-calibrated; secondary calibration is needed only for special applications.
Q: Should the cabinet power be turned off during installation?
A3: Yes, installation must be performed with power off.
Q: Will a failure of this board affect system operation?
A4: Yes, voltage monitoring errors may trigger system alarms.
Q: Does it support hot-swapping?
A5: No, hot-swapping is not supported.
Q: Is it compatible with other Mark series boards?
A6: Compatible with select Mark IV / V configurations depending on system design.
Q: Does it contain programmable components?
A7: No; it is based on analog sampling and monitoring circuitry.
Q: What routine maintenance is required?
A8: Keep the cabinet dry, ensure connector contact quality, and clean dust regularly.
