Technical Specifications
| Item | Specification |
|---|---|

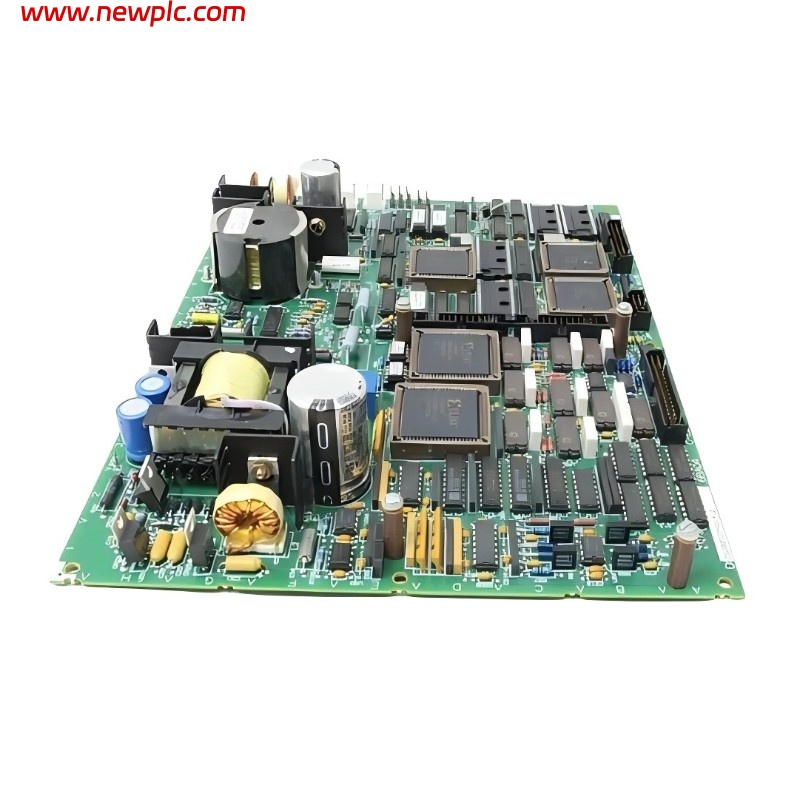

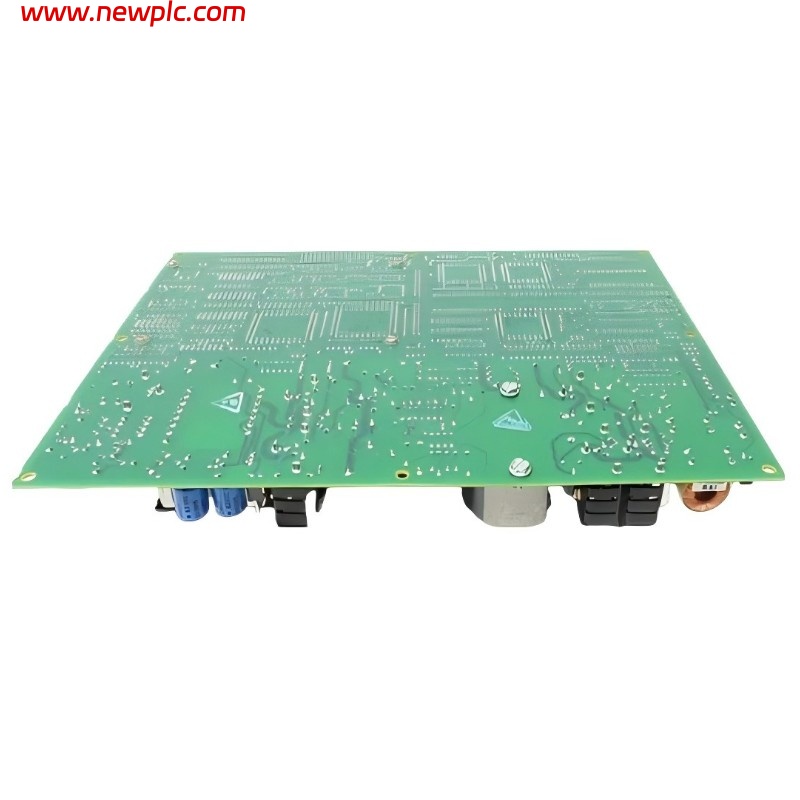

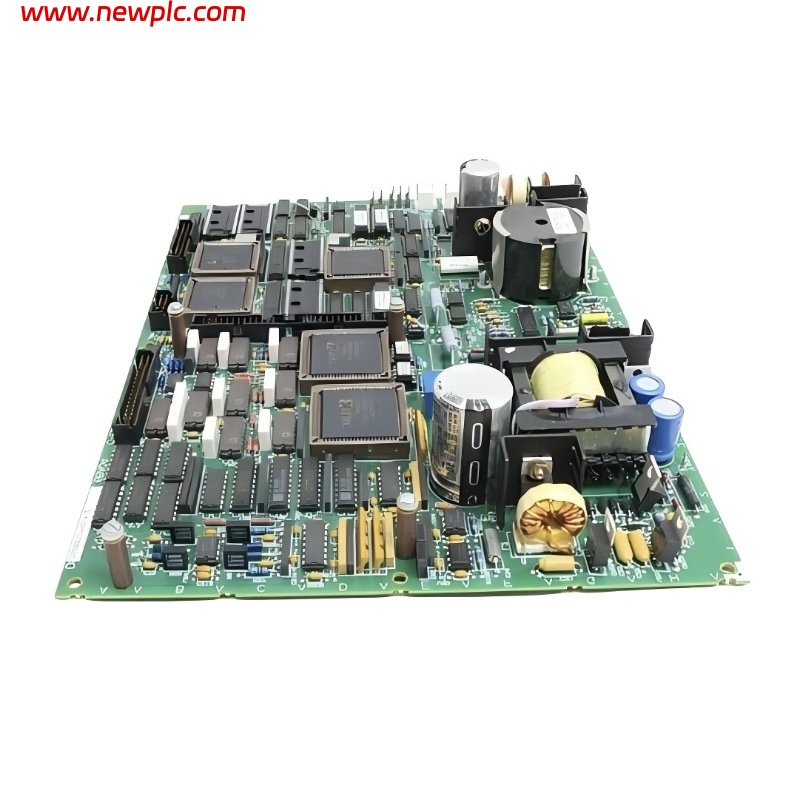

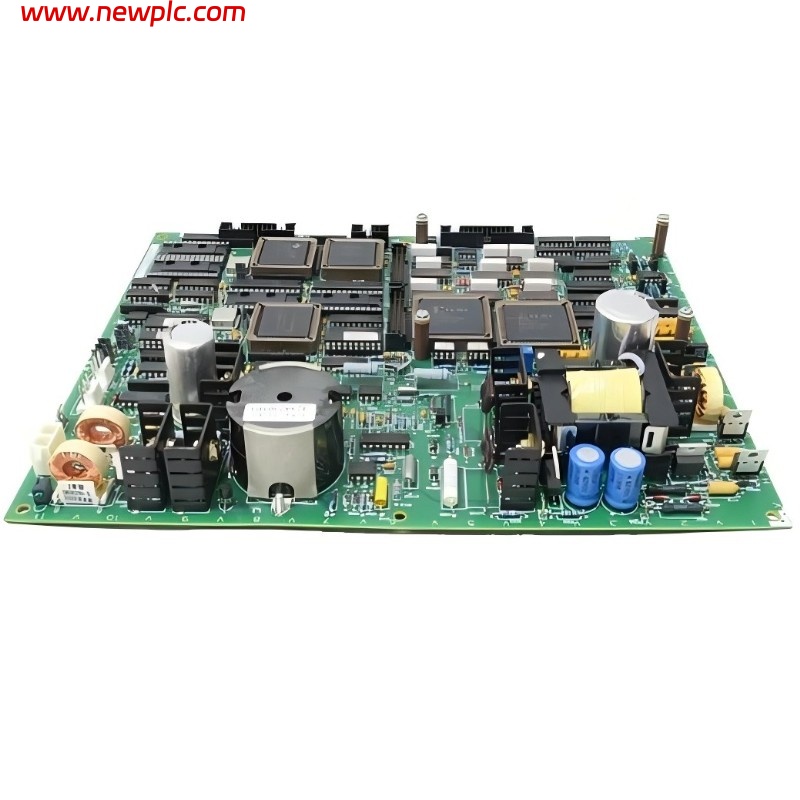

| Model | DS200TCPAG1AJD |
| Product Type | Turbo Control Processor Board |
| Compatible System | GE Mark V control system |
| Processor Type | Industrial-grade control processor |
| Function | Turbine control logic processing, I/O coordination, system management |
| Memory Structure | Onboard program memory and operating memory |
| I/O Interface | Backplane connector and multiple signal slots |
| Communication | High-speed communication with other Mark V boards |
| Power Requirement | Supplied by system backplane |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Vibration Resistance | Meets industrial cabinet vibration requirements |
| Main Applications | Gas/steam turbine control, status monitoring, logic execution |
| Dimensions | 233 × 197 × 20 mm |
| Weight | 0.45 kg |
FAQ
FAQ
Q: What is the main function of the DS200TCPAG1AJD?
A: It handles turbine control logic, system coordination, and monitoring as a core processor in the Mark V system.
Q: Can this processor board operate independently?
A: No, it must work together with other modules in the Mark V system.
Q: Should the system be powered down during replacement?
A: Yes, replacement should be performed with the system fully powered off.
Q: Does it require program loading?
A: Yes, it needs to be configured with site-specific logic or loaded from the supervisory system.
Q: Will board failure stop the system?
A: Yes, because it is a critical processing component.
Q: How does it communicate with other boards?
A: Through the system backplane at high speed.
Q: Is special installation tooling required?
A: No, standard cabinet mounting and screws are sufficient.
Q: What is the typical service life?
A: It can operate reliably for many years depending on environmental and operational conditions.
