Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IC693MDL260 |
| Type | 24 VDC Input Module |
| Number of Inputs | 16 points |
| Input Type | Positive logic |
| Voltage Range | 0–30 VDC |
| Rated Voltage | 24 VDC |
| Input Current | Approx. 7 mA per point |
| Isolation | Opto-isolation |
| Response Time | < 10 ms |
| Operating Temperature | 0°C – 60°C |
| Storage Temperature | –40°C – 85°C |
| Dimensions | 130 x 40 x 110 mm |
| Weight | 0.308 kg |
FAQ
FAQ

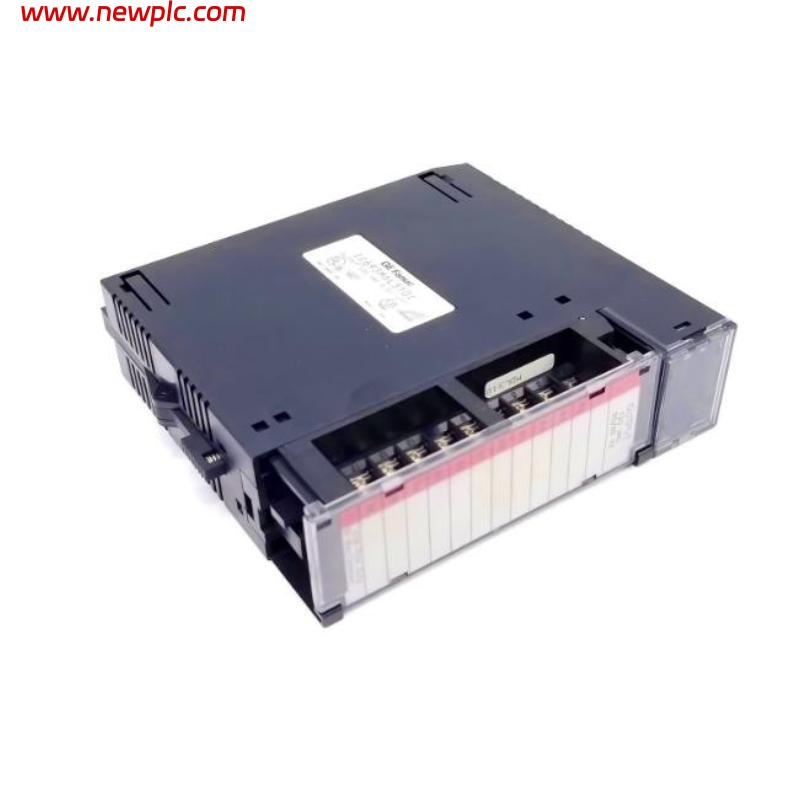

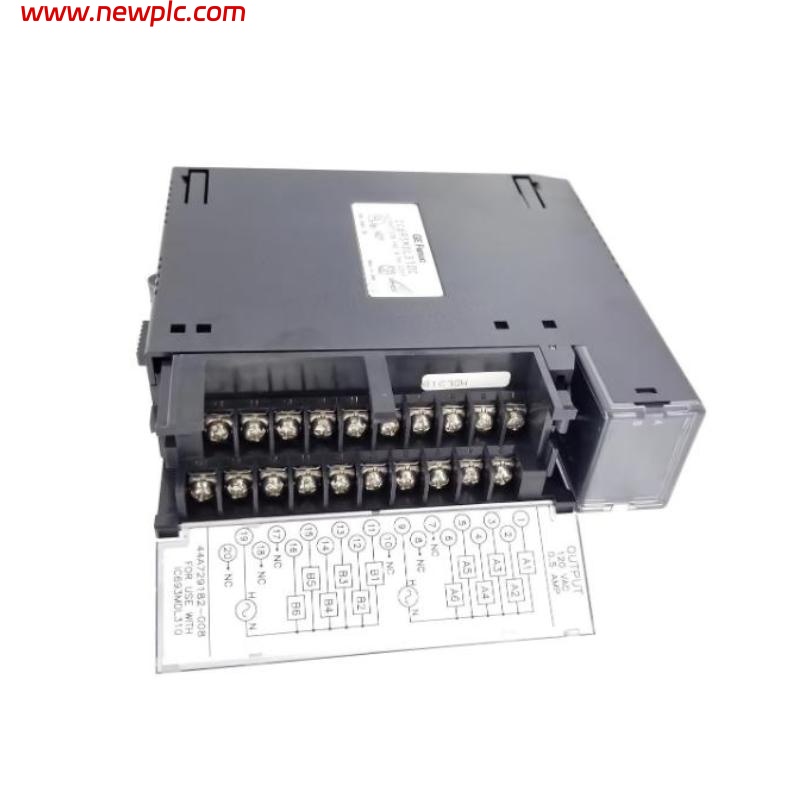

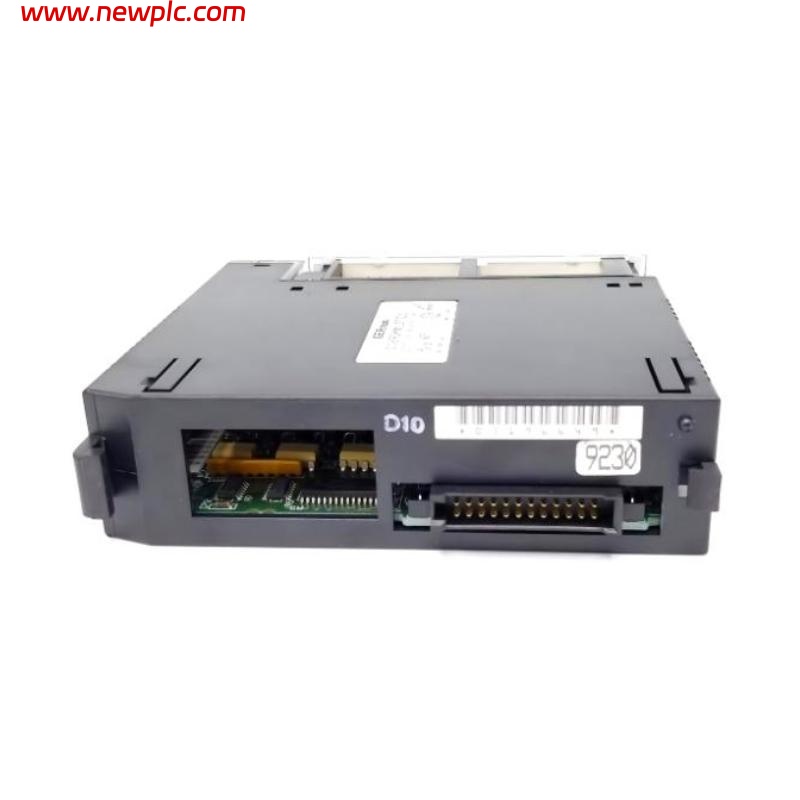

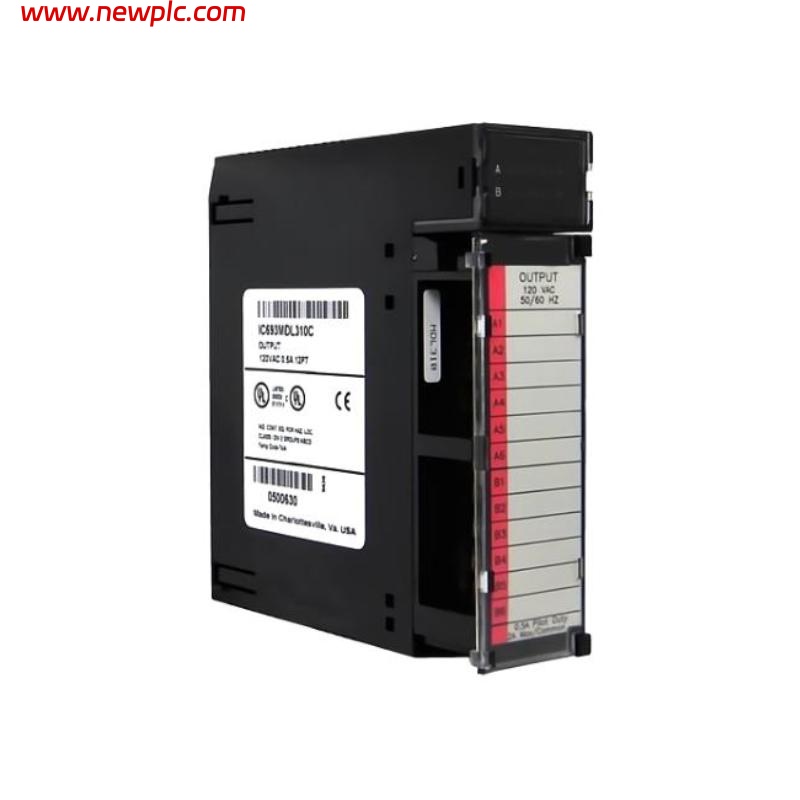

Q1: What type of module is the IC693MDL310?
A1: It is a 120 VAC relay output module.
Q2: How many output points does the module provide?
A2: It provides 8 output channels.
Q3: What is the maximum load current per point?
A3: 2 A per point.
Q4: What is the isolation rating of the relay contacts?
A4: 1500 V RMS.
Q5: What is the maximum switching voltage?
A5: Up to 240 VAC.
Q6: What is the typical response time?
A6: Less than 12 ms.
Q7: What are the module’s dimensions and weight?
A7: Dimensions are 130 x 40 x 110 mm, weight approx. 0.308 kg.
Q8: What system is this module compatible with?
A8: GE Fanuc Series 90-30 PLC systems.
