Technical Specifications
| Item | Specification |
|---|---|

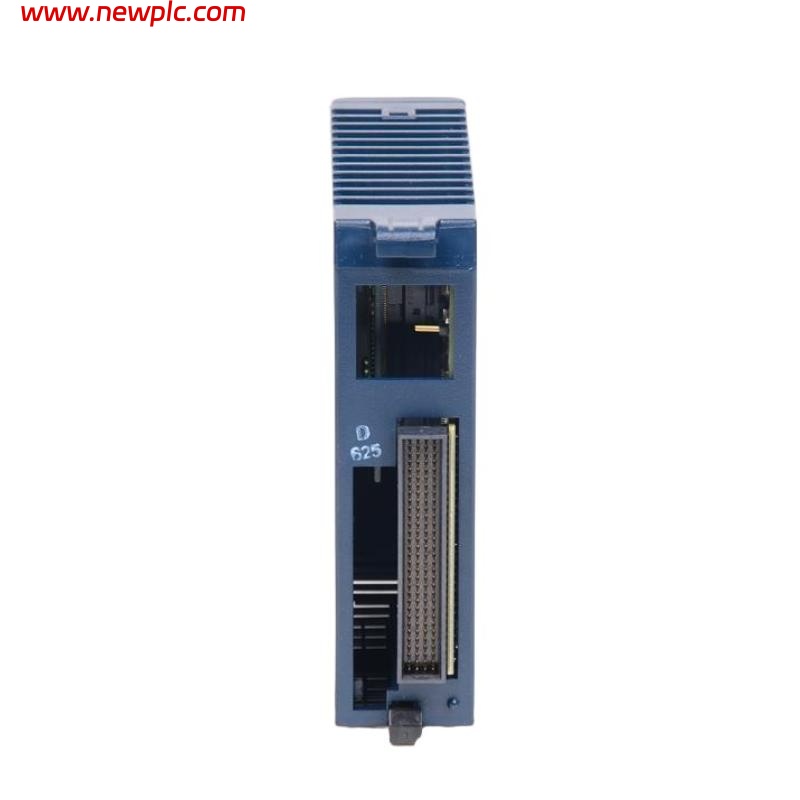

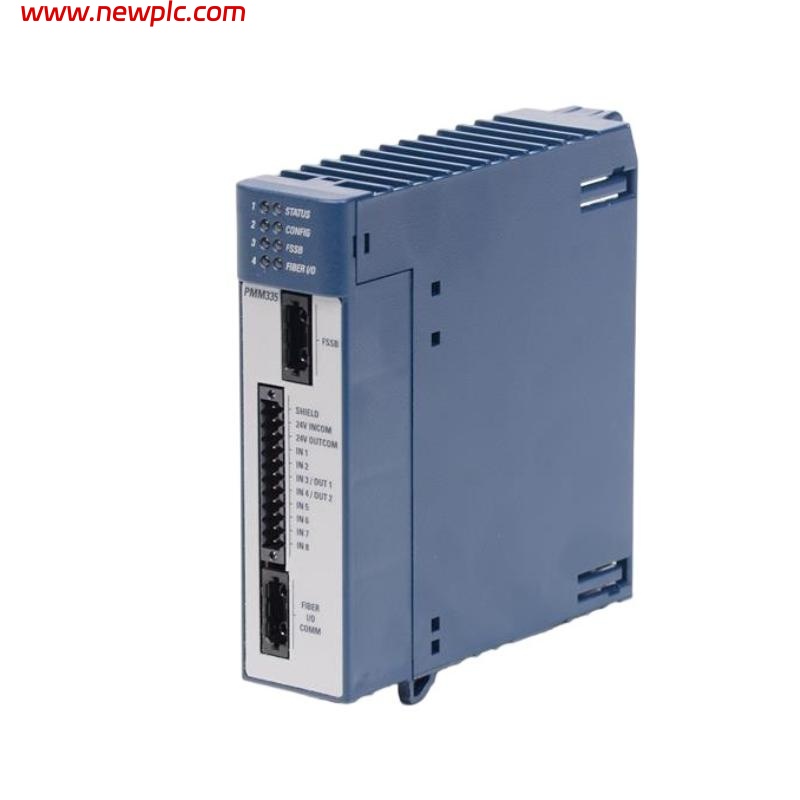

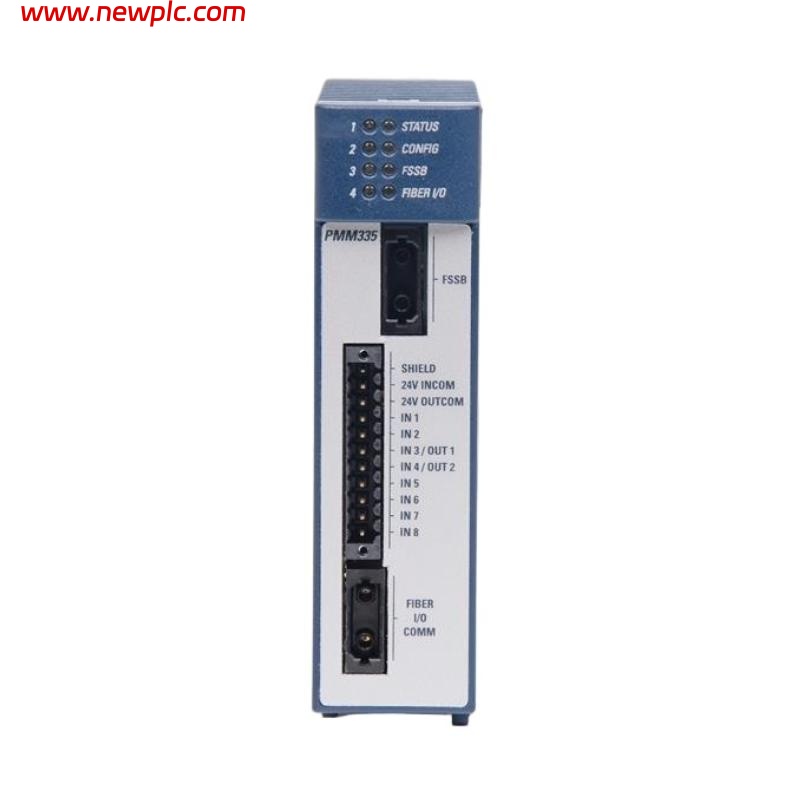

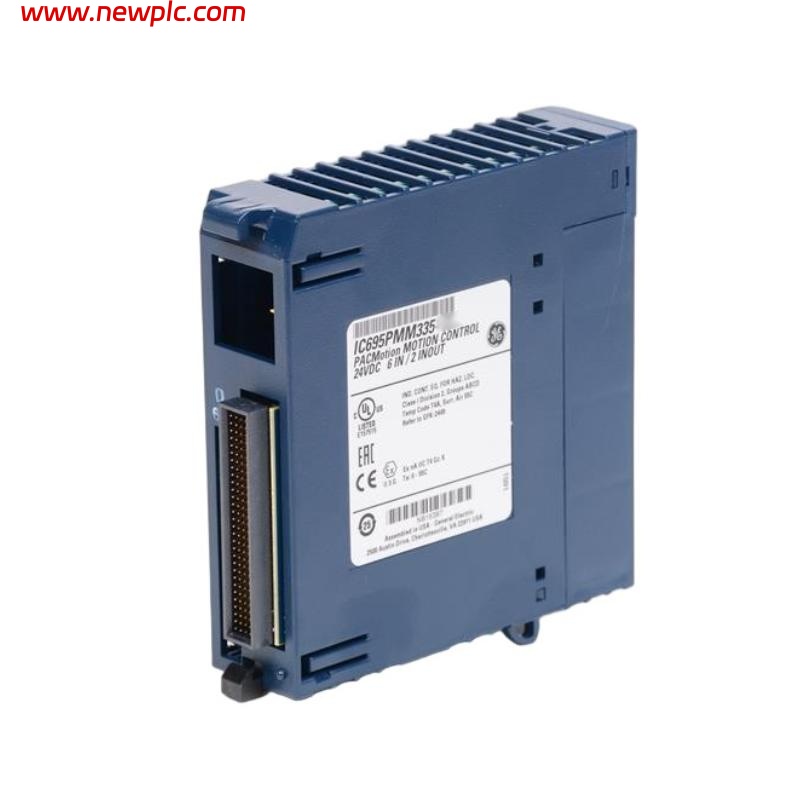

| Model | GE Fanuc IC695PMM335 |
| Product Type | Multi-axis Motion Controller Module |
| Compatible Series | PACSystems RX3i |
| Number of Axes Supported | Up to 4 axes of motion control |
| Communication Interface | PCI-style backplane bus |
| Control Type | Position, velocity, and torque control |
| Motion Profiles | Linear, circular, helical interpolation |
| Input Voltage | 3.3 V DC and 5 V DC from the backplane |
| Programming Language | Motion programming via PAC Machine Edition software |
| Feedback Devices Supported | Quadrature encoders, SSI absolute encoders |
| Maximum Pulse Rate | Up to 1 MHz per axis |
| Environmental Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 95% non-condensing |
| Cooling Method | Natural convection |
| Dimensions | 185 × 120 × 45 mm |
| Weight | 0.7 kg |
FAQ
FAQ
Q1: What is the main function of the GE Fanuc IC695PMM335 module?
A1: It provides advanced motion control for up to four axes, supporting precise control of servo and stepper motors.
Q2: Which GE platform is the IC695PMM335 compatible with?
A2: It is compatible with the GE Fanuc PACSystems RX3i series.
Q3: What type of feedback devices does the module support?
A3: It supports both quadrature and SSI absolute encoders for position feedback.
Q4: Can this module perform multi-axis interpolation?
A4: Yes, it supports linear, circular, and helical interpolation for coordinated motion.
Q5: How is the module powered?
A5: It is powered directly from the RX3i backplane through 3.3 V DC and 5 V DC supply lines.
Q6: What software is required to program the IC695PMM335?
A6: Motion control functions are programmed using GE’s PAC Machine Edition software.
Q7: What is the typical operating temperature range?
A7: The module operates within a range of 0°C to 60°C.
Q8: How much does the IC695PMM335 weigh?
A8: It weighs approximately 0.7 kg.
