Technical Specifications
| Item | Specification |
|---|---|

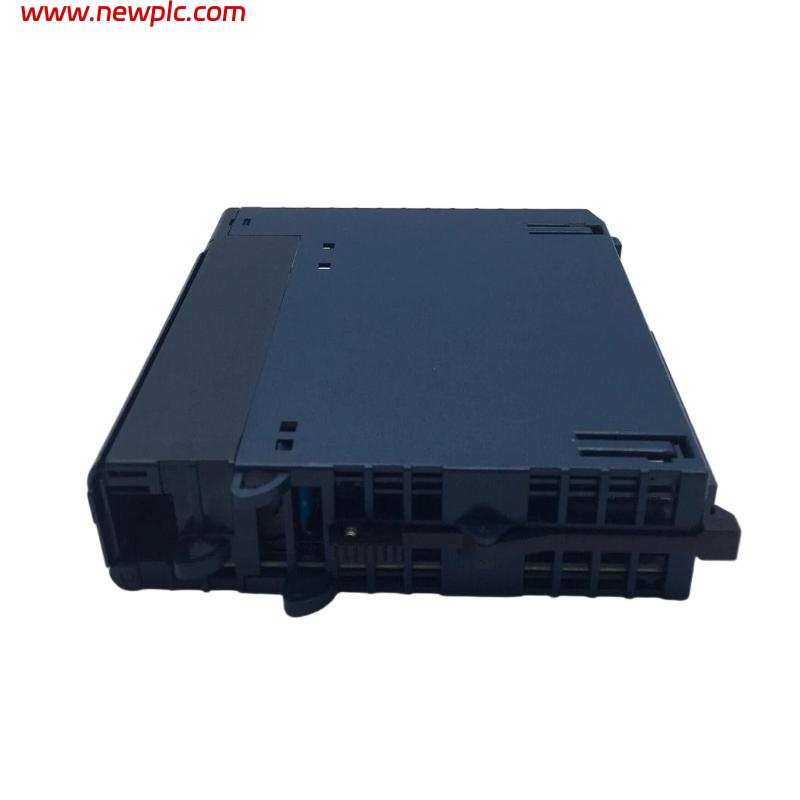

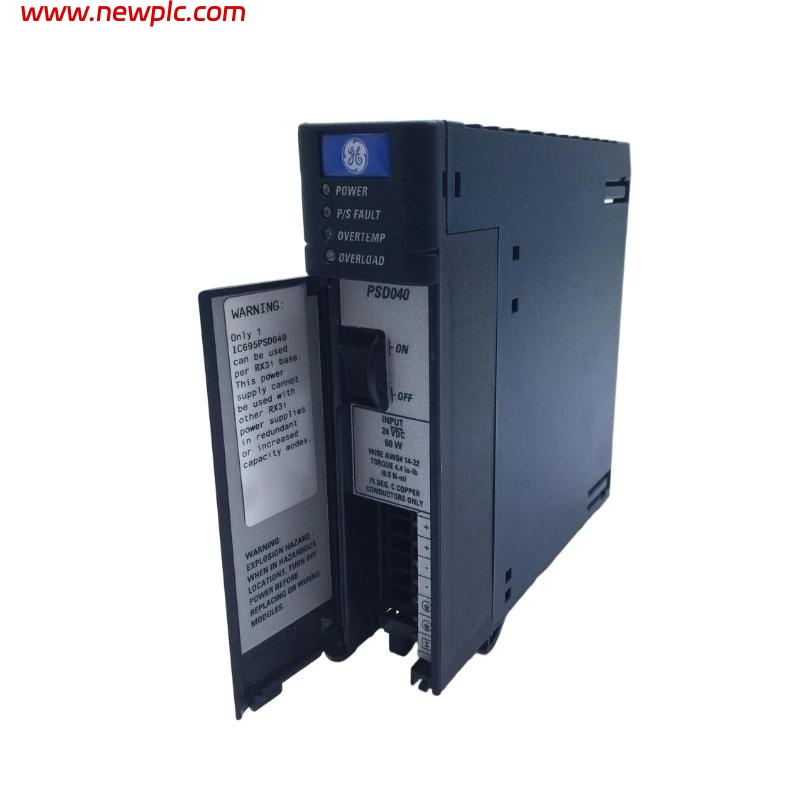

| Model | GE Fanuc IC695PSD040 |
| Product Type | RX3i Universal Backplane Power Supply Module |
| Compatible System | PACSystems RX3i |
| Nominal Input Voltage | 24 V DC |
| Input Voltage Range (Startup) | 18 V DC to 30 V DC |
| Input Voltage Range (Operation) | 12 V DC to 30 V DC |
| Maximum Input Power | 60 W |
| Maximum Output Power | 40 W |
| Output Voltage 1 | 5.1 V DC |
| Output Current 1 | 0–6 A |
| Output Voltage 2 | 3.3 V DC |
| Output Current 2 | 0–9 A |
| Ripple/Noise (All Outputs) | ≤ 50 mV |
| Inrush Current | 4 A max (100 ms duration) |
| Ride-through Time | 10 ms |
| Isolation | None (input to backplane) |
| Slot Occupancy | 1 slot in RX3i universal backplane |
| Redundancy/Capacity Expansion | Not supported |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to +85°C (-40°F to 185°F) |
| Humidity | 5% to 95% non-condensing |
| Cooling Method | Natural convection |
| Terminal Type | Accepts 14–22 AWG wire, terminal current 6 A |
| Dimensions | 34 x 145 x 140 mm |
| Weight | 1.129 kg |
FAQ
FAQ
Q1: What is the main function of the GE Fanuc IC695PSD040 module?
A1: The IC695PSD040 serves as a 24 V DC power supply that provides regulated 5.1 V and 3.3 V outputs to the RX3i universal backplane and its installed modules.
Q2: What is the operating voltage range for this power supply?
A2: The module operates within 12 V DC to 30 V DC and requires at least 18 V DC to start up.
Q3: How much output power can the IC695PSD040 provide?
A3: It provides a maximum total output power of 40 watts.
Q4: Does this power supply support redundant operation?
A4: No, the IC695PSD040 does not support redundancy or increased capacity configurations.
Q5: How many slots does the module occupy in the RX3i rack?
A5: It occupies one slot in the RX3i universal backplane.
Q6: What happens if input power is momentarily lost?
A6: The module provides a 10 ms ride-through time to maintain output voltage during short power interruptions.
Q7: What is the recommended operating temperature range?
A7: The recommended operating temperature range is from 0°C to 60°C.
Q8: How much does the module weigh?
A8: The module weighs approximately 1.129 kg.
