Technical Specifications
| Item | Specification |
|---|---|

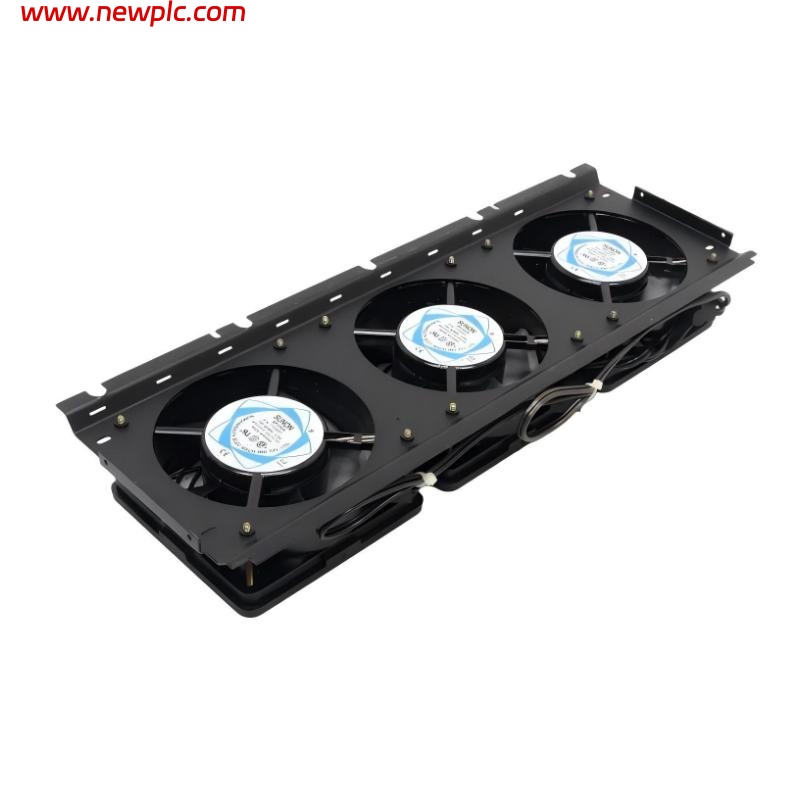

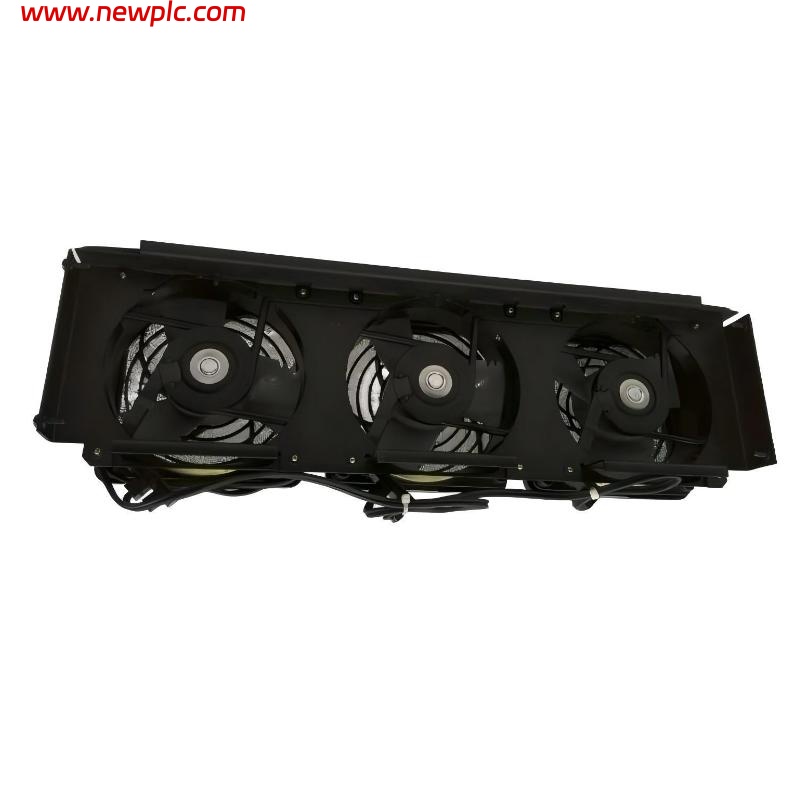

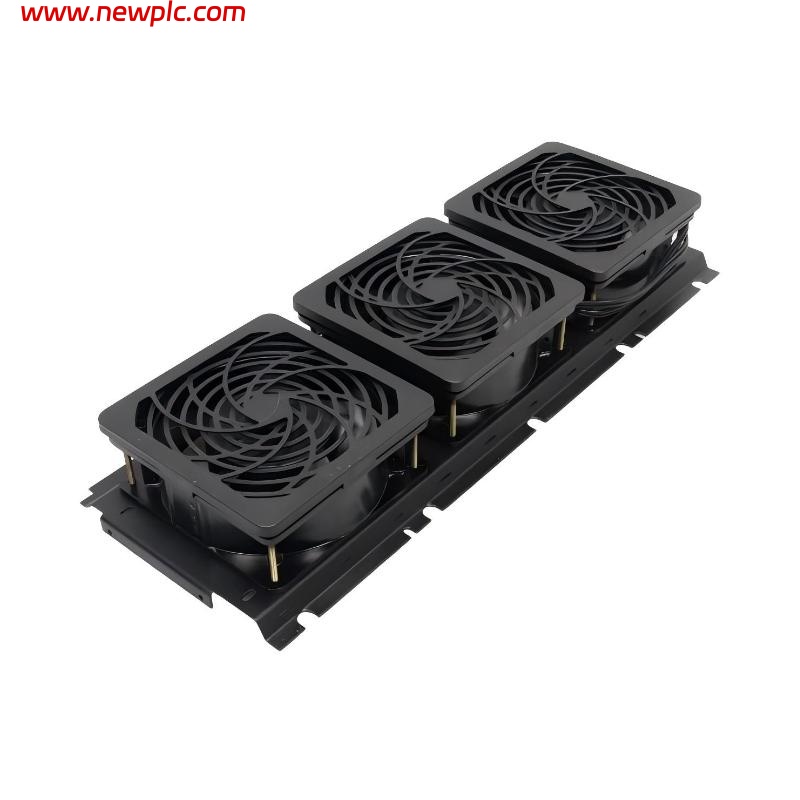

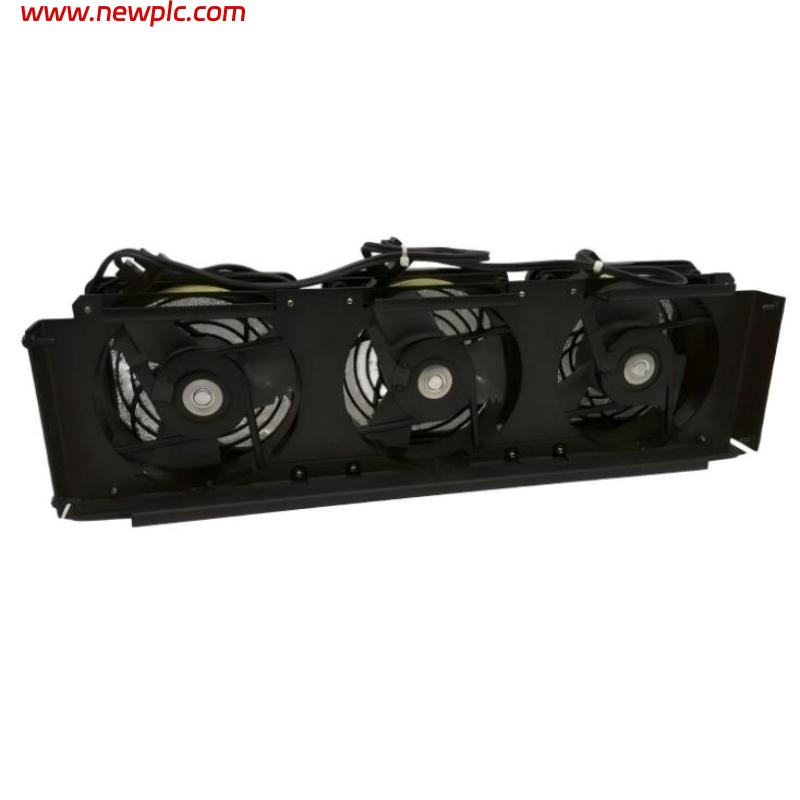

| Model | GE Fanuc IC697ACC721 |
| Product Type | Fan Assembly for PLC Modules |
| Compatible System | PACSystems RX3i, 90-70 Series PLC Racks |
| Function | Provides forced-air cooling to maintain optimal temperature for PLC modules |
| Fan Type | DC Brushless Axial Fan |
| Voltage Rating | 24 V DC |
| Current Rating | 0.25 A |
| Airflow | 20 CFM (Cubic Feet per Minute) |
| Noise Level | ≤ 35 dB(A) |
| Bearing Type | Sleeve Bearing |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 95% non-condensing |
| Mounting Type | Rack-mounted, compatible with RX3i/90-70 fan slots |
| Dimensions | 331 × 150 × 60 mm |
| Weight | 1.36 kg |
FAQ
FAQ
Q1: What is the purpose of the IC697ACC721 fan assembly?
A1: It provides forced-air cooling to PACSystems RX3i and 90-70 PLC racks to maintain proper operating temperatures and prevent overheating.
Q2: What type of fan does this assembly use?
A2: It uses a 24 V DC brushless axial fan.
Q3: Is this fan assembly compatible with all PLC racks?
A3: It is compatible with RX3i and legacy 90-70 series PLC racks that have designated fan slots.
Q4: What is the airflow rating of the fan?
A4: The fan provides approximately 20 CFM of airflow.
Q5: What is the noise level of the fan?
A5: The noise level is ≤ 35 dB(A) during normal operation.
Q6: What is the operating temperature range?
A6: The fan operates from 0°C to 60°C.
Q7: How is the fan mounted?
A7: The fan assembly mounts directly into the fan slot of the RX3i or 90-70 PLC rack.
Q8: What are the dimensions and weight of the fan assembly?
A8: Dimensions are 331 × 150 × 60 mm, and it weighs approximately 1.36 kg.
