Technical Specifications
| Item | Specification |
|---|---|

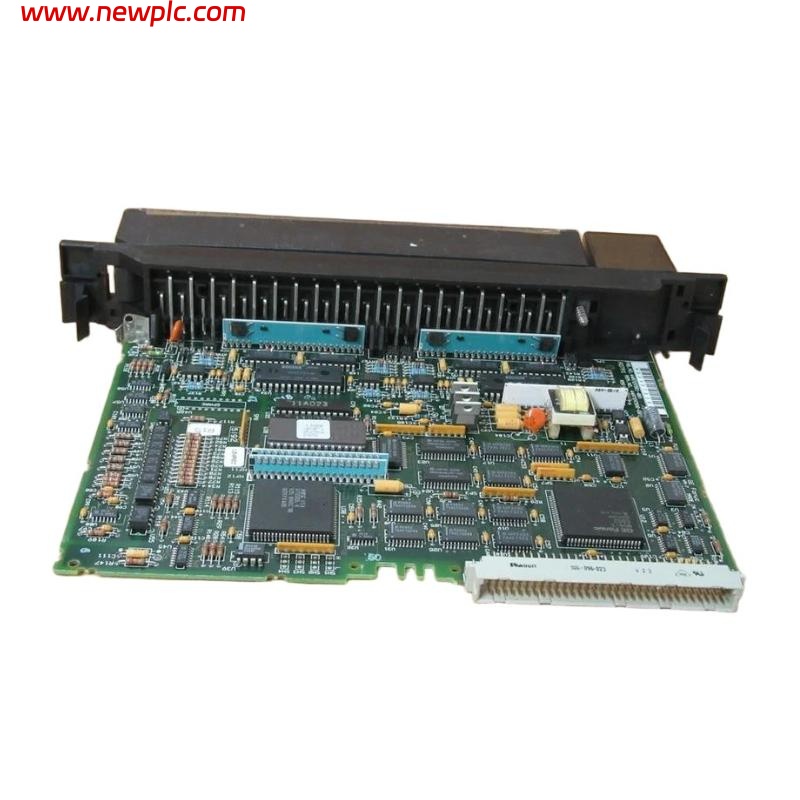

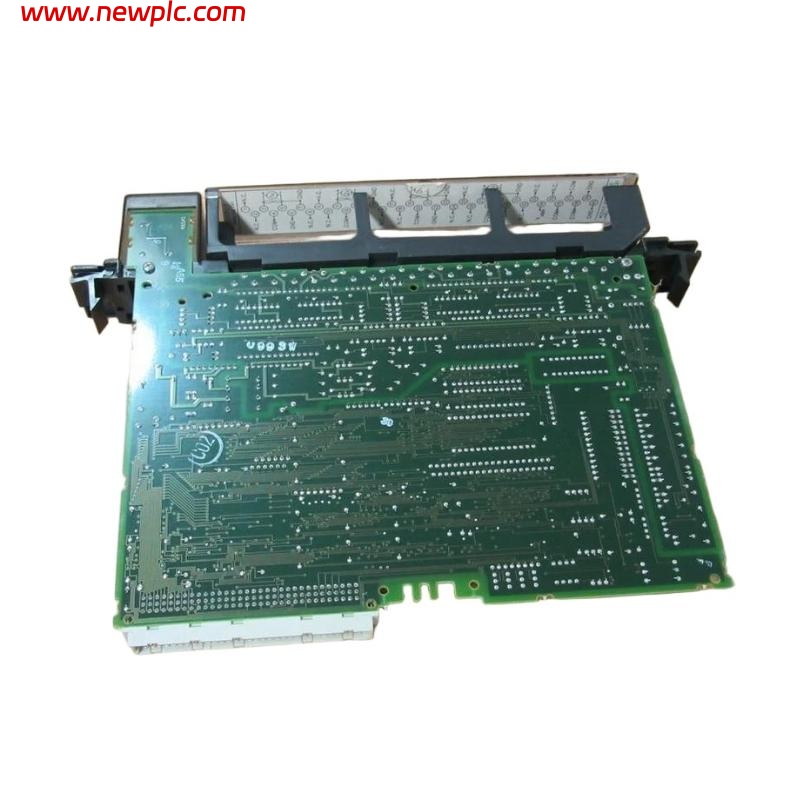

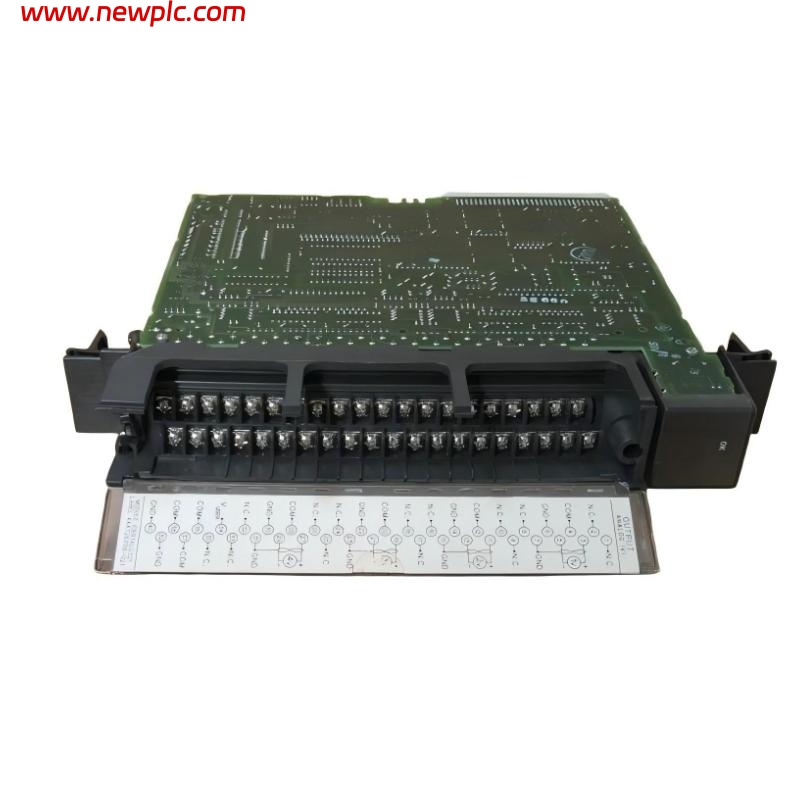

| Model | GE Fanuc IC697ALG321 |
| Product Type | Analog Input Module |
| Series | GE Fanuc Series 90-70 |
| Channels | 4 independent voltage input channels |
| Input Range | ±10 V DC |
| Resolution | 16 bits |
| Accuracy | ±0.1% of full scale |
| Conversion Rate | 2 milliseconds per channel |
| Input Impedance | 250 Ω |
| Power Supply | 5 V DC from backplane |
| Power Consumption | 112 mA at +5 V |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5%–95%, non-condensing |
| Dimensions | 138 × 67 × 25 mm |
| Weight | 0.33 kg |
FAQ
FAQ
Q1: What is the purpose of the IC697ALG321 module?
A1: It converts analog voltage signals into digital signals for processing by GE Fanuc Series 90-70 PLCs.
Q2: How many input channels does the module have?
A2: The module has 4 independent voltage input channels.
Q3: What is the input voltage range?
A3: The input voltage range is ±10 V DC.
Q4: What is the resolution of the module?
A4: The module has a 16-bit resolution.
Q5: What is the accuracy of the module?
A5: The accuracy is ±0.1% of full scale.
Q6: How fast can the module convert analog signals?
A6: The conversion rate is 2 milliseconds per channel.
Q7: How is the module powered?
A7: The module is powered by 5 V DC supplied from the PLC backplane.
Q8: What are the physical dimensions and weight of the module?
A8: The dimensions are 138 × 67 × 25 mm, and the weight is approximately 0.33 kg.
