Technical Specifications
| Item | Specification |
|---|---|

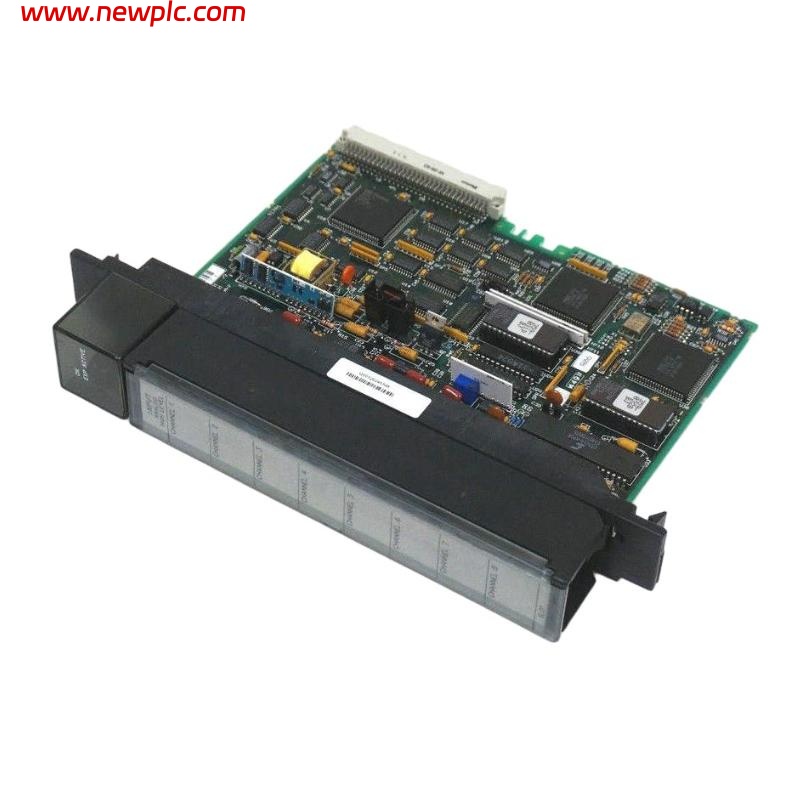

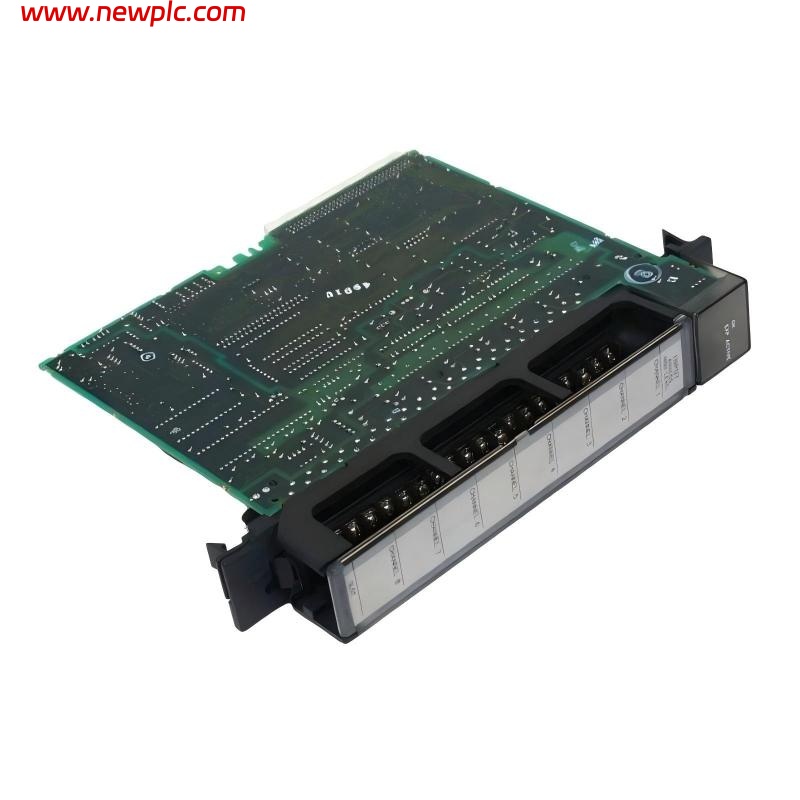

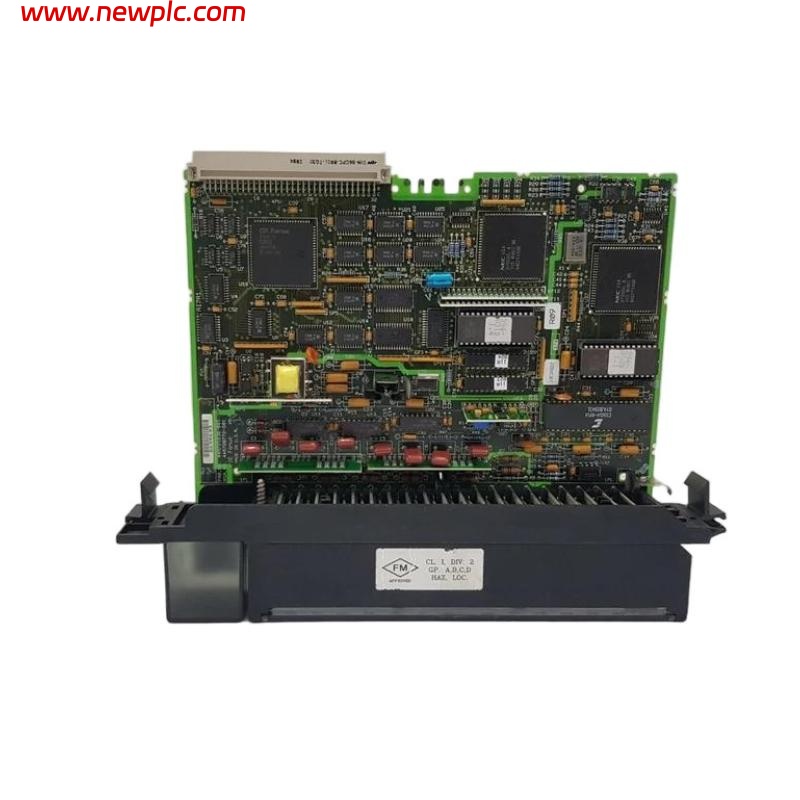

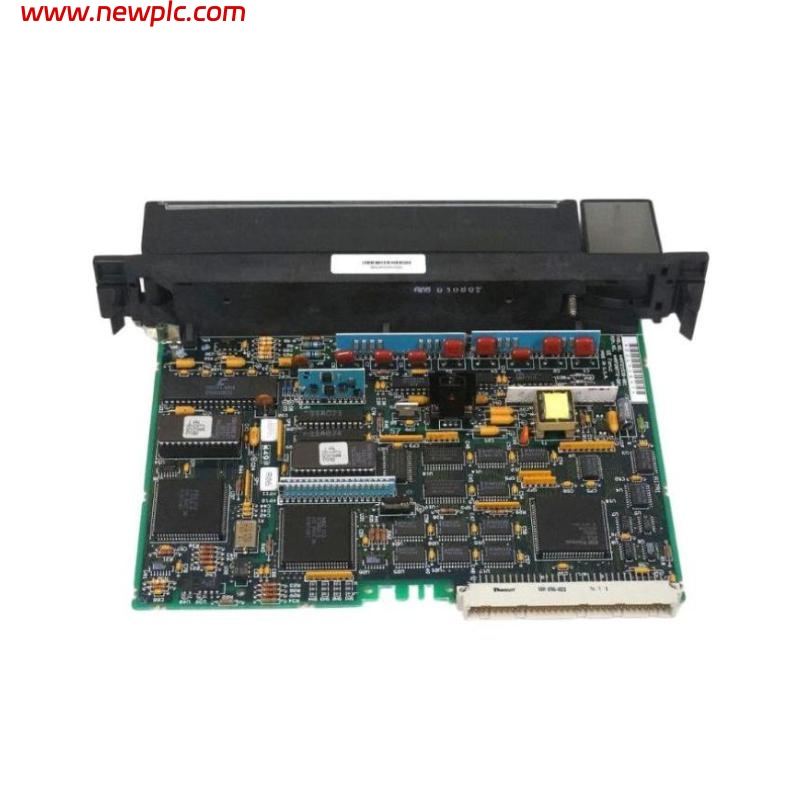

| Model | GE Fanuc IC697ALG230 |
| Product Type | Analog Input Basic Converter Module |
| Series | GE Fanuc IC697 Series |
| Function | Converts analog input signals to digital signals for PLC processing |
| Input Channels | 4 differential analog inputs |
| Input Range | ±10 V, ±5 V, 0–20 mA, 4–20 mA |
| Resolution | 12-bit |
| Accuracy | ±0.1% of full scale |
| Input Impedance | Voltage: 100 kΩ; Current: 50 Ω |
| Conversion Time | 10 ms per channel |
| Isolation | Channel-to-channel and channel-to-backplane isolation |
| Communication Interface | Backplane interface to IC697 PLC CPU |
| Power Supply | Supplied by backplane (5 V DC) |
| Power Consumption | 1.5 W |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5%–95%, non-condensing |
| Dimensions | 138 × 70 × 25 mm |
| Weight | 0.8 kg |
FAQ
FAQ
Q1: What is the purpose of the IC697ALG230 module?
A1: It converts analog input signals into digital signals for processing by GE Fanuc IC697 PLCs.
Q2: How many analog input channels does it support?
A2: The module supports 4 differential analog input channels.
Q3: What types of input signals are supported?
A3: Supports ±10 V, ±5 V voltage inputs and 0–20 mA, 4–20 mA current inputs.
Q4: What is the resolution and accuracy of the module?
A4: 12-bit resolution with ±0.1% full-scale accuracy.
Q5: How fast can the module convert analog signals?
A5: Conversion time is 10 ms per channel.
Q6: How is the module powered?
A6: Powered directly from the PLC backplane (5 V DC).
Q7: What are its physical dimensions and weight?
A7: Dimensions are 138 × 70 × 25 mm, weight approximately 0.8 kg.
Q8: What is the operating temperature range?
A8: Operates from 0°C to +60°C, with storage temperature -40°C to +85°C.
