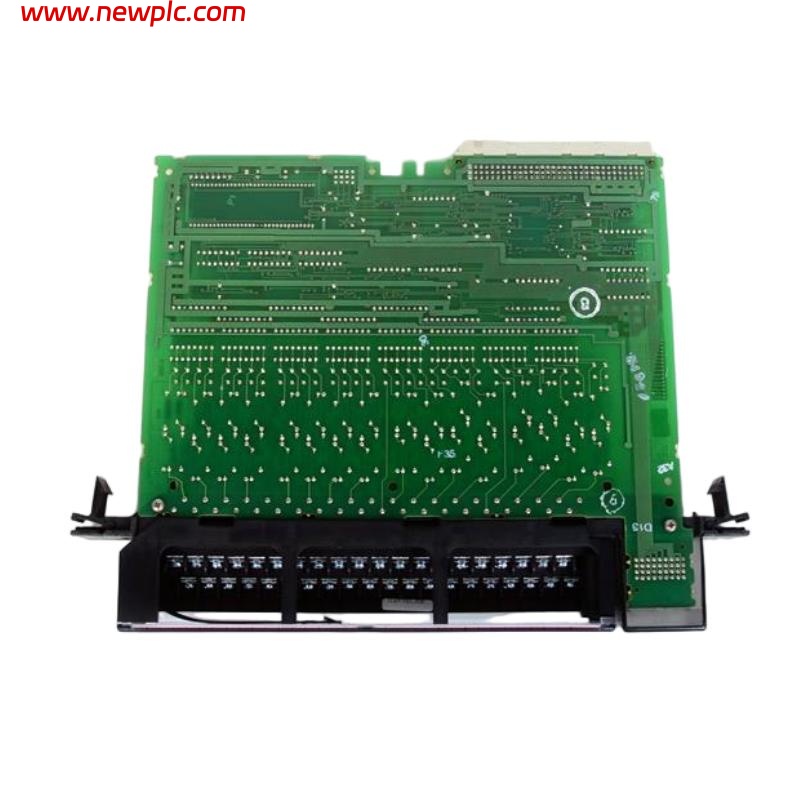

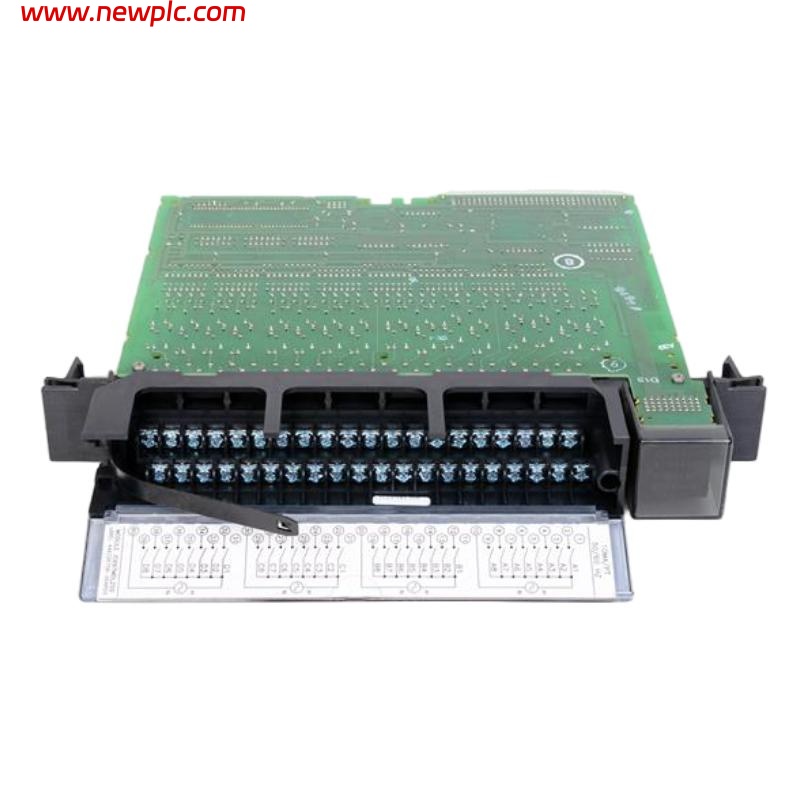

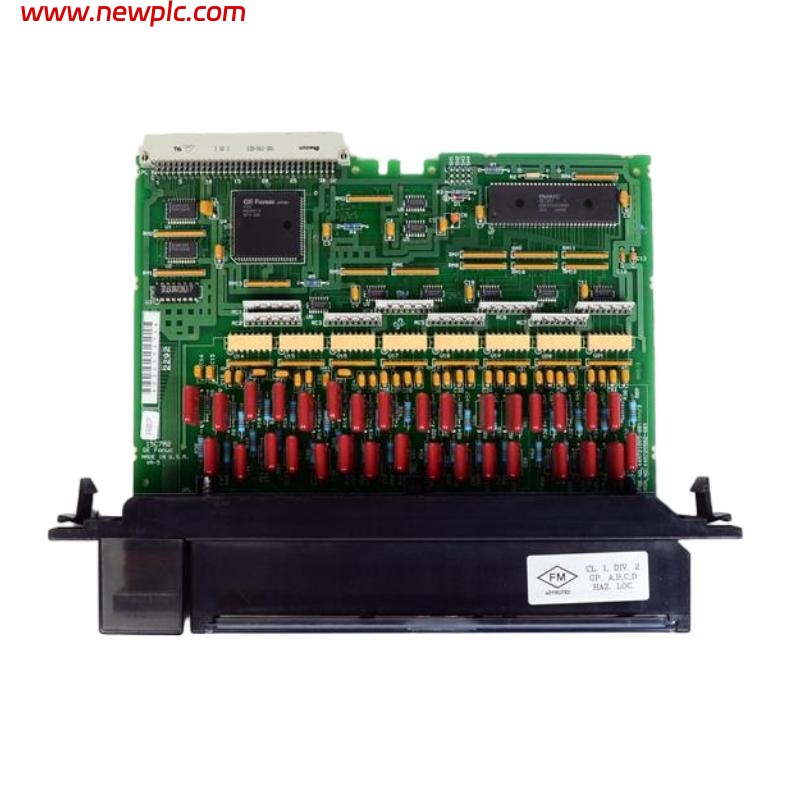

GE Fanuc IC697MDL350 Discrete Output Module

FAQ

Q1: What is the main function of the IC697MDL350 module?
A1: It outputs discrete control signals from the PLC to field devices such as relays, contactors, and indicator lights.

Q2: How many output points does this module have?
A2: The module provides 32 independent discrete output channels.

Q3: What are the output voltage and current specifications?
A3: The output voltage is 24 VDC, and each output point can handle up to 0.5 A.

Q4: Does the module provide status indication?
A4: Yes, each output point has an LED indicator for real-time status monitoring.

Q5: How does the module connect to the PLC system?
A5: It communicates via the IC697 series backplane bus without additional wiring.

Q6: What is the mounting method for the module?
A6: The module is installed in an IC697 series rack slot, allowing easy replacement and maintenance.

Q7: What are the operating temperature and humidity requirements?
A7: The module operates from 0 to +60°C with up to 95% non-condensing humidity.

Q8: What are the module’s dimensions and weight?
A8: The dimensions are 200 × 45 × 145 mm, and the weight is 0.34 kg.

Discrete Output Module GE Fanuc IC697MDL350
