Technical Specifications
| Item | Description |
|---|---|

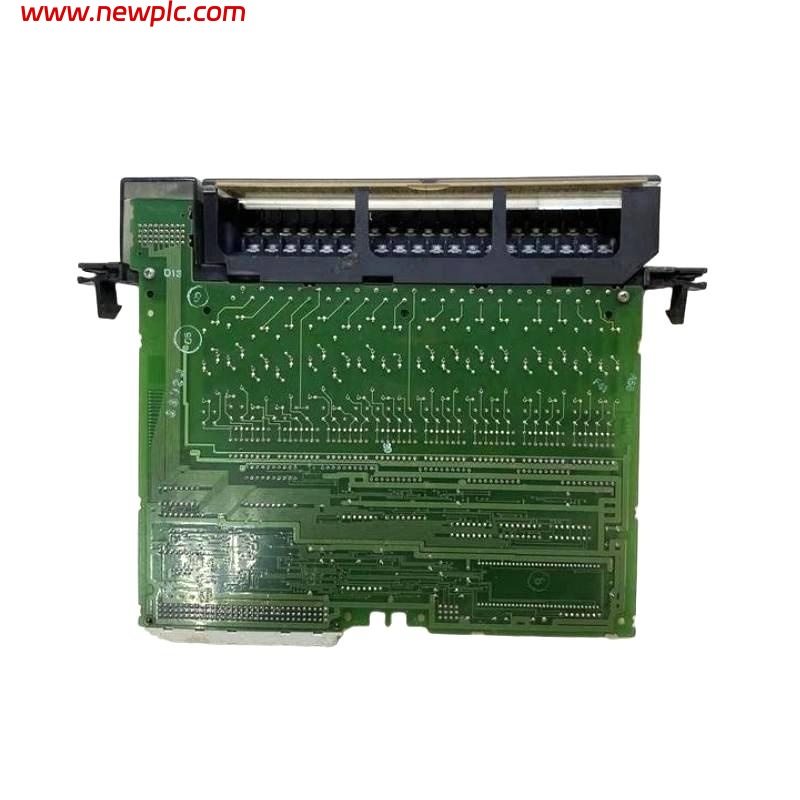

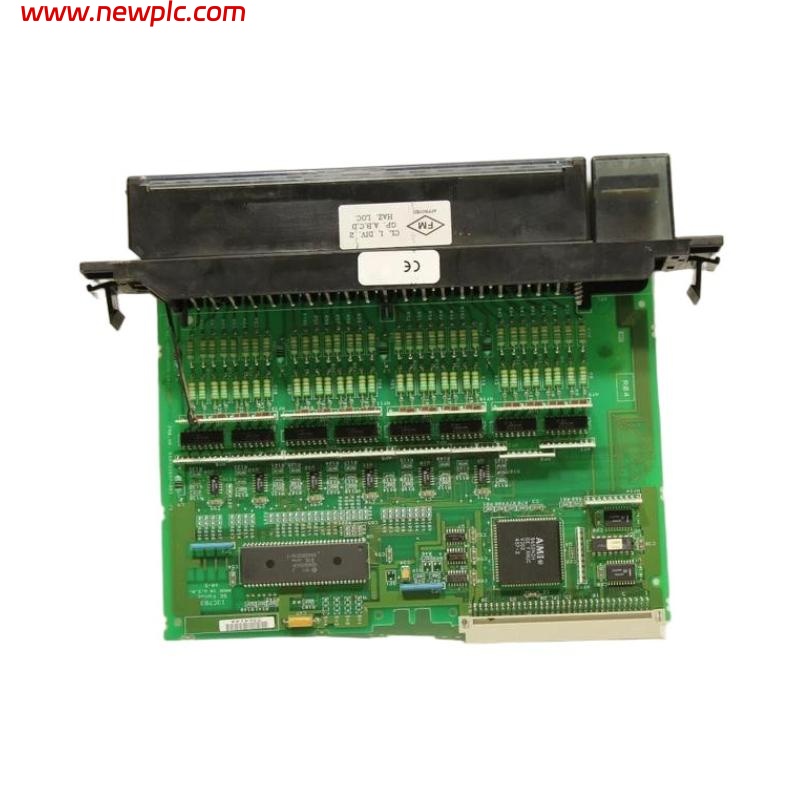

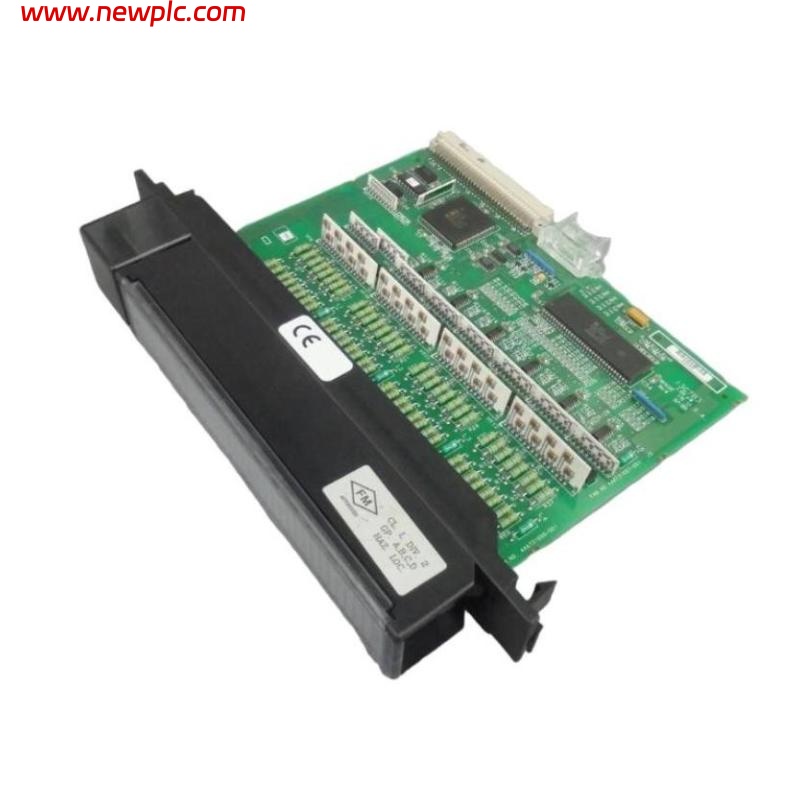

| Product Name | GE Fanuc IC697MDL653 Discrete Input Module |
| Module Type | Discrete Input Module |
| Input Points | 32 points |
| Input Voltage | 24 VDC positive logic |
| Voltage Range | 0 to 30 VDC |
| Input Current | 7 mA typical |
| Input Delay | 1 ms typical |
| Isolation Voltage | 250 VDC between field and logic ground |
| Indicators | Individual LED for each input point |
| Communication Interface | Via PLC backplane bus |
| Power Consumption | Approx. 130 mA @ 5 VDC |
| Mounting | Installed in IC697 series rack slot |
| Operating Temperature | 0 to +60°C (32 to 140°F) |
| Storage Temperature | -40 to +85°C (-40 to 185°F) |
| Humidity | Up to 95% non-condensing |
| Dimensions | 200 × 40 × 150 mm |
| Weight | 0.75 kg |
FAQ
FAQ
Q1: What is the main function of the IC697MDL653 module?
A1: It detects discrete input signals from field devices such as switches, sensors, and push buttons, and transmits them to the PLC for logic processing.
Q2: How many input points does this module provide?
A2: It provides 32 independent input points.
Q3: What is the input voltage specification?
A3: The operating voltage is 24 VDC with positive logic configuration.
Q4: Does the module provide status indication?
A4: Yes, each input point has an LED indicator for monitoring.
Q5: How does the module communicate with the PLC system?
A5: It communicates via the IC697 series backplane bus without additional wiring.
Q6: What is the module’s response time?
A6: The typical input delay is 1 millisecond, suitable for high-speed logic applications.
Q7: What are the environmental requirements for operation?
A7: It operates at 0 to +60°C and up to 95% non-condensing humidity.
Q8: What are the module’s dimensions and weight?
A8: The dimensions are 200 × 40 × 150 mm, and the weight is approximately 0.75 kg.
