Technical Specifications
| Item | Description |
|---|---|

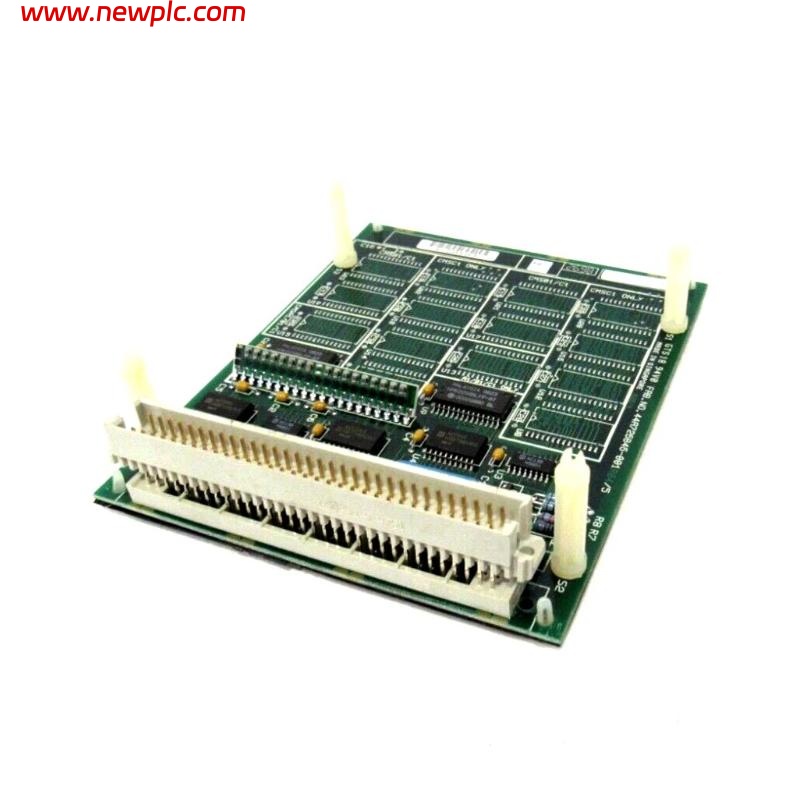

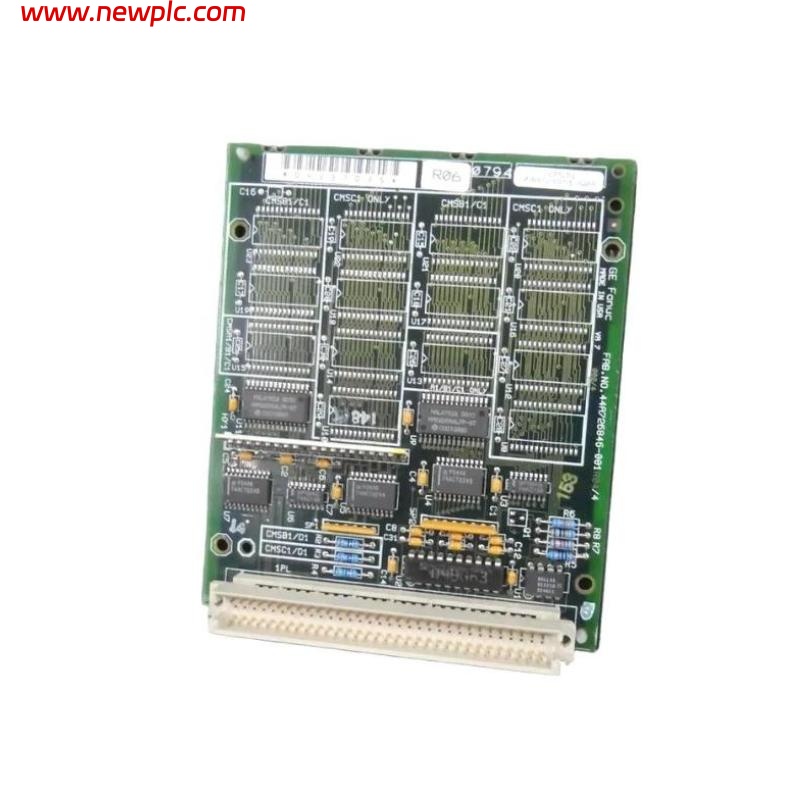

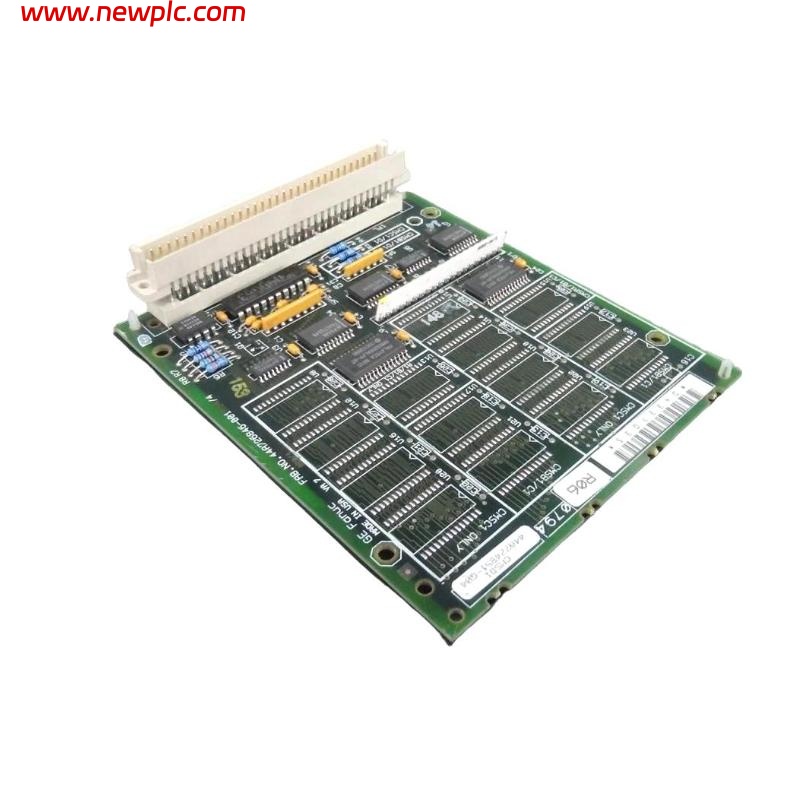

| Product Name | GE Fanuc IC697MEM713 Memory Expander |
| Module Type | Memory Expander Module |
| Compatible Processors | IC697 series PLC controllers |
| Memory Type | Expanded RAM |
| Capacity | 512 KB to 2 MB (depending on configuration) |
| Data Retention | Battery-backed, retains data during power loss |
| Read/Write Speed | Fast read/write, suitable for PLC program execution |
| Communication Interface | Via PLC backplane bus |
| Power Consumption | Approx. 150 mA @ 5 VDC |
| Mounting | Installed in IC697 series rack slot |
| Operating Temperature | 0 to +60°C (32 to 140°F) |
| Storage Temperature | -40 to +85°C (-40 to 185°F) |
| Humidity | Up to 95% non-condensing |
| Dimensions | 120 × 80 × 15 mm |
| Weight | 0.09 kg |
FAQ
FAQ
Q1: What is the main function of the IC697MEM713?
A1: It expands the RAM memory of IC697 series PLC controllers, increasing program capacity and data storage capability.
Q2: Which PLC models are supported?
A2: Compatible with IC697 series PLC controllers, including CPU modules and processors.
Q3: What is the memory capacity?
A3: Configurable from 512 KB up to 2 MB.
Q4: Will data be lost during power failure?
A4: No, the module has battery backup to retain data during power loss.
Q5: How does the module communicate with the PLC system?
A5: It communicates directly with the CPU via the IC697 series backplane bus.
Q6: How is the module installed?
A6: Installed in a designated IC697 series rack slot without additional wiring.
Q7: What are the environmental requirements for operation?
A7: Operating temperature 0 to +60°C, up to 95% non-condensing humidity.
Q8: What are the module’s dimensions and weight?
A8: Dimensions are 120 × 80 × 15 mm, and weight is 0.09 kg.
