Technical Specifications
| Item | Specification |
|---|---|
| Model | IS200DSPXH1DBC |

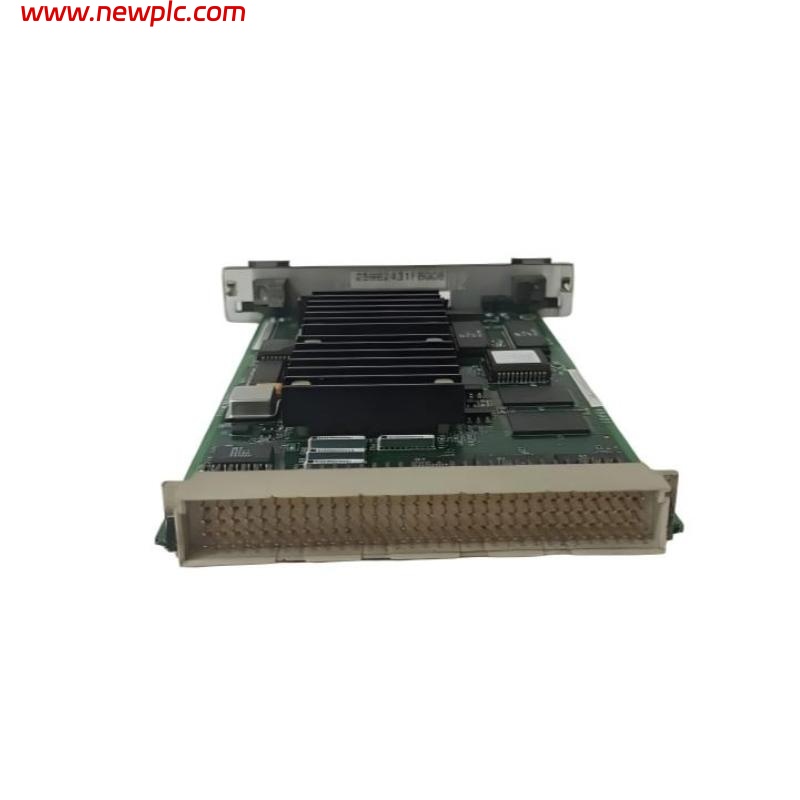

| Product Name | Digital Signal Processor Board |
| Manufacturer | GE Fanuc |
| Product Series | Mark VI Control System |
| Function | Performs high-speed digital signal processing for turbine control, data acquisition, and real-time computation |
| Processor Type | High-performance DSP digital signal processor |
| Clock Speed | 40 MHz to 100 MHz |
| Memory Structure | Includes program memory and data buffer areas |
| Communication Interface | Edge connector to system backplane for control and data exchange |
| Signal Type | Analog and digital signal input/output |
| Operating Voltage | +5 V DC, ±15 V DC |
| Power Consumption | 15 W (typical) |
| Isolation Voltage | 1500 V RMS |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5%–95% RH (non-condensing) |
| Cooling Method | Natural convection |
| Dimensions | 188 × 110 × 30 mm |
| Weight | 0.73 kg |
FAQ
FAQ
Q1: What is the main function of the IS200DSPXH1DBC board?
A1: It performs high-speed signal processing and control computation as a core component of the GE Mark VI system.
Q2: What type of processor does the module use?
A2: It uses a high-performance Digital Signal Processor (DSP) for real-time computation and data analysis.
Q3: What are the operating voltages of the module?
A3: The module operates with +5 V DC and ±15 V DC power supplies.
Q4: What is the typical power consumption?
A4: The typical power consumption is around 15 W.
Q5: What are the module’s dimensions and weight?
A5: Dimensions are 188 × 110 × 30 mm, and weight is approximately 0.73 kg.
Q6: How does the module communicate with the system?
A6: It communicates via an edge connector linked to the system backplane for data and control exchange.
Q7: What is the operating temperature range?
A7: The operating range is from 0°C to +60°C.
Q8: What are the typical applications of this module?
A8: It is used in GE Mark VI turbine systems for real-time control, signal analysis, and feedback logic processing.
