Technical Specifications
| Parameter | Specification |
|---|---|

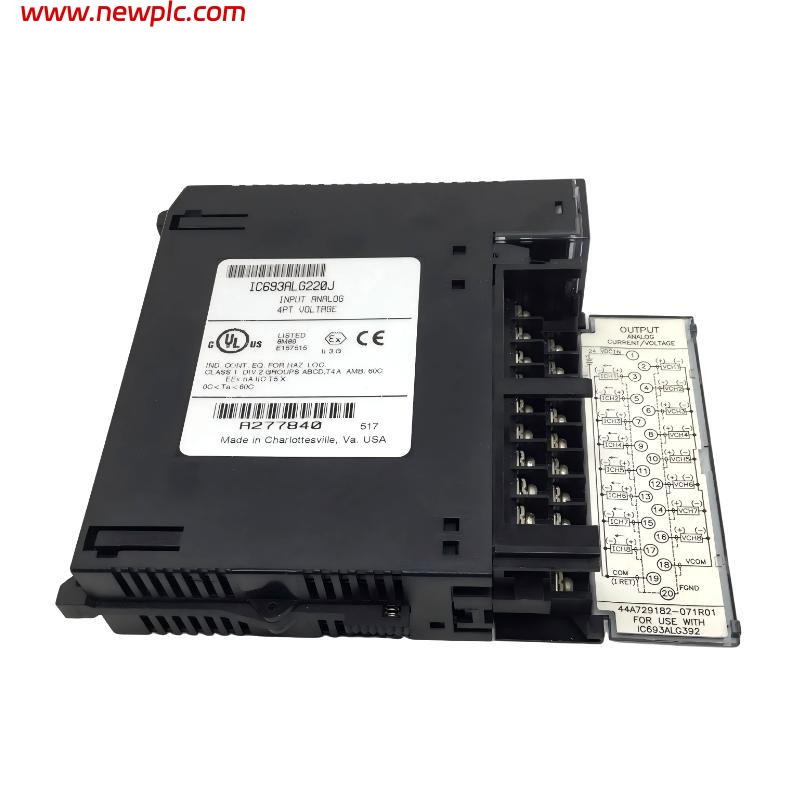

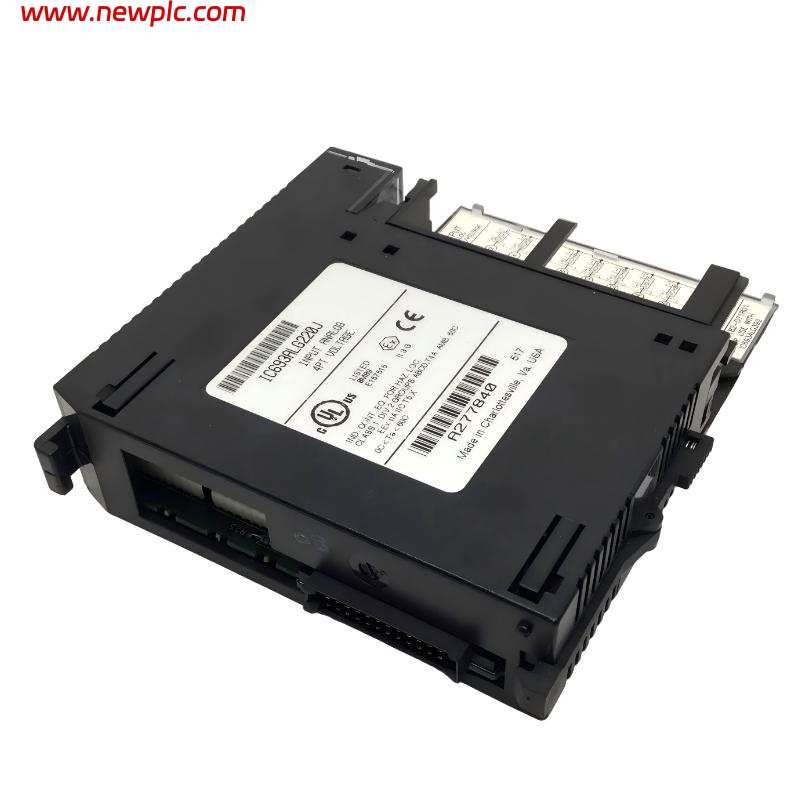

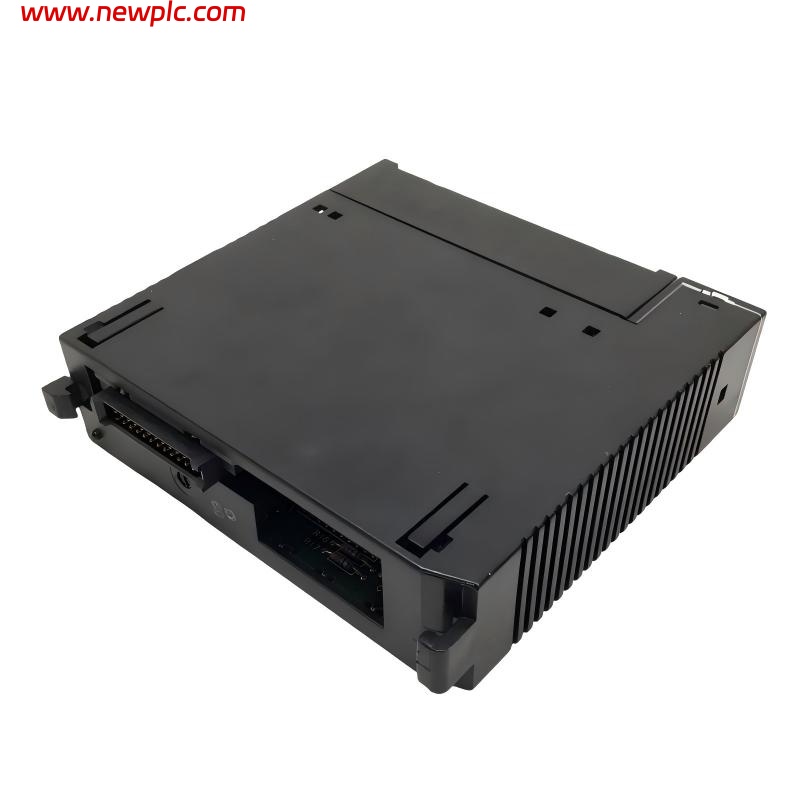

| Model | GE IC693ALG220 |
| Product Type | Analog Input Module |
| Function | Converts analog signals from sensors into digital values for PLC processing |
| Number of Channels | 4 single-ended analog input channels |
| Input Signal Range | 0–10 VDC |
| Input Resolution | 12-bit |
| Input Impedance | 100 kΩ typical |
| Conversion Speed | 5 ms per channel |
| Accuracy | ±0.25% of full scale |
| Power Supply Voltage | 24 VDC nominal |
| Isolation | Channel-to-PLC isolation provided |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Mounting Type | Rack-mounted (Series 90-30 baseplate) |
| Protection Class | IP20 |
| Dimensions | 120 × 40 × 100 mm |
| Weight | 0.25 kg |
| System Compatibility | GE Fanuc Series 90-30 PLC systems |
FAQ
FAQ
Q1: What is the primary purpose of the GE IC693ALG220 module?
A1: The GE IC693ALG220 module is designed to receive analog voltage signals from field sensors and convert them into digital data for use in automation systems controlled by a GE Series 90-30 PLC.
Q2: How many input channels does this module provide?
A2: The module offers four independent single-ended input channels, allowing simultaneous measurement of multiple analog voltage signals.
Q3: What voltage input range does the IC693ALG220 support?
A3: It supports an input range of 0 to 10 volts DC, making it suitable for most standard process measurement applications.
Q4: Does the module provide electrical isolation between the input channels?
A4: The module provides isolation between the field inputs and the PLC backplane, ensuring protection from electrical noise and ground loops.
Q5: How is the accuracy of the analog input maintained?
A5: The IC693ALG220 ensures an accuracy of ±0.25% of full scale through high-quality A/D conversion and stable reference circuitry.
Q6: What type of sensors can be connected to this analog input module?
A6: The module is compatible with various analog signal sources, such as voltage transmitters, position sensors, and process measurement devices.
Q7: Can the module be used in high-temperature environments?
A7: It operates reliably within a temperature range of 0°C to +60°C, suitable for most industrial and control room environments.
Q8: How is the IC693ALG220 module installed in a control system?
A8: It is easily installed on a GE Series 90-30 baseplate and connects directly to the PLC system bus for seamless integration and configuration.
