Technical Specifications
| Parameter | Description |
|---|---|

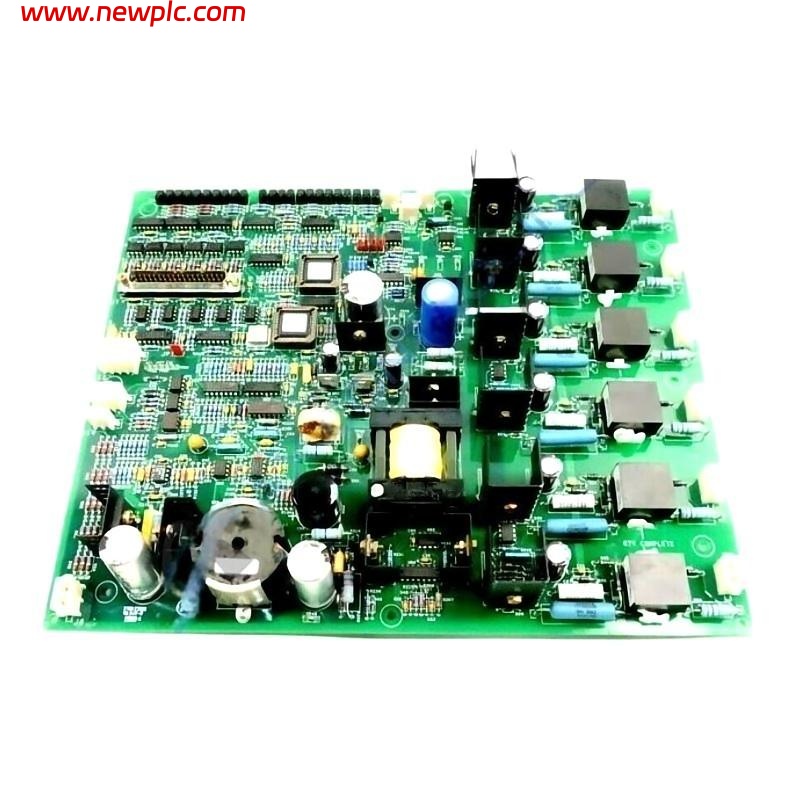

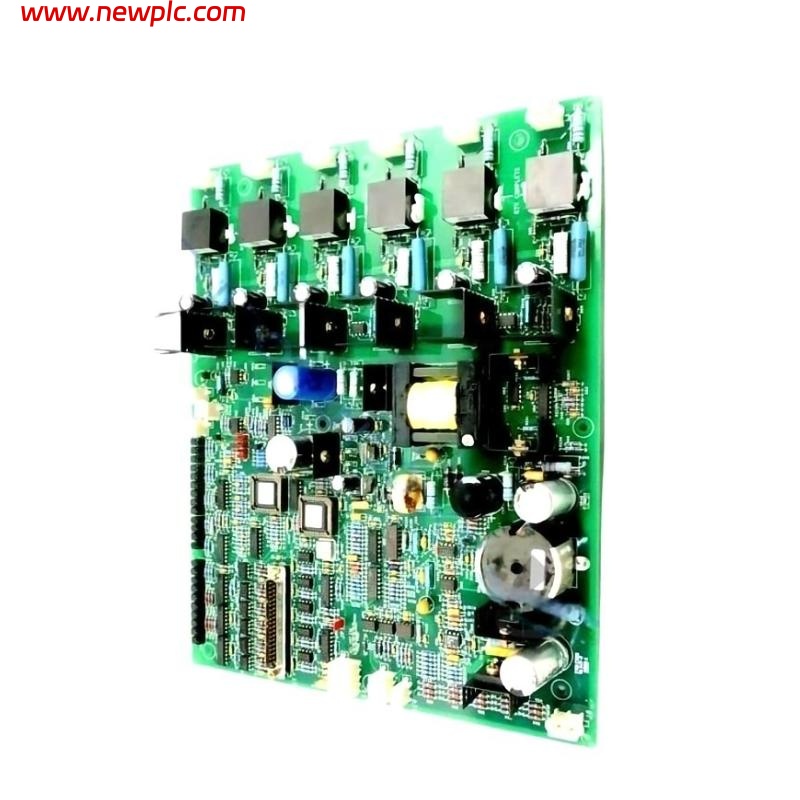

| Model | IS200EGPAG1B |
| Type | Gate Pulse Amplifier Board (Excitation System) |
| Function | Receives gate pulse commands from control logic board and amplifies them to trigger the excitation power bridge (SCR) |
| Target System | GE EX2100 / IS200 Excitation Control Systems |
| SCR Channels | Up to 6 SCRs |
| Input | Gate pulse commands from control logic board |
| Monitoring | SCR conduction current, cooling fan, over-temperature alarm, and fault detection |
| On-board Configuration | 5 jumpers for system-specific configuration |
| Status Indicators | LEDs for power, gate input/output, SCR firing, fan status, temperature, and faults |
| Power Supply | Powered via system power module |
| Mounting | Installed in power conversion cabinet or excitation control cabinet |
| Dimensions | 267 × 216 × 28 mm |
| Weight | 0.862 kg |
FAQ
FAQ
Q1: What is the purpose of IS200EGPAG1B?
A1: To amplify gate pulse signals from the control logic and trigger SCRs, controlling the excitation system’s power bridge.
Q2: How many SCRs can it control?
A2: Up to 6 SCRs.
Q3: Does it have fault monitoring?
A3: Yes, it monitors SCR conduction, cooling fan operation, and provides over-temperature alarm.
Q4: Are there status LEDs on the board?
A4: Yes, for power, gate input/output, SCR output, fan status, temperature, and faults.
Q5: What should be considered when installing?
A5: It must be installed in the power conversion or excitation cabinet and properly connected to the system power module.
Q6: Is it suitable for new systems?
A6: It is a legacy board; compatibility and reliability should be verified before use in modern systems.
Q7: What are the on-board jumpers used for?
A7: They configure system-specific parameters such as gate logic and protection/monitoring settings.
Q8: What happens if SCRs overheat?
A8: Monitoring triggers an alarm or trip to protect the system from damage.
