Technical Specifications
| Parameter | Description |
|---|---|
| Model | IS200EPDMG1A |

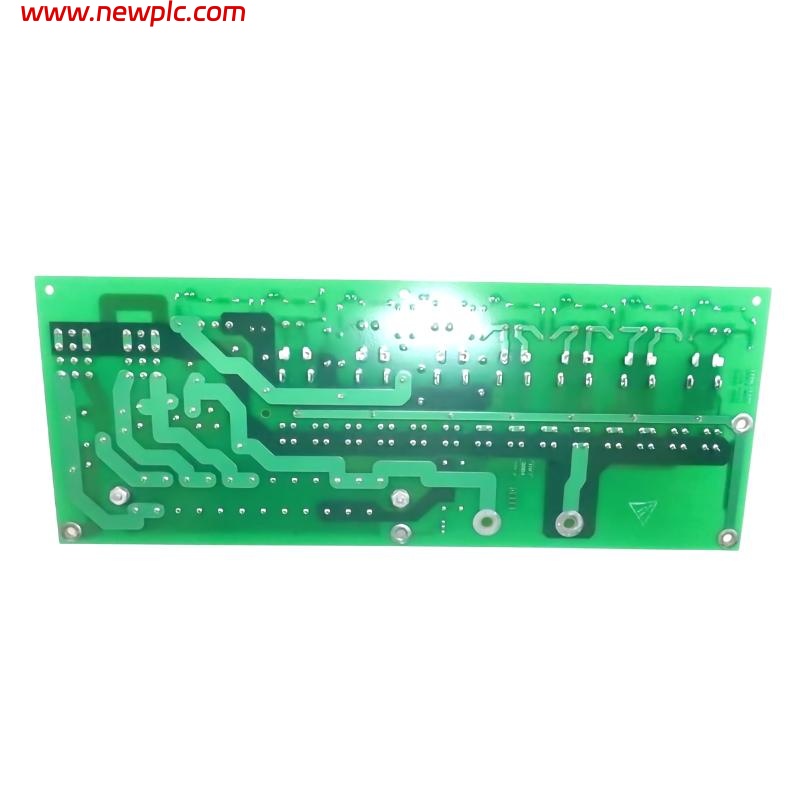

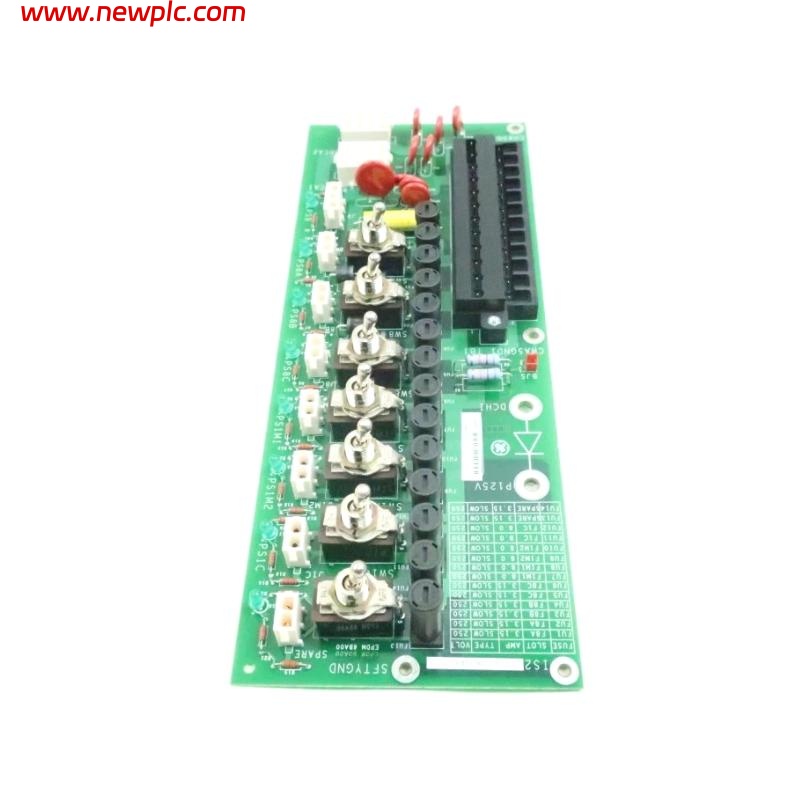

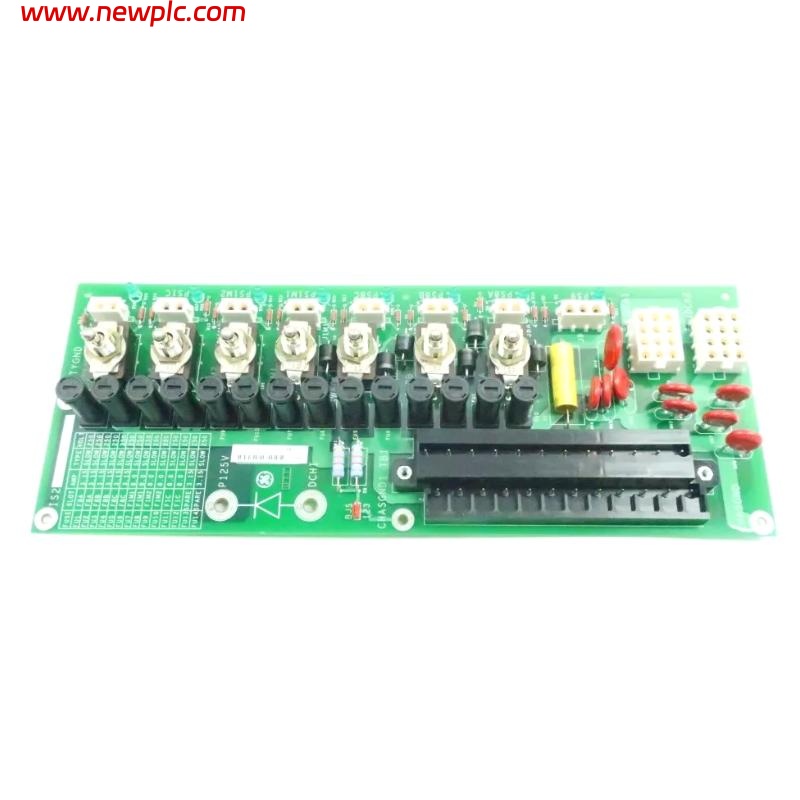

| Type | Exciter Power Distribution Module |
| Function | Distributes and manages DC power within the excitation system, delivering stable power to excitation modules and auxiliary devices |
| Target System | GE EX2100 / IS200 Excitation Control Systems |
| Output Channels | Multiple independent power output channels to supply different modules |
| Input Power | System DC power or external exciter power module input |
| Monitoring | Power output monitoring, overcurrent protection, over-temperature alarm, fault indication |
| Mounting | Installed in excitation control cabinet or power module cabinet |
| Dimensions | 279.4 × 215.9 × 50.8 mm |
| Weight | 0.8 kg |
| Material | High-strength metal and insulating materials for reliable conductivity and heat dissipation |
| Operating Temperature | 0°C – 60°C |
FAQ
FAQ
Q1: What is the purpose of IS200EPDMG1A?
A1: Provides power distribution and management for the excitation system, ensuring stable power delivery to modules and auxiliary devices.
Q2: How many output channels does it support?
A2: Multiple independent output channels, depending on system configuration.
Q3: Does it support overcurrent and over-temperature protection?
A3: Yes, including power output monitoring, overcurrent protection, over-temperature alarm, and fault indication.
Q4: Where is it installed?
A4: Installed in the excitation control cabinet or power module cabinet.
Q5: What is the input power source?
A5: System DC power or external exciter power module.
Q6: What are the dimensions and weight?
A6: Dimensions are 279.4 × 215.9 × 50.8 mm; weight approx. 0.8 kg.
Q7: What material is it made of?
A7: High-strength metal and insulating materials, ensuring good conductivity and heat dissipation.
Q8: Can it be used independently?
A8: No, it must be used in conjunction with other excitation system modules (such as PSU and controllers).
