Technical Specifications
| Item | Specification |
|---|---|
| Model | IS200HFPAG1ADC |

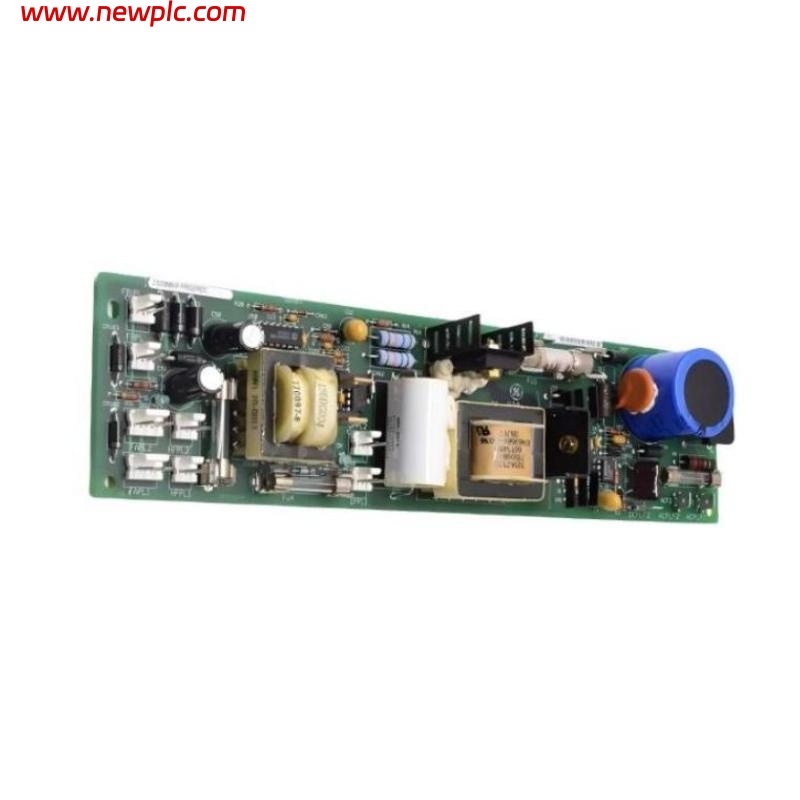

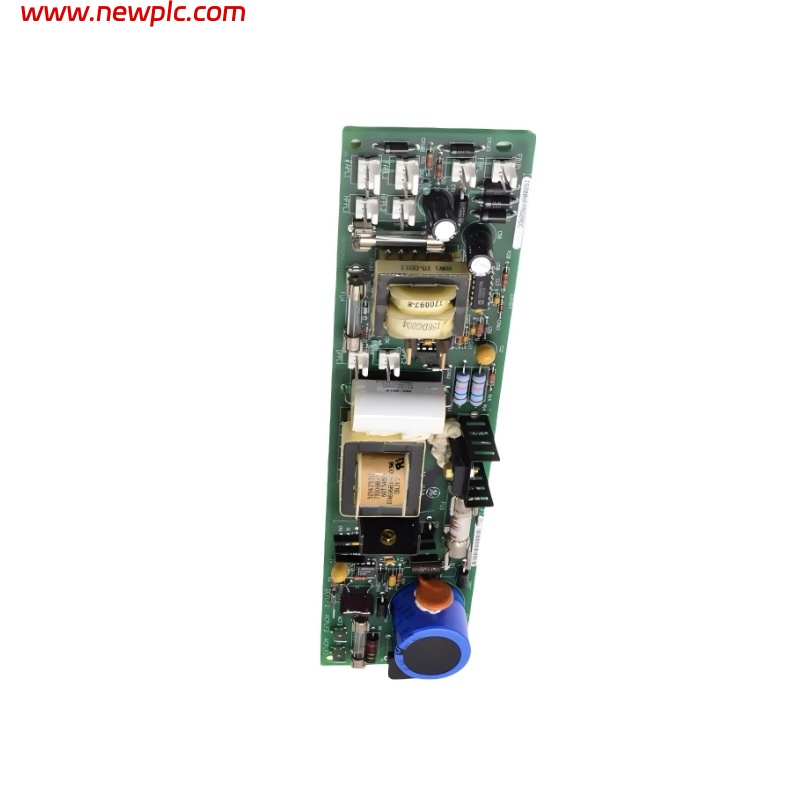

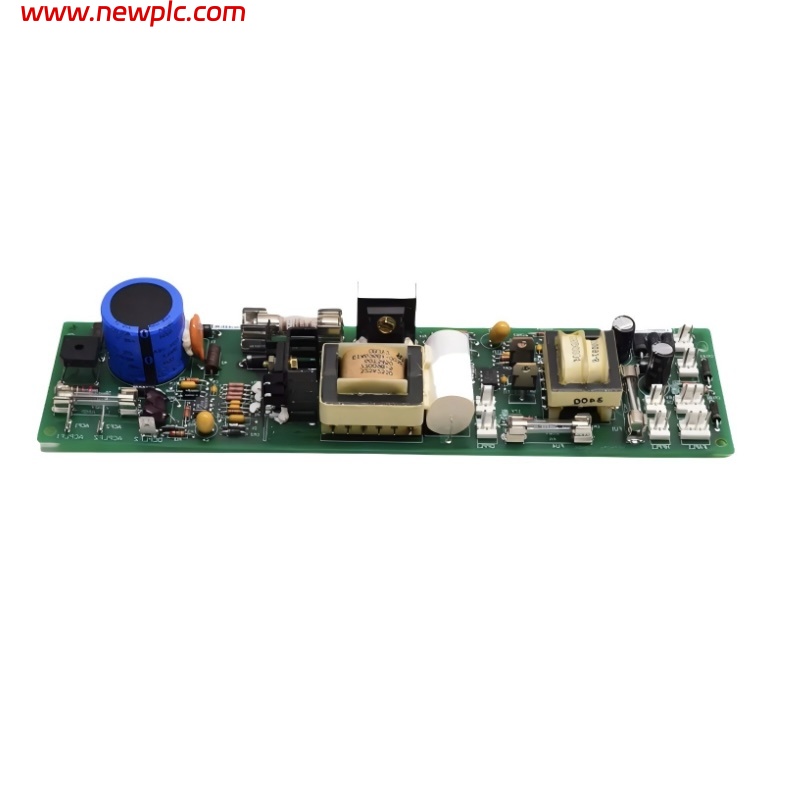

| Product Name | Turbine Control Board |
| Manufacturer | GE Fanuc |
| Product Series | Mark VI Control System |
| Function | Provides power isolation, voltage regulation, and signal conditioning for turbine control applications |
| Input Voltage | 120/240 V AC (selectable) |
| Output Voltage | Multiple low-voltage DC outputs for control logic and signal circuits |
| Power Capacity | 75 W |
| Signal Type | Analog and digital interfaces |
| Communication Interface | Edge connector to backplane |
| Isolation Voltage | 2500 V RMS |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5%–95% RH (non-condensing) |
| Cooling Method | Natural convection |
| Dimensions | 250 × 80 × 25 mm |
| Weight | 0.8 kg |
FAQ
FAQ
Q1: What is the main function of the IS200HFPAG1ADC board?
A1: It provides regulated power, signal isolation, and protection for turbine control systems to ensure stable operation.
Q2: Which system does this board belong to?
A2: It is part of the GE Mark VI turbine control system.
Q3: What are the input and output voltage ranges of the module?
A3: Input is 120/240 V AC; outputs are multiple low-voltage DC supplies for logic and signal control circuits.
Q4: What types of signal interfaces does it support?
A4: It supports both analog and digital signal interfaces for turbine control and monitoring.
Q5: What are the module’s dimensions and weight?
A5: Dimensions are 250 × 80 × 25 mm, and weight is approximately 0.8 kg.
Q6: How is the board installed?
A6: It is rack-mounted and connected to the system backplane via an edge connector.
Q7: What is the module’s operating temperature range?
A7: The board operates reliably from 0°C to +60°C.
Q8: What are the typical applications of this module?
A8: It is used in GE Mark VI turbine systems for power regulation, signal isolation, and protection control.
