Technical Specifications
| Item | Specification |
|---|---|
| Model | IS200EACFG2ABB |

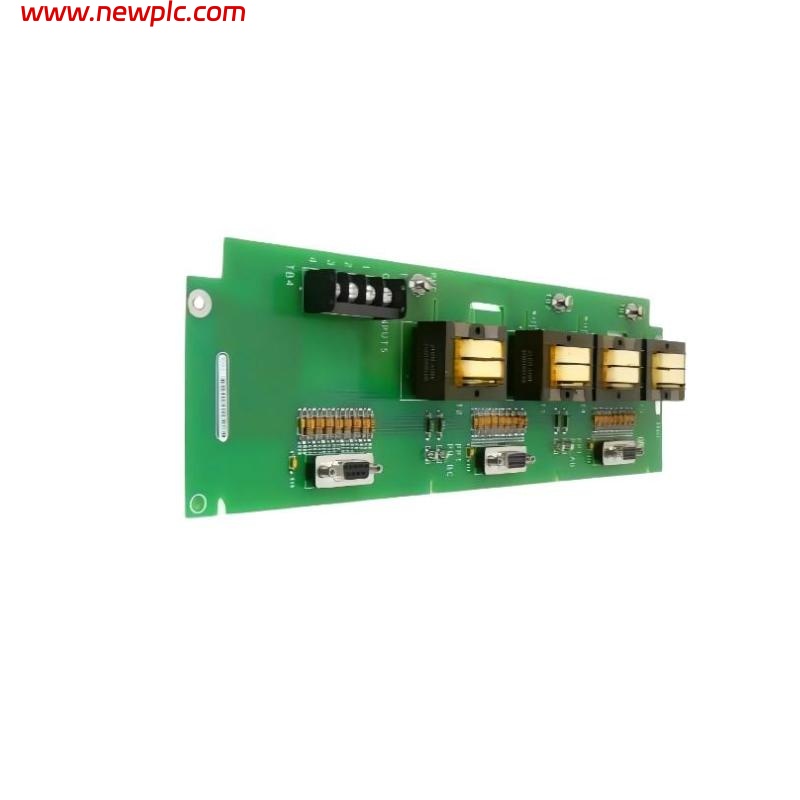

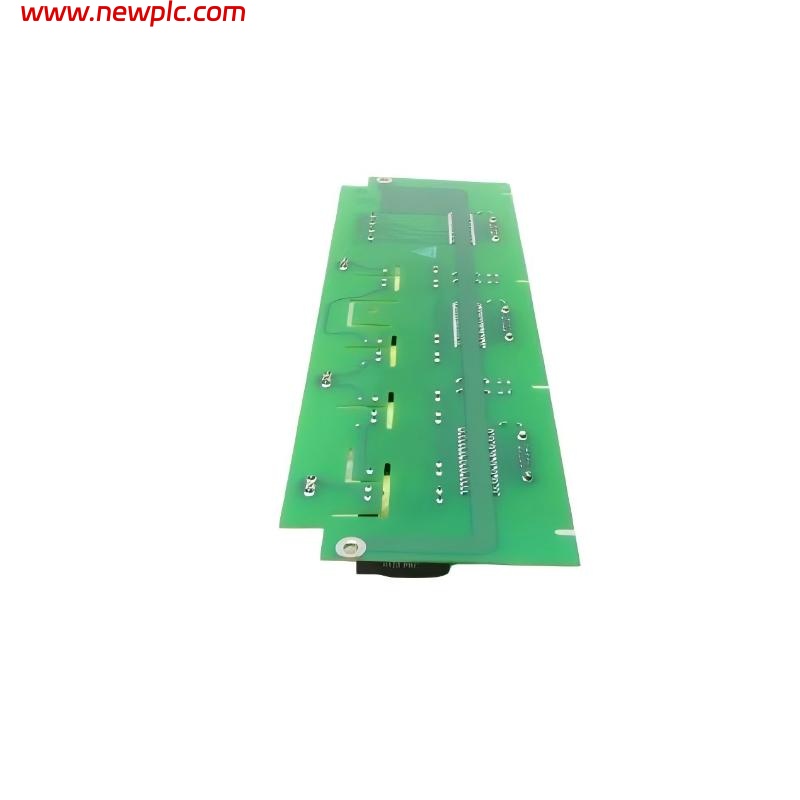

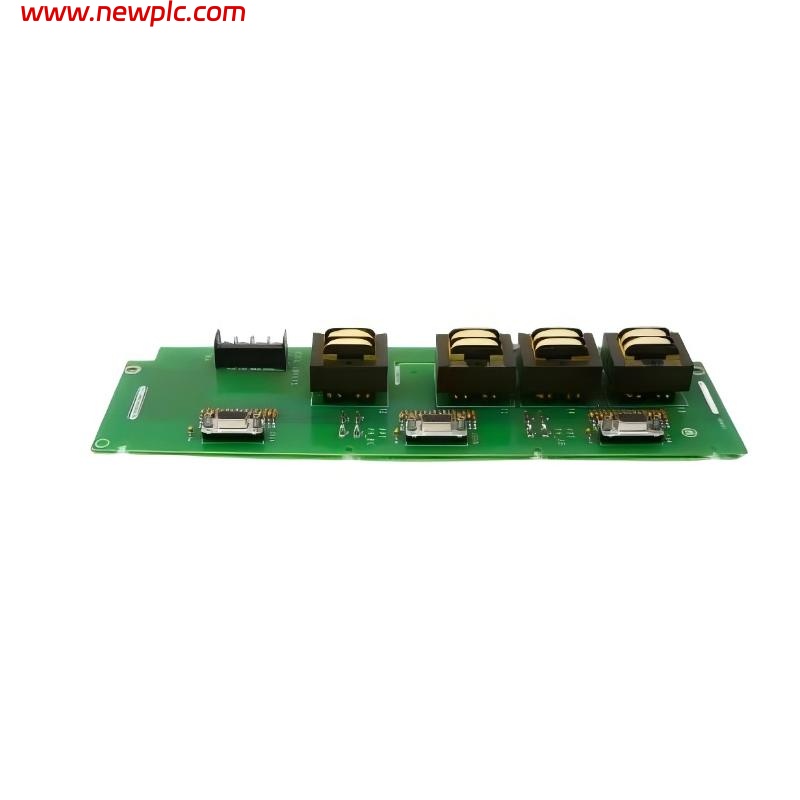

| Product Name | Circuit Board |
| Manufacturer | GE Fanuc |
| Product Series | Mark VI Control System |
| Function | Conditions, filters, and isolates analog signals to provide accurate inputs for turbine control systems |
| Power Supply | +5 V DC, ±15 V DC |
| Analog Input Channels | Multi-channel differential inputs (voltage/current configurable) |
| Signal Type | Analog input and output |
| Communication Interface | System backplane connector |
| Input Range | 0–10 V DC or 4–20 mA (configurable) |
| Isolation Voltage | 1500 V RMS |
| Accuracy | ±0.1% of full scale |
| Response Time | <1 ms |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5%–95% RH (non-condensing) |
| Cooling Method | Natural convection |
| Dimensions | 153.5 × 83 × 15 mm |
| Weight | 0.45 kg |
FAQ
FAQ
Q1: What is the main function of the IS200EACFG2ABB board?
A1: It performs conditioning, filtering, and isolation of analog signals for accurate control input.
Q2: Which system is this board used with?
A2: It is designed for use with the GE Mark VI Control System.
Q3: What types of signals are supported?
A3: It supports both voltage (0–10 V DC) and current (4–20 mA) analog signals.
Q4: What is the module’s power supply requirement?
A4: It operates with +5 V DC and ±15 V DC power supplies.
Q5: What are the dimensions and weight of the board?
A5: Dimensions are 153.5 × 83 × 15 mm, and the weight is about 0.45 kg.
Q6: What is the signal accuracy level?
A6: The module provides ±0.1% full-scale accuracy.
Q7: How does the board communicate with the control system?
A7: Through a backplane connector interface.
Q8: What is the operational temperature range?
A8: It operates reliably between 0°C and +60°C.
