Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Horner APG / GE Fanuc compatible |

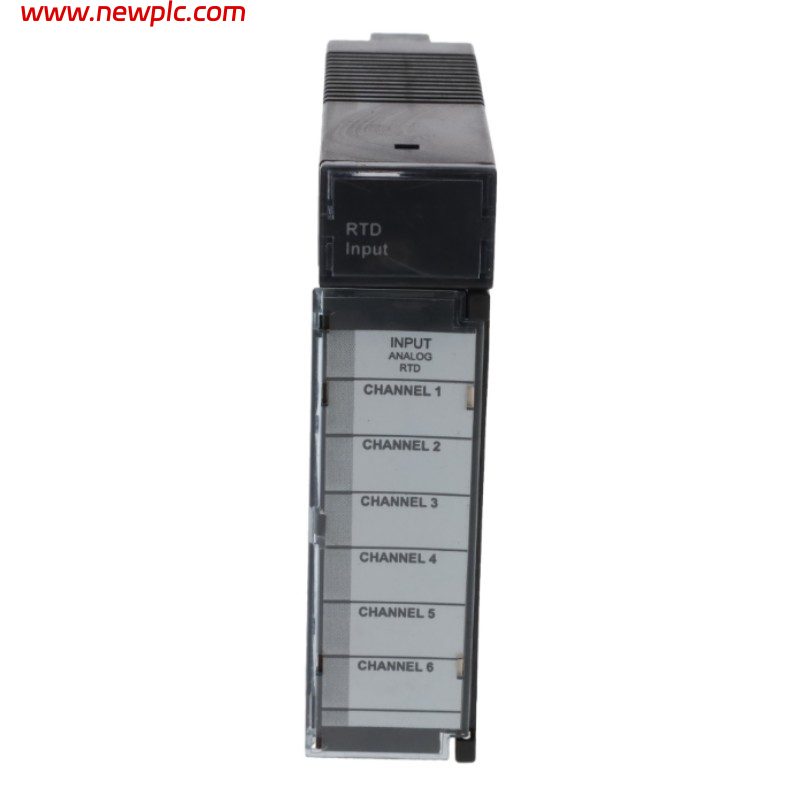

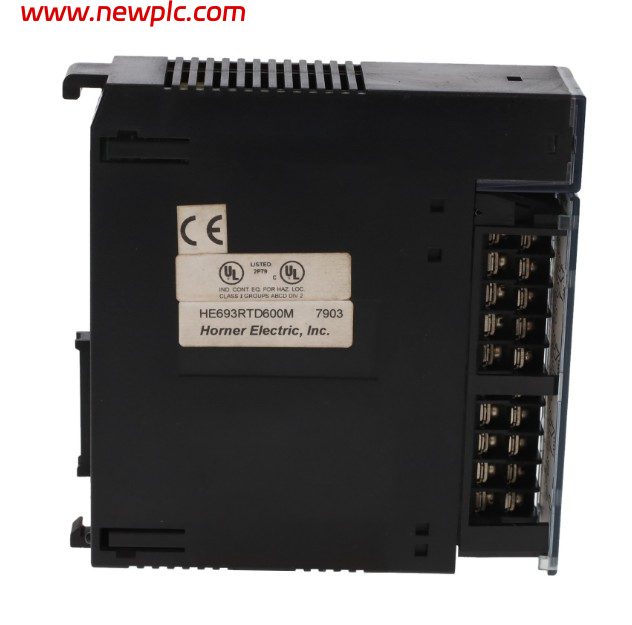

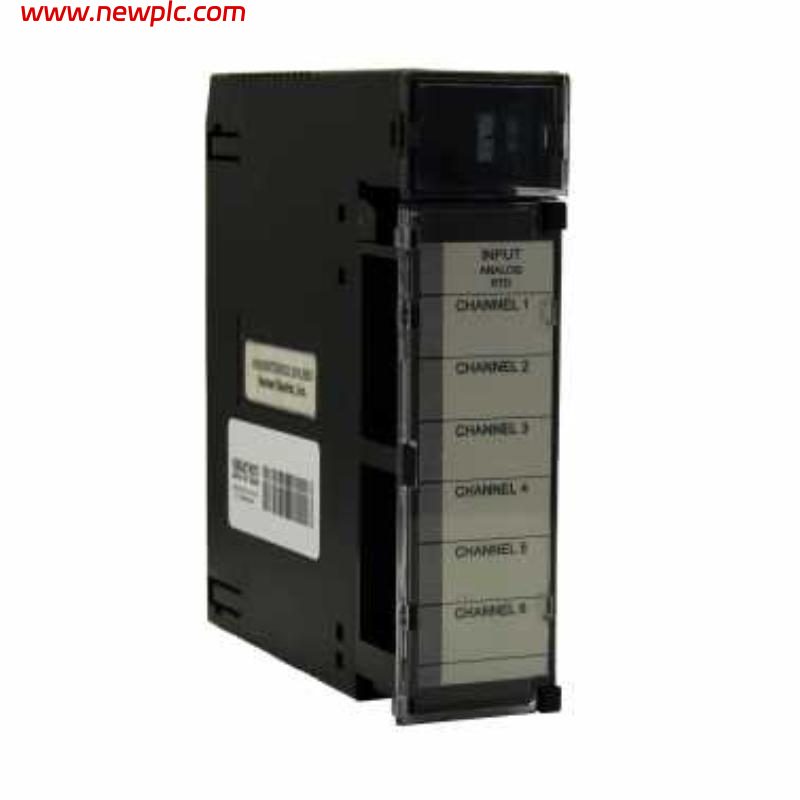

| Product Model | HE693RTD600M |
| Product Type | RTD Temperature Input Module |
| Series Compatibility | GE Fanuc Series 90-30 PLC |
| Function | Converts RTD sensor resistance signals into digital temperature values for PLC monitoring and control |
| Input Channels | 6 channels |
| Input Type | RTD (Resistance Temperature Detector) |
| Sensor Configuration | 3-wire RTD input |
| Supported RTD Type | Pt100 Platinum RTD |
| Temperature Range | -100°C to +850°C |
| Resolution | 0.5°C |
| Input Excitation | Built-in constant current source |
| Conversion Method | Analog-to-digital conversion |
| Cold Junction Compensation | Not required for RTD measurement |
| Sensor Detection | Open sensor detection supported |
| Accuracy | Approximately ±0.5°C (depending on sensor type and operating range) |
| Data Output | Digital temperature value transferred to PLC |
| Isolation | RTD input circuitry isolated from PLC backplane |
| PLC Interface | GE Fanuc Series 90-30 backplane |
| Compatible PLC Systems | GE Fanuc Series 90-30 PLC |
| Installation Position | Any available Series 90-30 I/O slot |
| Power Supply | Supplied through PLC backplane |
| Backplane Voltage | 5 VDC |
| Power Consumption | Approx. 100 mA @ 5 VDC |
| Status Indicators | Module status LED |
| Terminal Connection | Removable screw terminal block |
| Mounting Method | Rack-mounted PLC module |
| Operating Temperature | 0°C to +60°C (32°F to +140°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Relative Humidity | 5–95% RH (non-condensing) |
| Dimensions (H × W × D) | Approx. 127 × 51 × 127 mm (5.0 × 2.0 × 5.0 in.) |
| Weight | Approx. 0.30 kg (0.66 lb) |
| Hardware Revision | M |
| Product Status | Legacy Product |
| Warranty | 12 Months |
FAQ
FAQ
Q1: What is the HE693RTD600M used for?
The HE693RTD600M is used to measure temperature signals from RTD sensors and provide temperature data to GE Fanuc Series 90-30 PLC systems for automation and process control applications.
Q2: How many RTD channels does the HE693RTD600M provide?
The module provides 6 independent RTD input channels, allowing multiple temperature points to be monitored simultaneously.
Q3: What type of temperature sensor is compatible with the HE693RTD600M?
The module is designed for 3-wire Pt100 RTD sensors, which are commonly used for accurate industrial temperature measurement.
Q4: What temperature range does the HE693RTD600M support?
The HE693RTD600M supports a temperature measurement range of approximately -100°C to +850°C.
Q5: What is the resolution of the HE693RTD600M?
The module provides 0.5°C temperature resolution, allowing accurate temperature monitoring in industrial applications.
Q6: Does the HE693RTD600M require an external transmitter?
No. The module accepts RTD sensor signals directly and performs the resistance-to-temperature conversion internally.
Q7: Is the HE693RTD600M compatible with GE Fanuc Series 90-30 PLC systems?
Yes. The HE693RTD600M is designed as a Series 90-30 compatible RTD input module and installs in standard Series 90-30 PLC racks.
Q8: What should be checked before replacing an HE693RTD600M module?
Before replacement, verify PLC rack compatibility, RTD sensor type, 3-wire wiring connections, channel configuration, temperature scaling settings, and terminal wiring to ensure correct operation after installation.
