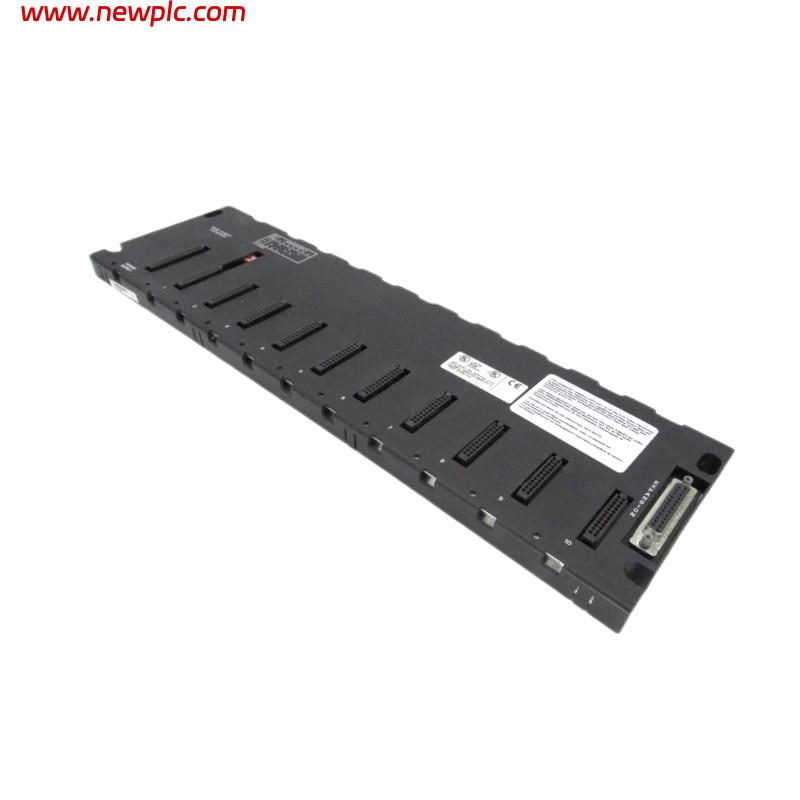

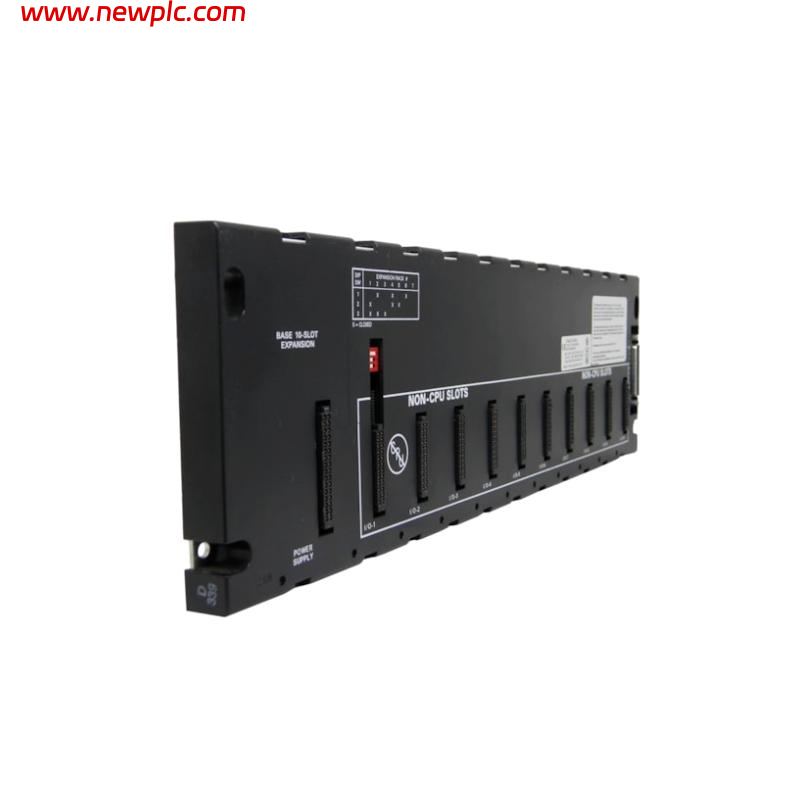

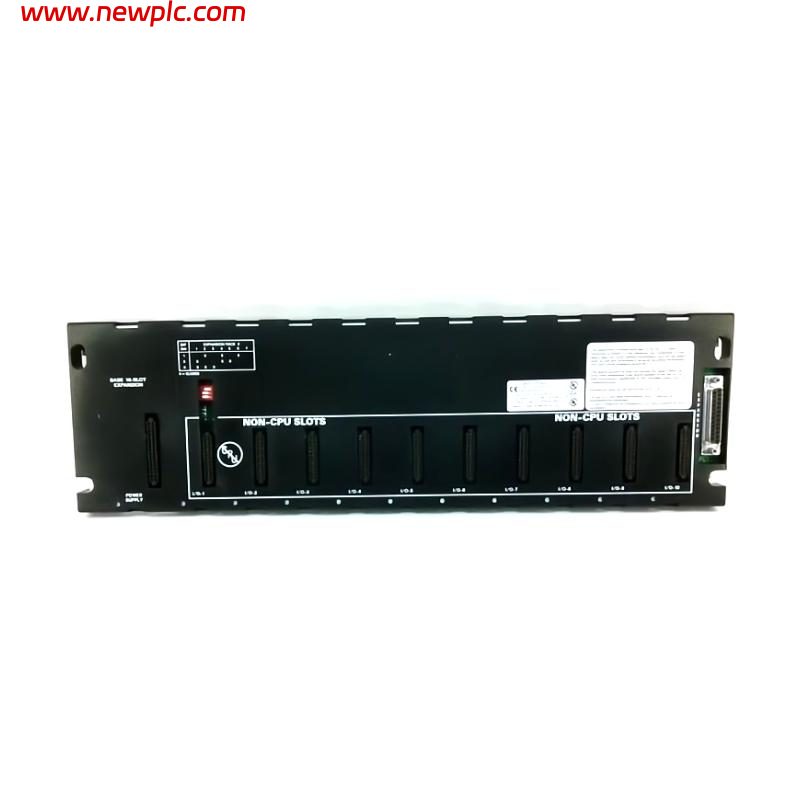

Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE Fanuc (now Emerson Automation) |
| Product Model | IC693CHS392K |
| Product Type | Expansion I/O Baseplate |
| Series | Series 90-30 PLC |
| Function | Provides additional I/O module slots for expanding GE Fanuc Series 90-30 PLC systems |
| Baseplate Type | Expansion Base |
| Number of Slots | 10 slots |
| CPU Support | No CPU slot (requires connection to CPU baseplate) |
| Expansion Connection | 25-pin female D-type I/O Bus Expansion connector |
| Expansion Distance | Up to 50 ft (15.24 m) from CPU baseplate |
| Supported Modules | Standard Series 90-30 I/O modules and compatible option modules |
| Unsupported Intelligent Modules | PCM, ADC, BEM330, CMM311 (must be installed in CPU baseplate) |
| Rack Addressing | Rack number selection DIP switch |
| Power Supply Type | Powered by Series 90-30 power supply module |
| Backplane Power Consumption | 150 mA @ 5 VDC |
| Expansion Capability | Multiple expansion bases supported depending on CPU model |
| Maximum Expansion Bases | Up to 4 with CPU331/340/341; up to 7 with CPU350 and higher |
| Communication Interface | Parallel I/O bus expansion |
| Mounting Method | Rack-mounted chassis installation |
| Compatible Systems | GE Fanuc Series 90-30 PLC |
| Operating Temperature | -25°C to +70°C (-13°F to +158°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Relative Humidity | 5–95% RH (non-condensing) |
| Environmental Protection | IP20 (indoor installation) |
| Dimensions (W × H × D) | Approx. 17.44 × 5.12 × 5.59 in. (443 × 130 × 142 mm) |
| Weight | Approx. 1.2 kg (2.65 lb) |
| Hardware Revision | K |
| Product Status | Legacy Product |
| Warranty | 12 Months |
FAQ
FAQ
Q1: What is the GE Fanuc IC693CHS392K used for?
The IC693CHS392K is used to expand a GE Fanuc Series 90-30 PLC system by adding up to 10 additional slots for I/O modules.
Q2: How many module slots does the IC693CHS392K provide?
The IC693CHS392K provides 10 I/O slots for installing compatible Series 90-30 modules.
Q3: Does the IC693CHS392K contain a CPU?
No. The IC693CHS392K is an expansion baseplate only and must be connected to a CPU baseplate that contains the PLC processor.
Q4: How does the IC693CHS392K connect to the PLC system?
The module connects through a 25-pin female D-type I/O Bus Expansion connector using an expansion cable connected to the CPU baseplate or another expansion base.
Q5: What is the maximum distance between the CPU base and IC693CHS392K?
The expansion connection distance can reach up to 50 feet (15.24 meters) depending on the system configuration and cable type.
Q6: Which PLC systems are compatible with the IC693CHS392K?
The IC693CHS392K is designed for use with GE Fanuc Series 90-30 PLC systems.
Q7: How many expansion bases can be used in one system?
The number of expansion bases depends on the CPU model. Series 90-30 CPUs such as 331, 340, and 341 support up to 4 expansion bases, while CPU350 and newer models can support up to 7.
Q8: What should be checked before replacing an IC693CHS392K?
Before replacement, check the CPU compatibility, rack addressing settings, expansion cable connection, power supply capacity, installed I/O modules, and system configuration to ensure proper operation.
