Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE Fanuc (now Emerson Automation) |

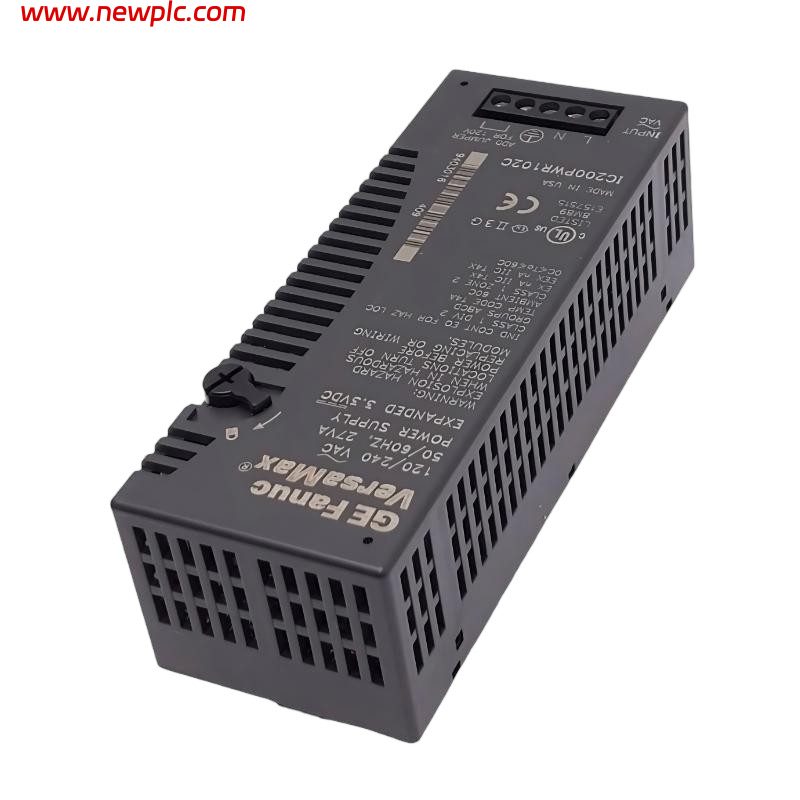

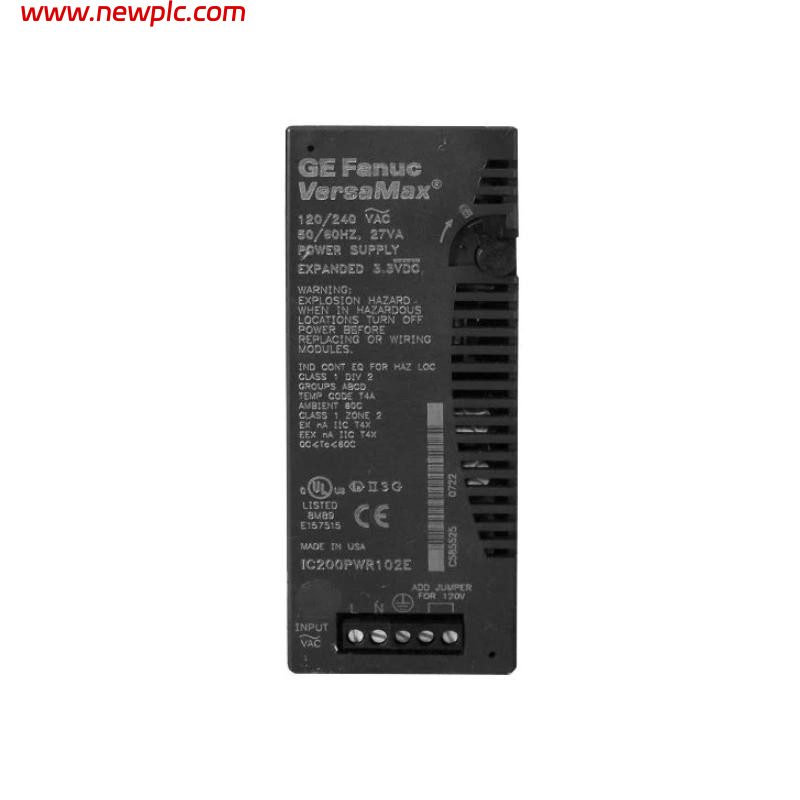

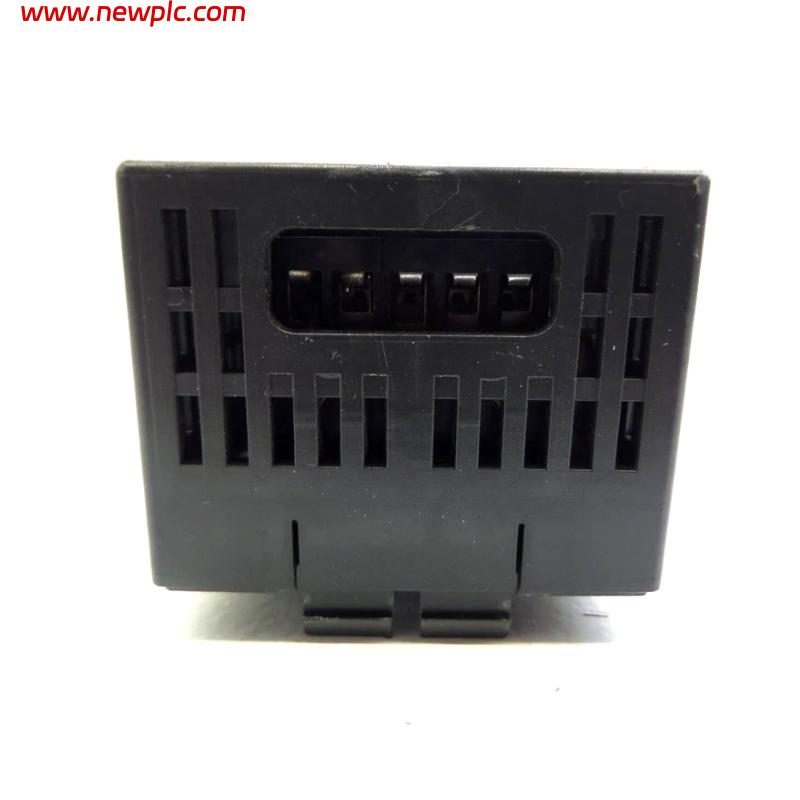

| Product Model | IC200PWR102J |
| Product Type | AC Power Supply Module |
| Series | VersaMax I/O |
| Function | Provides regulated backplane power for VersaMax CPU, Network Interface Unit (NIU), and I/O modules |
| Input Voltage | 120/240 VAC nominal |
| Input Voltage Range | 85–132 VAC (120 VAC mode) / 176–264 VAC (240 VAC mode) |
| Input Frequency | 47–63 Hz |
| Input Power | 27 VA maximum |
| Output Voltage | 5 VDC and 3.3 VDC |
| Total Output Current | 1.5 A maximum (combined output) |
| 3.3 VDC Output Current | 1.0 A maximum |
| 5 VDC Output Current | 1.5 A minus 3.3 VDC output current |
| Holdup Time | 20 ms minimum |
| Protection Features | Short-circuit protection and overload protection |
| Voltage Selection | Jumper selectable for 120 VAC / 240 VAC operation |
| Main Application | VersaMax station power supply |
| Secondary Application | Supplemental power supply when installed on Power Supply Booster Carrier |
| Compatible Systems | GE Fanuc VersaMax PLC |
| Compatible Modules | VersaMax CPU modules, NIUs, and I/O modules |
| Compatible Booster Carrier | IC200PWB001 |
| Mounting Method | Direct mounting on CPU, NIU, or booster carrier |
| LED Indicators | Power status indication |
| Backplane Power Output | Supports VersaMax backplane power distribution |
| Operating Temperature | 0°C to +60°C (32°F to +140°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Relative Humidity | 5–95% RH (non-condensing) |
| Dimensions (W × H × D) | Approx. 49 × 133 × 39 mm (1.93 × 5.25 × 1.54 in.) |
| Weight | Approx. 0.14 kg (0.30 lb) |
| Hardware Revision | J |
| Product Status | Legacy Product |
| Warranty | 12 Months |
FAQ
FAQ
Q1: What is the GE Fanuc IC200PWR102J used for?
The IC200PWR102J is used to provide regulated DC power to VersaMax PLC system components, including CPUs, Network Interface Units, and I/O modules.
Q2: What input voltage does the IC200PWR102J support?
The module supports 120 VAC or 240 VAC nominal input. It operates from 85–132 VAC with the 120 VAC jumper configuration and 176–264 VAC without the jumper for 240 VAC operation.
Q3: What output voltages are provided by the IC200PWR102J?
The module provides regulated 5 VDC and 3.3 VDC outputs for VersaMax system power distribution.
Q4: What is the maximum output current of the IC200PWR102J?
The total combined output current is rated at 1.5 A maximum, with up to 1.0 A available from the 3.3 VDC output.
Q5: Can the IC200PWR102J be used as a supplemental power supply?
Yes. When installed on a VersaMax Power Supply Booster Carrier, it can provide additional backplane power for larger I/O configurations.
Q6: What protection functions are included in the IC200PWR102J?
The module includes short-circuit protection and overload protection to help protect the power supply and connected PLC components.
Q7: Is the IC200PWR102J compatible with earlier VersaMax power supplies?
The IC200PWR102 series is designed as an expanded replacement for the VersaMax power supply family, including replacement of the IC200PWR101 series in compatible applications.
Q8: What should be checked before replacing an IC200PWR102J module?
Before replacement, verify the AC input voltage setting, jumper configuration, total VersaMax backplane power requirements, CPU/NIU compatibility, booster carrier usage, and field wiring to ensure correct operation.
