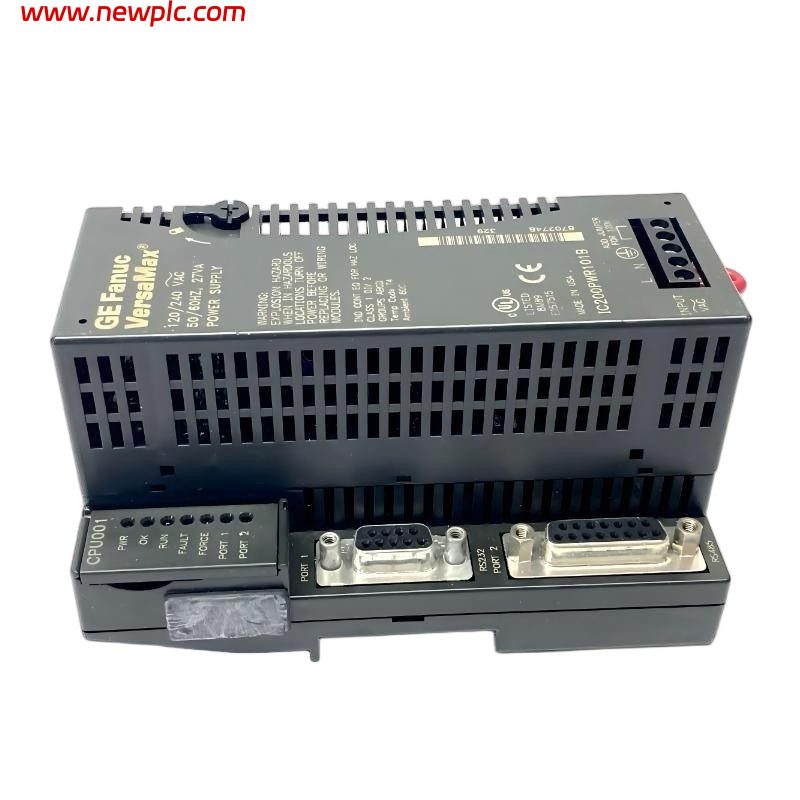

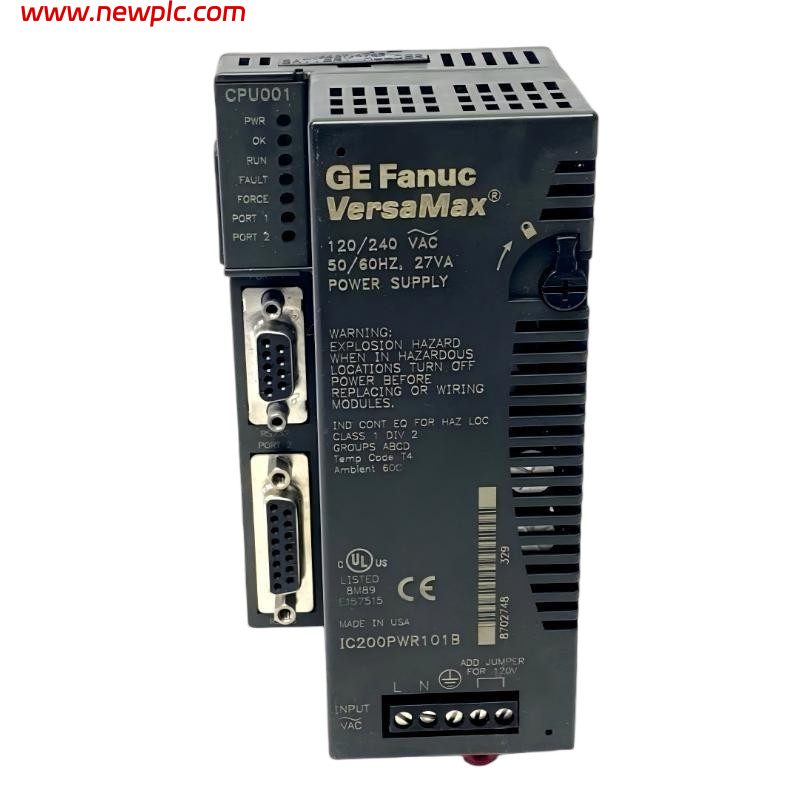

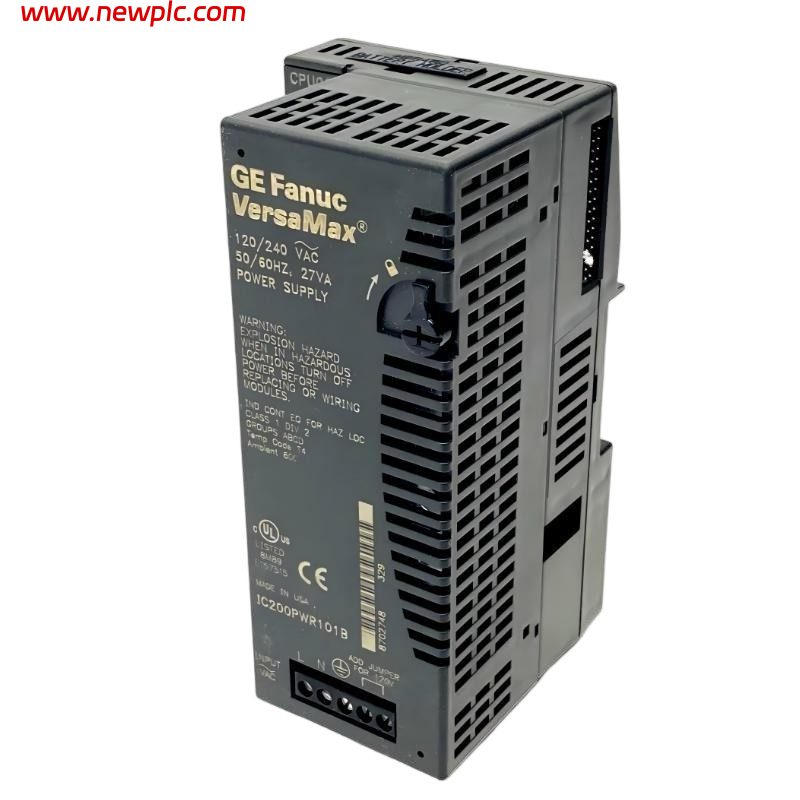

GE IC200PWR101G AC Power Supply Module

FAQ

Q1: What is the GE Fanuc IC200PWR101G used for?
The IC200PWR101G is used as a VersaMax PLC system power supply to provide regulated DC power for CPUs, NIUs, and I/O modules installed on the backplane.

Q2: What input voltage does the IC200PWR101G support?
The module supports 120 VAC or 240 VAC nominal input. It operates from 85–132 VAC with the 120 VAC jumper configuration and 176–264 VAC for 240 VAC operation.

Q3: What output voltages are provided by the IC200PWR101G?
The module provides regulated 5 VDC and 3.3 VDC outputs for powering VersaMax system electronics.

Q4: What is the maximum output current of the IC200PWR101G?
The total output current is rated at 1.5 A maximum. The 3.3 VDC output supports up to 0.25 A, while the remaining capacity is available on the 5 VDC output.

Q5: Does the IC200PWR101G support extended 3.3 VDC power?
No. The IC200PWR101 series does not provide extended power capability. For higher 3.3 VDC power requirements, the IC200PWR102 series is typically used.

Q6: What protection functions are included in the IC200PWR101G?
The power supply includes short-circuit protection and overload protection to protect the module and connected VersaMax components.

Q7: Can the IC200PWR101G operate on both 120 VAC and 240 VAC?
Yes. The input voltage is selected by the jumper configuration. The jumper must be correctly set according to the supply voltage to avoid damage.

Q8: What should be checked before replacing an IC200PWR101G module?
Before replacement, verify the AC input voltage, jumper setting, VersaMax CPU/NIU compatibility, total backplane power consumption, module wiring, and system configuration to ensure correct operation.
