Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE Fanuc (now Emerson Automation) |

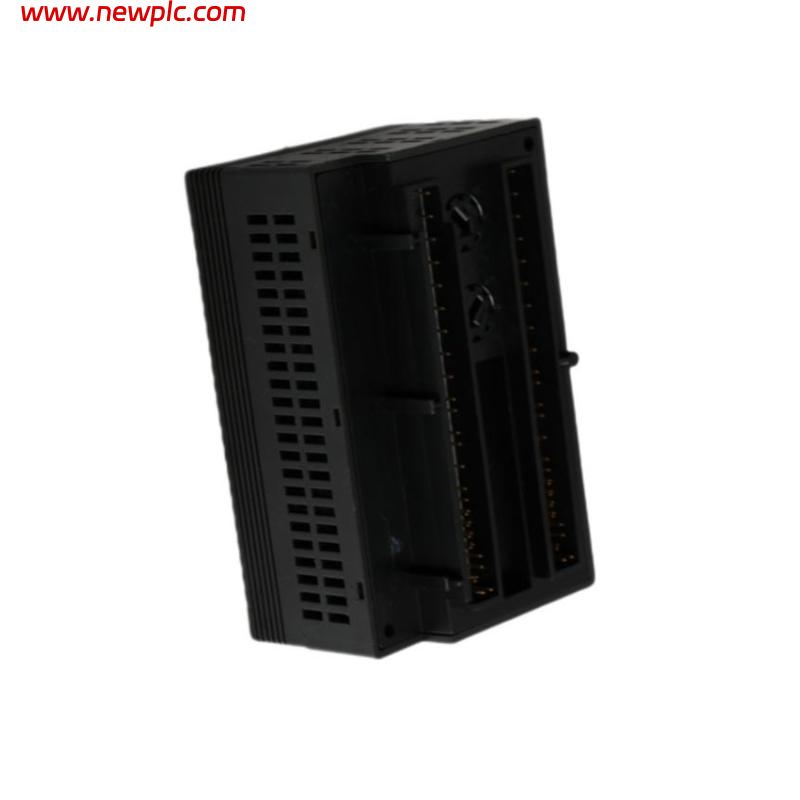

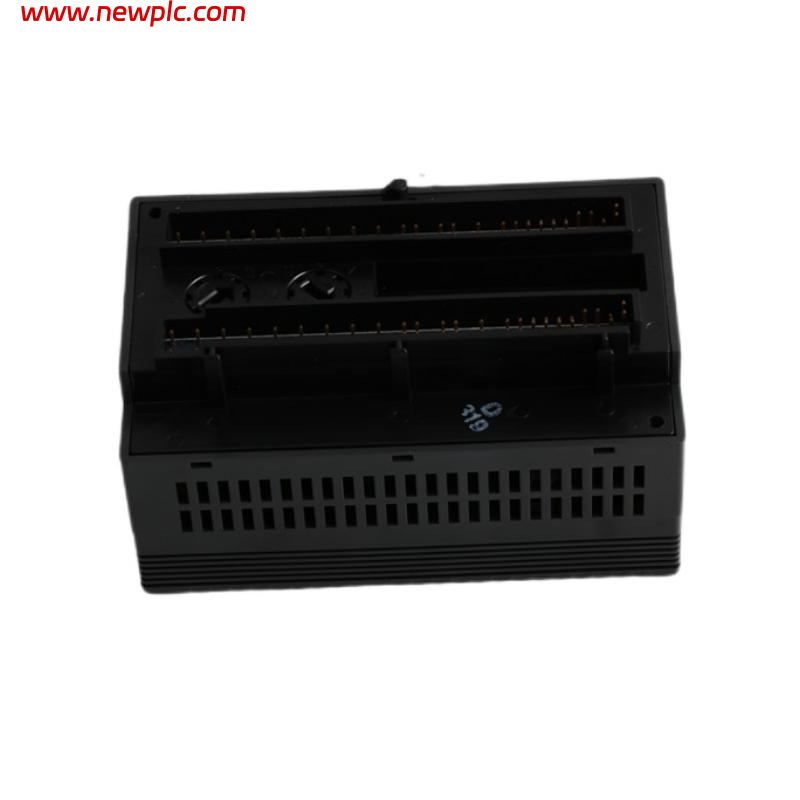

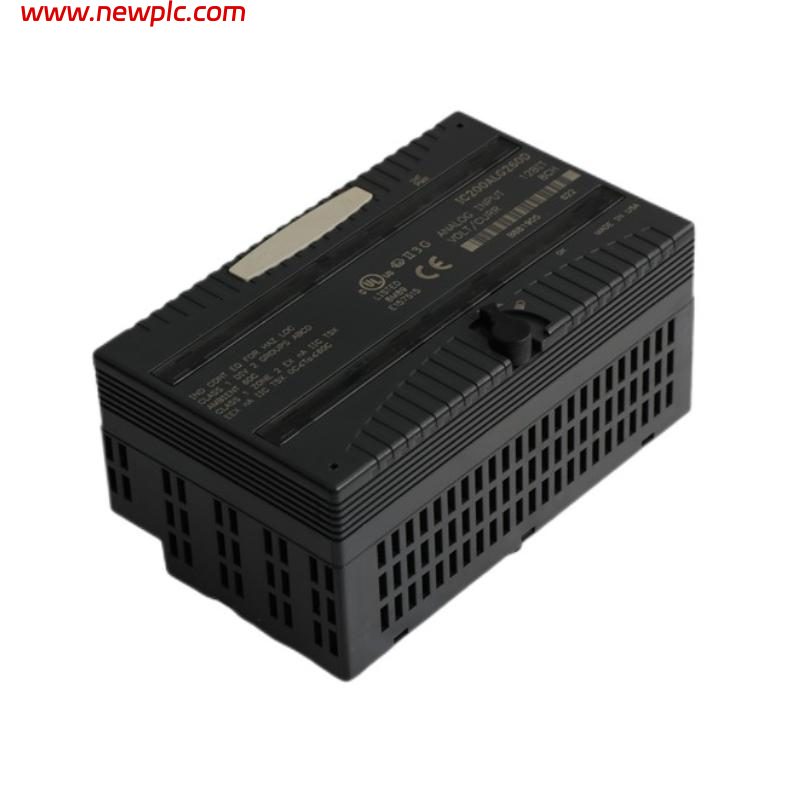

| Product Model | IC200ALG260A |
| Product Type | Analog Input Module |
| Series | VersaMax I/O |
| Function | Acquires analog voltage and current signals from field devices and transfers digital data to the PLC |
| Number of Input Channels | 8 single-ended channels |
| Input Configuration | One input group |
| Input Signal Types | Voltage and Current |
| Supported Voltage Ranges | ±10 VDC (default), 0–10 VDC (configurable) |
| Supported Current Range | 4–20 mA |
| Resolution | 12-bit |
| Update Rate | 0.4 ms |
| Input Filter Response | 5 ms |
| Accuracy at 25°C | ±0.3% typical, ±0.5% maximum of full scale |
| Input Impedance | 126 kΩ maximum (voltage mode), 200 Ω maximum (current mode) |
| Channel-to-Channel Isolation | None |
| User-to-Logic Isolation | 250 VAC continuous, 1500 VAC for 1 minute |
| External Power Supply | Not required for module operation |
| Backplane Current Consumption | 130 mA maximum @ 5 VDC |
| LED Indicators | OK LED, INT PWR LED |
| Diagnostics | Internal power loss diagnostics |
| Configuration | Range and mode selection via carrier jumpers |
| Compatible Carrier | VersaMax I/O Carrier |
| Compatible Systems | GE Fanuc VersaMax PLC and NIU systems |
| Mounting Method | DIN rail using VersaMax carrier |
| Operating Temperature | 0°C to +60°C (32°F to +140°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Relative Humidity | 5–95% RH (non-condensing) |
| Dimensions (H × W × D) | Approx. 110 × 66.8 × 50 mm (4.33 × 2.63 × 1.97 in.) |
| Weight | Approx. 0.26 kg (0.56 lb) |
| Hardware Revision | A |
| Product Status | Legacy Product |
| Warranty | 12 Months |
FAQ
FAQ
Q1: What is the GE Fanuc IC200ALG260A used for?
The IC200ALG260A is used to interface analog field devices, such as pressure transmitters, flow meters, level sensors, and temperature transmitters, with a VersaMax PLC by converting analog signals into digital values for control and monitoring.
Q2: How many analog input channels does the IC200ALG260A provide?
The module provides 8 single-ended analog input channels arranged in one input group.
Q3: What signal types are supported by the IC200ALG260A?
It supports ±10 VDC, 0–10 VDC, and 4–20 mA analog input signals, allowing connection to a wide variety of industrial sensors and transmitters.
Q4: Does the IC200ALG260A require an external power supply?
No. The module itself is powered directly from the VersaMax backplane. However, connected field transmitters may require their own external power source depending on the application.
Q5: What is the analog input resolution?
The IC200ALG260A provides 12-bit resolution, offering accurate measurement for industrial analog applications.
Q6: How is the IC200ALG260A configured?
The input range and operating mode are configured using jumpers on the VersaMax carrier, allowing selection between voltage and current measurement modes.
Q7: What diagnostic indicators are available?
The module features an OK LED indicating proper backplane operation and an INT PWR LED indicating that the internally generated field power is available. It also supports internal power loss diagnostics.
Q8: What should be checked before replacing an IC200ALG260A module?
Before replacement, verify the VersaMax carrier compatibility, jumper configuration, analog input type (voltage or current), field wiring, transmitter power supply, PLC hardware configuration, and scaling parameters to ensure the replacement module operates correctly.
