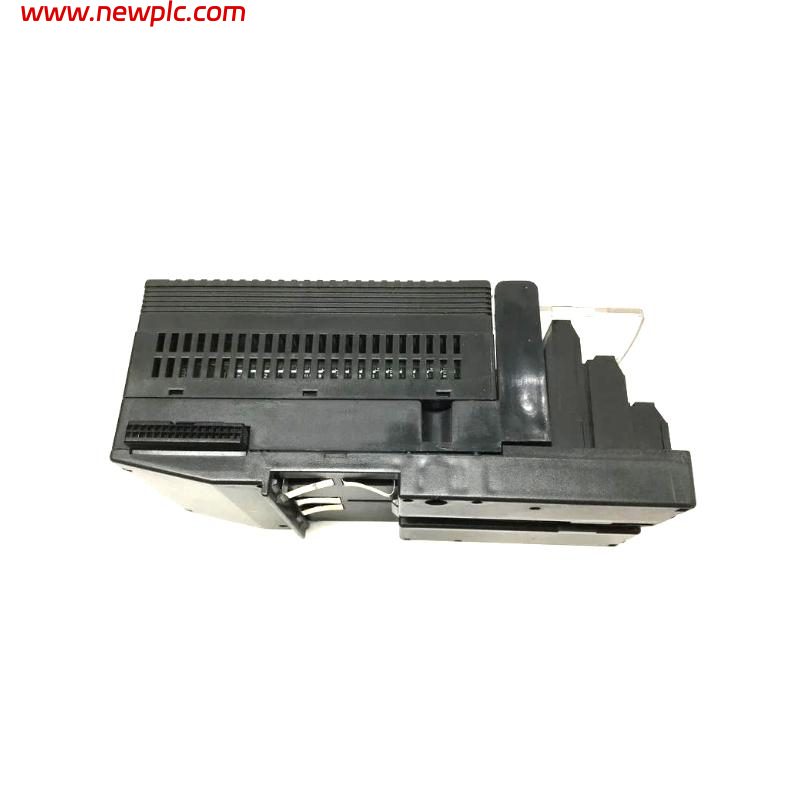

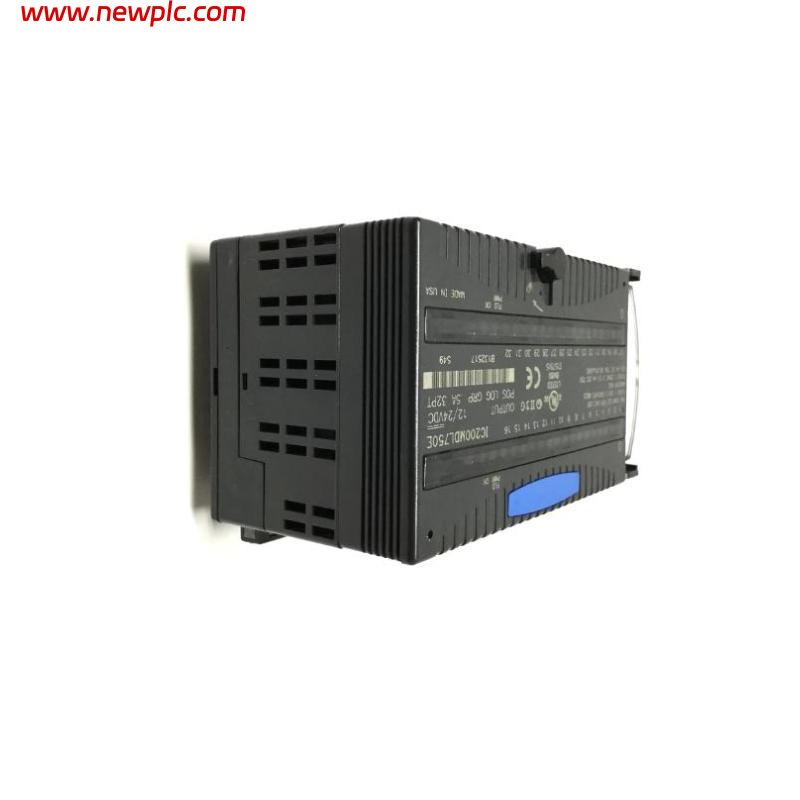

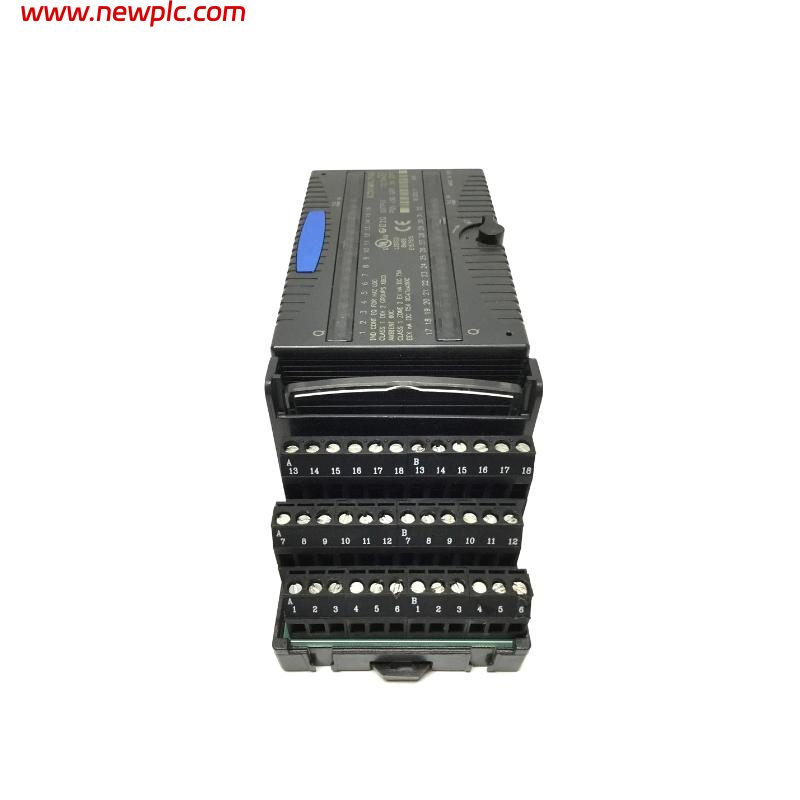

GE IC200MDL750B Discrete DC Output Module

FAQ

Q1: What is the IC200MDL750B used for?
The IC200MDL750B is used to control DC field devices such as solenoid valves, relay coils, pilot lights, contactors, and other on/off loads from a VersaMax PLC system.

Q2: How many output points does the IC200MDL750B provide?
The module provides 32 discrete DC outputs, organized into two groups of 16 outputs for flexible field wiring.

Q3: What output voltage does the IC200MDL750B support?
The module supports 12/24 VDC nominal output with an operating range of 10.2 to 30 VDC. The B revision fully supports 12 VDC applications.

Q4: What is the maximum output current per channel?
Each output channel can supply up to 0.5 A continuous, with an inrush capability of 2.0 A for up to 100 ms when driving inductive loads.

Q5: Does the IC200MDL750B require an external power supply?
Yes. The module requires an external 10.2–30 VDC field power supply to switch power to connected loads. The PLC backplane powers only the module electronics.

Q6: What diagnostic indicators are available?
The module includes 32 individual output LEDs, an OK LED indicating backplane power, and a FLD PWR LED indicating that field power is present.

Q7: Is the IC200MDL750B electrically isolated?
Yes. It provides 250 VAC continuous isolation between field wiring and logic, as well as between the two output groups, with 1500 VAC dielectric withstand for one minute.

Q8: What should be checked before replacing an IC200MDL750B module?
Before replacement, verify the VersaMax carrier compatibility, external DC field power supply, wiring connections, output load current, PLC hardware configuration, and ensure the replacement module is Revision B or later if 12 VDC operation is required.
