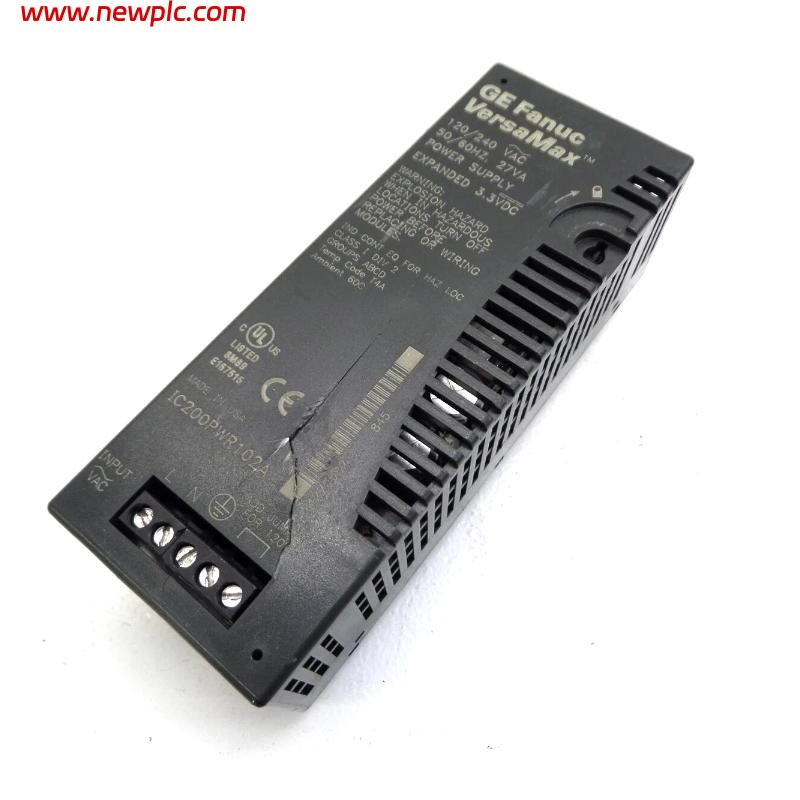

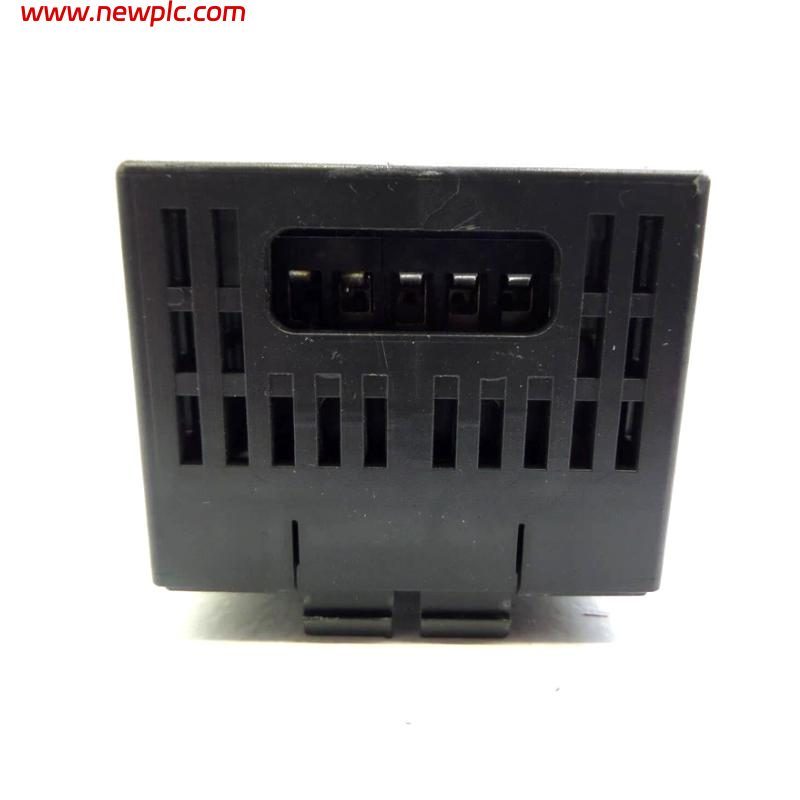

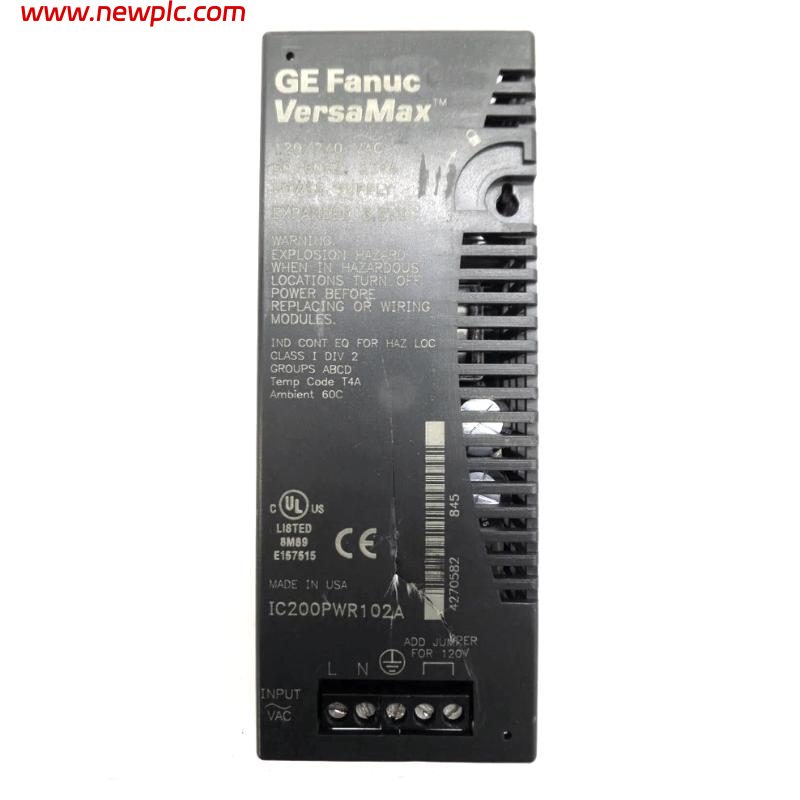

Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE Fanuc (now Emerson Automation) |
| Product Model | IC200PWR102B |
| Product Type | AC Power Supply Module |
| Series | VersaMax I/O |
| Function | Provides regulated backplane power for VersaMax CPU, NIU, and I/O modules |
| Input Voltage | 120/240 VAC nominal |
| Input Voltage Range | 85–132 VAC (120 VAC mode) / 176–264 VAC (240 VAC mode) |
| Input Voltage Selection | Jumper selectable (jumper installed for 120 VAC, removed for 240 VAC) |
| Input Frequency | 47–63 Hz |
| Input Power | 27 VA maximum |
| Output Voltages | 5 VDC and 3.3 VDC |
| Total Output Current | 1.5 A maximum |
| 3.3 VDC Output Current | 1.0 A maximum |
| 5 VDC Output Current | 1.5 A maximum (shared with 3.3 VDC load) |
| Holdup Time | 20 ms minimum |
| Protection Features | Short-circuit, overload, and reverse-polarity protection |
| Extended 3.3 VDC Power | Supported |
| Application | Main station power supply or supplemental power supply via Booster Carrier |
| Compatible Systems | GE Fanuc VersaMax PLC |
| Compatible Modules | VersaMax CPU, NIU, and I/O modules |
| Compatible Booster Carrier | IC200PWB001 |
| Mounting Method | Direct mounting to CPU, NIU, or Power Supply Booster Carrier |
| Status Indicators | Power status LED |
| Isolation | Internal isolation between AC input and backplane power |
| Operating Temperature | 0°C to +60°C (32°F to +140°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Relative Humidity | 5–95% RH (non-condensing) |
| Dimensions (W × H × D) | 49 × 133.4 × 39 mm (1.93 × 5.25 × 1.54 in.) |
| Weight | Approx. 0.14 kg (0.30 lb) |
| Hardware Revision | B |
| Product Status | Legacy Product |
| Warranty | 12 Months |
FAQ
FAQ
Q1: What is the GE Fanuc IC200PWR102B used for?
The IC200PWR102B supplies regulated backplane power to VersaMax CPUs, Network Interface Units (NIUs), and I/O modules, ensuring reliable operation of the PLC system.
Q2: What input voltage does the IC200PWR102B require?
The module accepts 85–132 VAC for 120 VAC operation (with the jumper installed) or 176–264 VAC for 240 VAC operation (with the jumper removed). Operating at 240 VAC with the jumper installed may damage the module.
Q3: What output power does the IC200PWR102B provide?
It provides regulated 5 VDC and 3.3 VDC outputs with a maximum combined output current of 1.5 A, including up to 1.0 A on the 3.3 VDC output.
Q4: Can the IC200PWR102B be used as a secondary power supply?
Yes. In addition to serving as the primary station power supply, it can be mounted on an IC200PWB001 Power Supply Booster Carrier to provide supplemental power for larger VersaMax systems.
Q5: What protection features are built into the IC200PWR102B?
The module includes short-circuit protection, overload protection, and reverse-polarity protection, helping safeguard both the power supply and connected VersaMax modules.
Q6: Which VersaMax products are compatible with the IC200PWR102B?
The module is compatible with VersaMax CPU modules, Network Interface Units (NIUs), standard I/O modules, and Power Supply Booster Carriers, provided the system’s total backplane power consumption remains within specification.
Q7: What are the dimensions and weight of the IC200PWR102B?
The module measures approximately 49 × 133.4 × 39 mm (1.93 × 5.25 × 1.54 in.) and weighs approximately 0.14 kg (0.30 lb).
Q8: What should be checked before replacing an IC200PWR102B module?
Before replacement, verify the AC input voltage selection, jumper position, total backplane current requirements, CPU or NIU compatibility, booster carrier installation (if applicable), field wiring, and system configuration to ensure reliable operation after installation.
