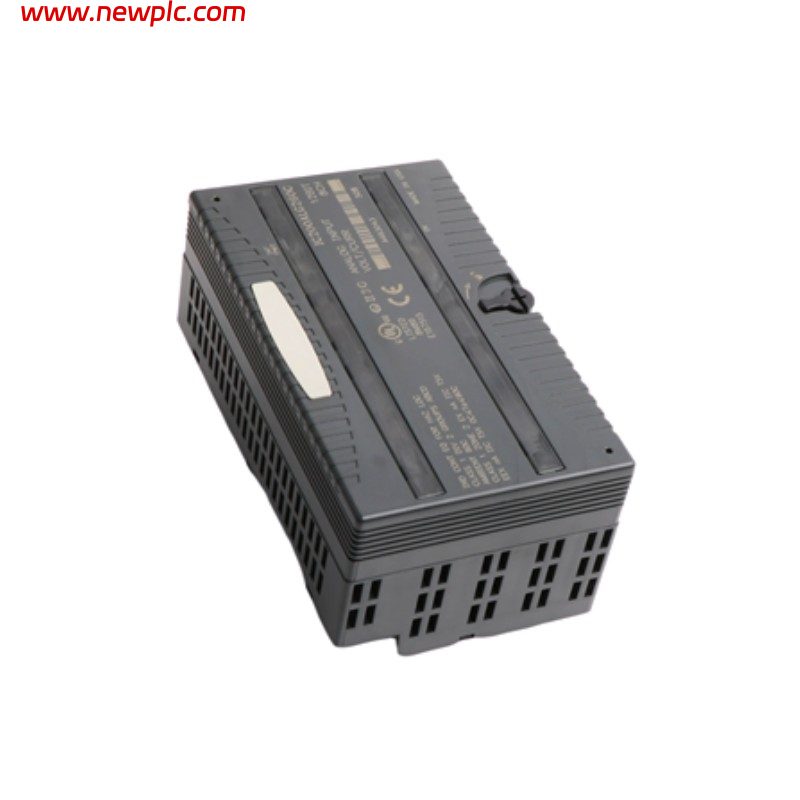

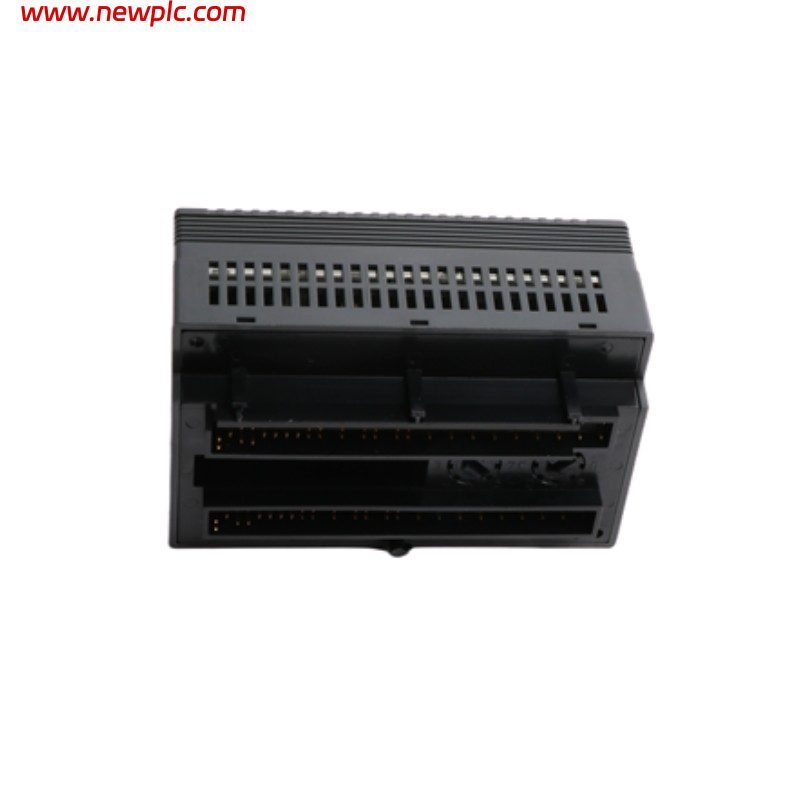

Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE Fanuc (now Emerson Automation) |
| Product Model | IC200ALG260C |
| Product Type | Analog Input Module |
| Series | VersaMax I/O |
| Function | Converts analog voltage and current signals from field devices into digital values for PLC processing |
| Number of Input Channels | 8 single-ended channels |
| Input Types | Voltage / Current |
| Supported Input Ranges | ±10 VDC (default), 0–10 VDC (configurable), 4–20 mA |
| Resolution | 12-bit A/D |
| Voltage Input Impedance | 126 kΩ maximum |
| Current Input Impedance | 200 Ω maximum |
| Accuracy (25°C) | ±0.3% typical, ±0.5% maximum of full scale |
| Accuracy (0–60°C) | ±1.0% maximum of full scale |
| Filter Response Time | 5.0 ms |
| Update Rate | 0.4 ms per module |
| Backplane Current Consumption | 130 mA maximum @ 5 VDC |
| External Power Supply | Not required (module powered from the VersaMax backplane) |
| Isolation | 250 VAC continuous; 1500 VAC for 1 minute (field to logic/frame ground) |
| Channel-to-Channel Isolation | None |
| Diagnostics | Loss of Internal Power |
| Configuration | Voltage/Current selection and range selection via carrier jumpers |
| LED Indicators | OK, INT PWR |
| Mounting | VersaMax Carrier Base |
| Compatible Systems | GE Fanuc / Emerson VersaMax PLC and Distributed I/O |
| Operating Temperature | 0°C to +60°C (32°F to +140°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Relative Humidity | 5–95% RH (non-condensing) |
| Dimensions (W × H × D) | 110 × 66.8 × 50 mm (4.33 × 2.63 × 1.97 in.) |
| Weight | Approx. 0.25–0.30 kg (0.55–0.66 lb) |
| Hardware Revision | C |
| Warranty | 12 Months |
FAQ
FAQ
Q1: What is the GE Fanuc IC200ALG260C used for?
The IC200ALG260C is an 8-channel analog input module for the VersaMax I/O platform. It acquires voltage or current signals from field instruments such as pressure transmitters, flow meters, temperature transmitters, and level sensors, then converts them into digital values for PLC processing.
Q2: What input signals does the IC200ALG260C support?
The module supports ±10 VDC, 0–10 VDC, and 4–20 mA analog inputs. The operating mode is selected using jumpers on the VersaMax carrier.
Q3: How many analog channels are available?
The IC200ALG260C provides 8 single-ended analog input channels that share a common return, making it suitable for a wide range of industrial analog measurement applications.
Q4: Does the IC200ALG260C require an external power supply?
No. The module itself is powered directly from the VersaMax backplane. However, field transmitters and sensors may require their own external power source depending on the application.
Q5: What is the measurement accuracy of the IC200ALG260C?
At 25°C, the module provides ±0.3% typical and ±0.5% maximum full-scale accuracy. Across the full operating temperature range, the maximum error is ±1.0% of full scale.
Q6: What diagnostic features are included?
The module provides Loss of Internal Power diagnostics and uses OK and INT PWR LEDs to indicate module status and field-side power availability, simplifying maintenance and troubleshooting.
Q7: What does the “C” revision indicate?
The “C” suffix identifies the hardware revision of the IC200ALG260. Revision C maintains the same electrical specifications and compatibility as earlier versions while incorporating manufacturing and reliability improvements introduced during the product lifecycle.
Q8: What should be verified before replacing an IC200ALG260C module?
Before replacement, verify the VersaMax carrier compatibility, jumper settings, selected input range, field wiring, PLC hardware configuration, and scaling parameters. Confirming these settings helps ensure accurate measurements and reliable system operation.
