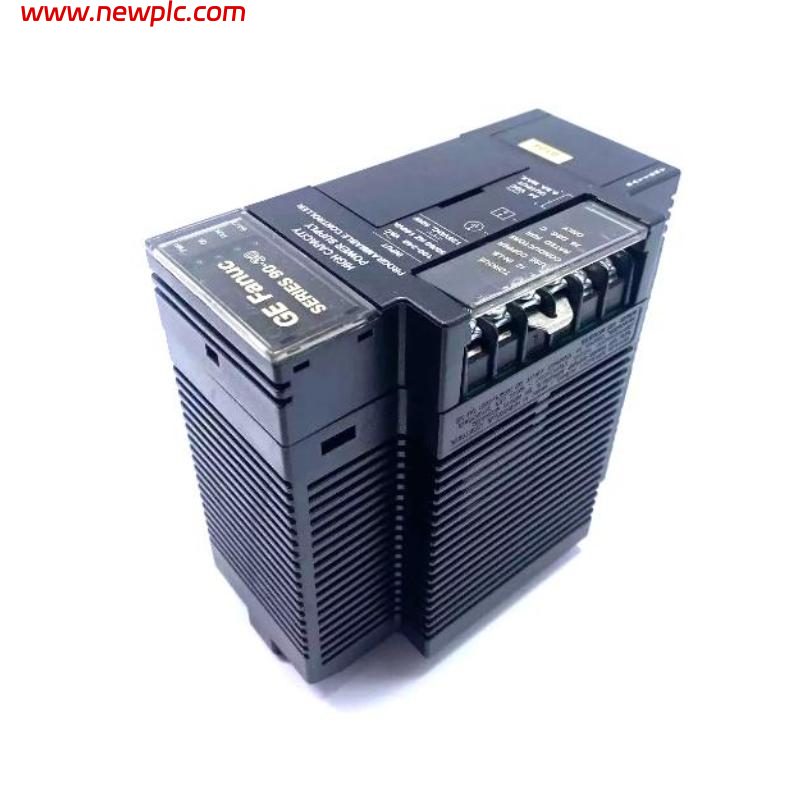

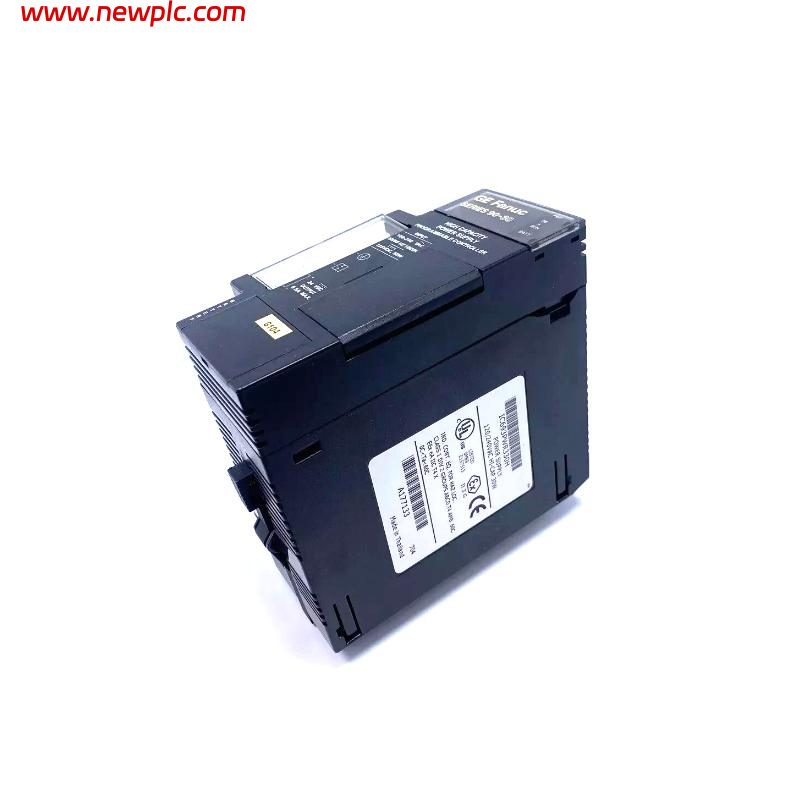

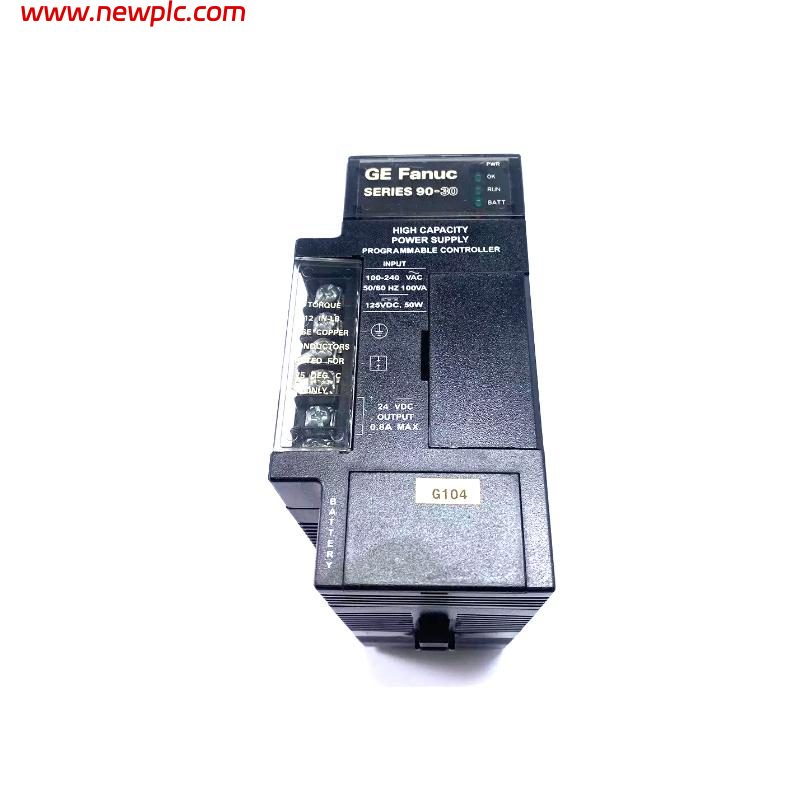

GE IC693PWR330H High-Capacity AC/DC Power Supply

FAQ

Q1: What is the GE Fanuc IC693PWR330H used for?
The IC693PWR330H is a high-capacity power supply designed for the GE Fanuc Series 90-30 PLC. It provides regulated +5 VDC, +24 VDC Relay, and isolated +24 VDC outputs to power the PLC backplane and various I/O modules.

Q2: What input voltages does the IC693PWR330H support?
The module accepts a wide input range of 85–264 VAC or 100–300 VDC, allowing it to be used in both AC- and DC-powered industrial control systems.

Q3: How much output power can the IC693PWR330H deliver?
The power supply provides a maximum combined output of 30 W. The available outputs include +5 VDC (up to 30 W), +24 VDC Relay (up to 15 W), and +24 VDC Isolated (up to 20 W), provided the combined load does not exceed 30 W.

Q4: Why would I choose the IC693PWR330H over a standard power supply?
The IC693PWR330H is intended for Series 90-30 systems with higher +5 VDC current requirements. It allows the full 30 W output capacity to be allocated to the +5 VDC supply when required by CPU and I/O modules.

Q5: What is the purpose of the isolated 24 VDC output?
The isolated +24 VDC output powers certain internal PLC modules and can also provide external power for compatible 24 VDC input modules, reducing the need for an additional power source.

Q6: What protection features are included?
The IC693PWR330H includes overvoltage protection, overcurrent protection, and a minimum 20 ms holdup time, helping maintain stable PLC operation during temporary power disturbances.

Q7: What does the “H” revision indicate?
The H suffix identifies a later hardware revision of the IC693PWR330. It maintains full compatibility with Series 90-30 PLC systems while incorporating manufacturing, quality, and lifecycle improvements.

Q8: What should be checked before replacing an IC693PWR330H?
Before replacing the power supply, verify the baseplate compatibility, input power source (AC or DC), total PLC power consumption, wiring connections, and output load requirements. Confirming these items helps ensure reliable operation and prevents power-related issues after installation.
