Technical Specifications
| Parameter | Specification |
|---|---|

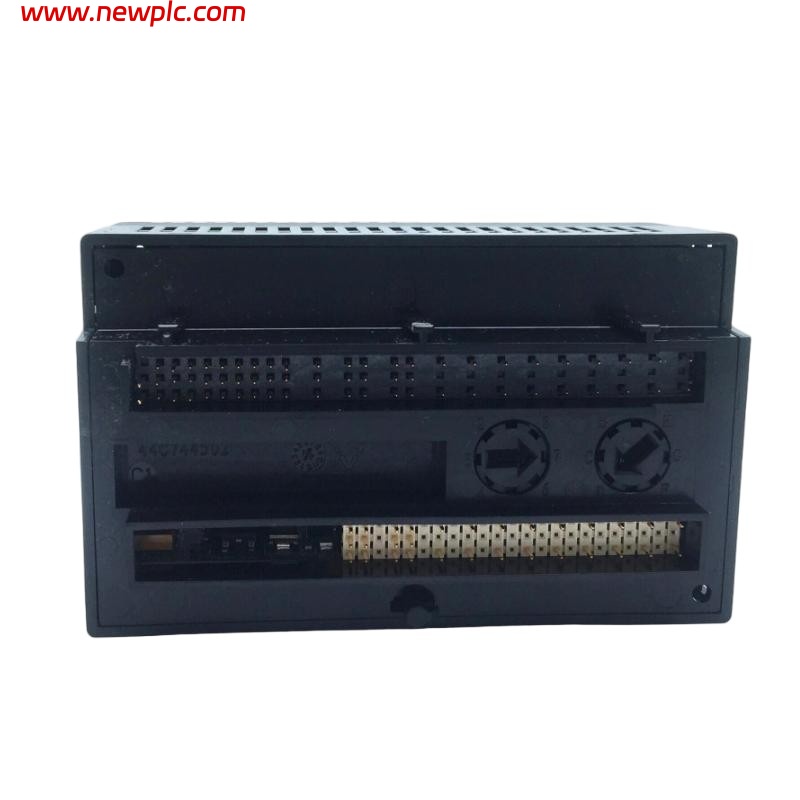

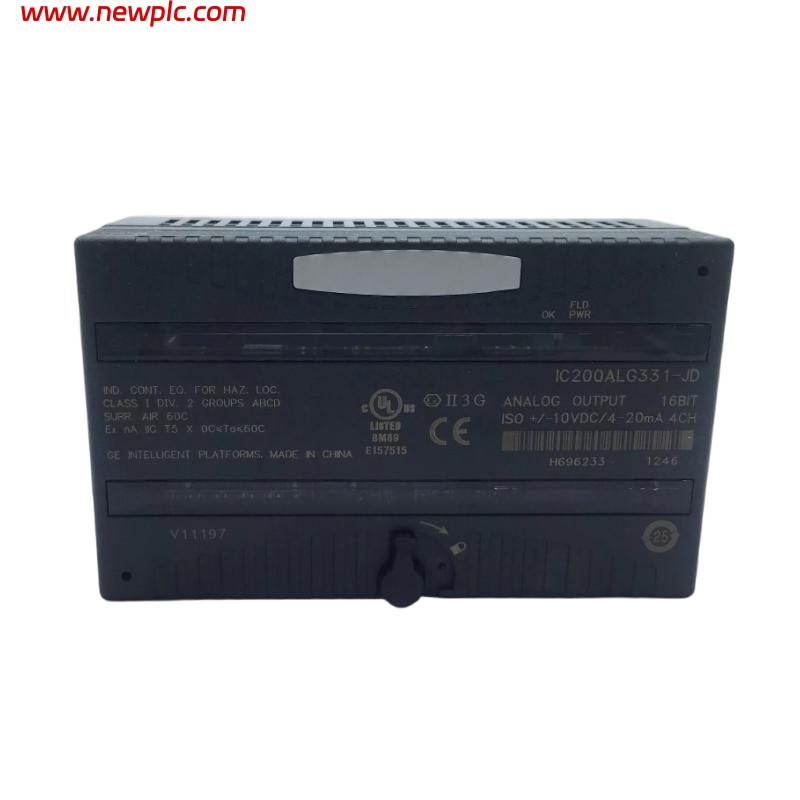

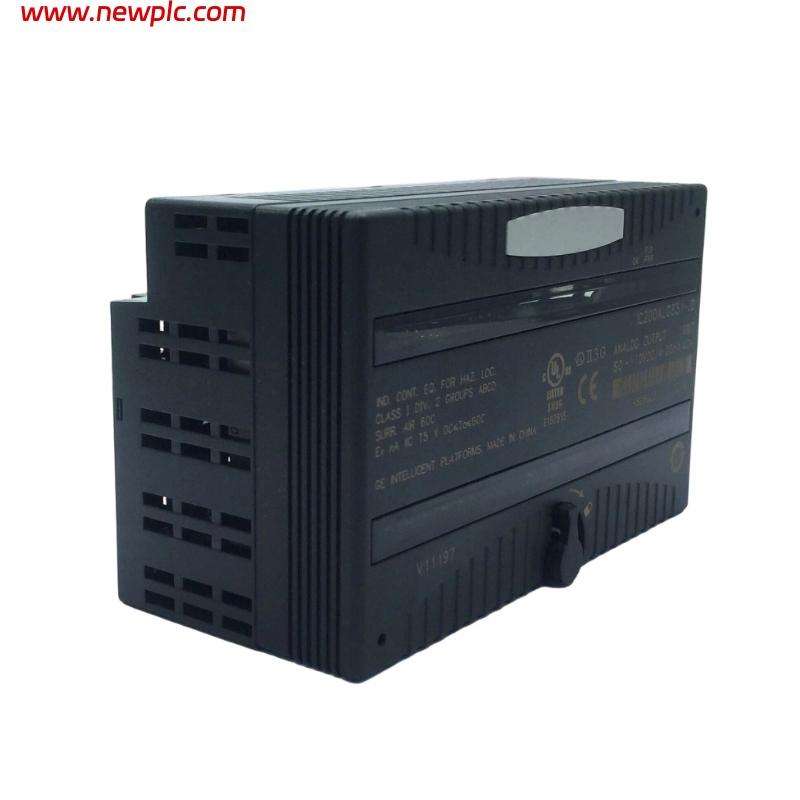

| Model | IC200ALG331 |
| Series | VersaMax I/O |
| Module Type | Analog Output Module |
| Output Channels | 4 individually isolated channels |
| Output Signal Types | ±10 VDC (voltage), 4–20 mA (current), configurable |
| Digital Resolution | 16‑bit |
| Analog Resolution | 381 nA (current mode); 381 µV (voltage mode) |
| Update Rate | 7 ms per channel (max) |
| Accuracy | ±0.1 % of full scale at 25 °C |
| External Supply Voltage | 18–30 VDC including ripple |
| Backplane Current Consumption | 10 mA @ 5 VDC; 115 mA @ 3.3 VDC |
| Isolation | 250 VAC continuous (input to logic and channel‑to‑channel); 1500 VAC for 1 min |
| Diagnostics | High/low limits, over/under‑range, open wire, loss of field power, memory fault |
| Configurable Output Default | Hold last state or fallback to zero |
| LED Indicators | FLD PWR, OK |
| Module Width | Single slot |
| Dimensions | ~122 mm × 82 mm × 60 mm (~4.8″ × 3.2″ × 2.4″) |
| Weight | ~0.64 lbs (~0.29 kg) |
| Operating Temp. Range | –40 °C to +70 °C (typical industrial range) |
| Storage Temp. Range | –40 °C to +85 °C (typical) |
| Certifications | CE, RoHS compliant (common） |
FAQ
FAQ
Q1: What is the primary use of this module?
It provides precise analog voltage and current outputs for controlling industrial devices like valves, drives, and actuators in automation systems.
Q2: How many output channels does the module have?
It has 4 individually isolated analog output channels.
Q3: Can I choose between current and voltage outputs?
Yes, each channel’s output type (voltage ±10 VDC or current 4–20 mA) is software configurable.
Q4: What resolution does the analog output support?
The module uses 16‑bit resolution for accurate analog signal generation.
Q5: Does it offer diagnostic feedback?
Yes, it can detect faults such as over/under‑range, open wiring, and loss of field power.
Q6: What happens to outputs if the PLC stops?
The module can be configured to hold the last output state or fall back to zero on PLC stop or fault.
Q7: What are the physical dimensions and weight?
Approximately 122 mm × 82 mm × 60 mm and about 0.64 lbs (0.29 kg).
Q8: Is it suitable for harsh industrial environments?
Yes, it supports wide temperature ranges and high isolation ratings for reliable industrial use.
