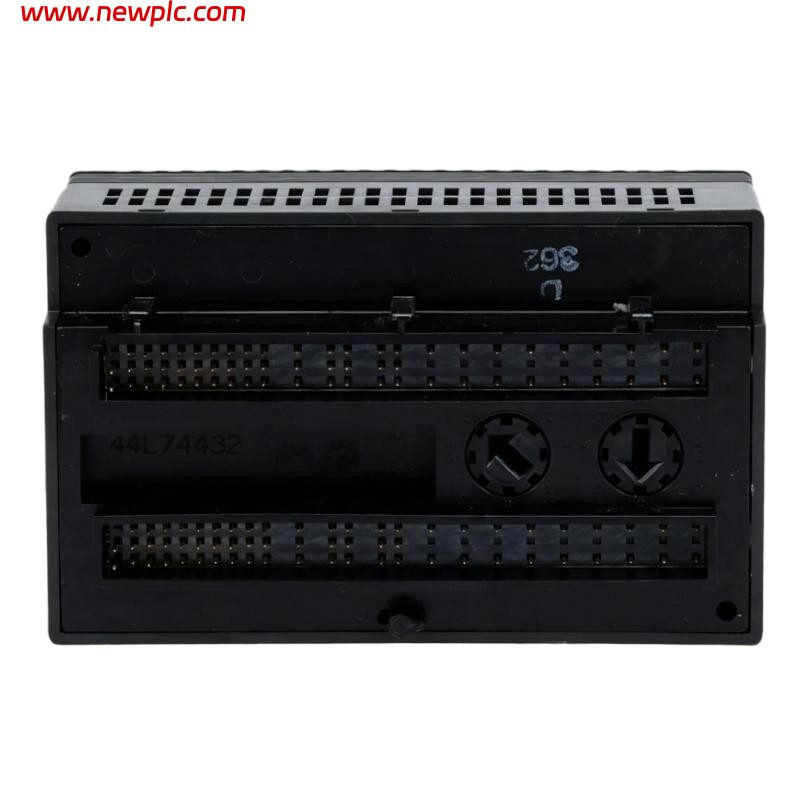

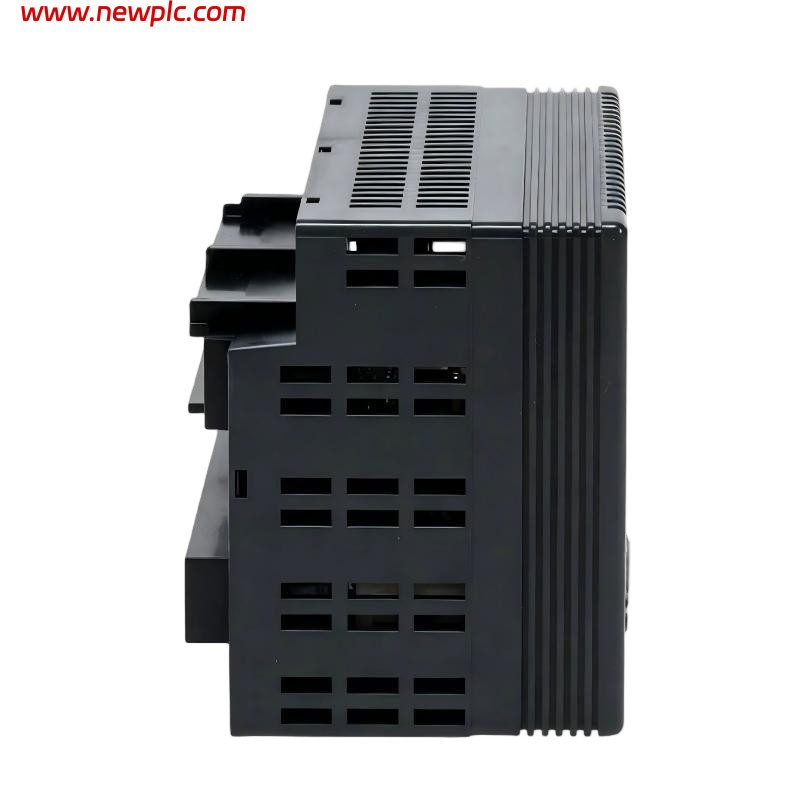

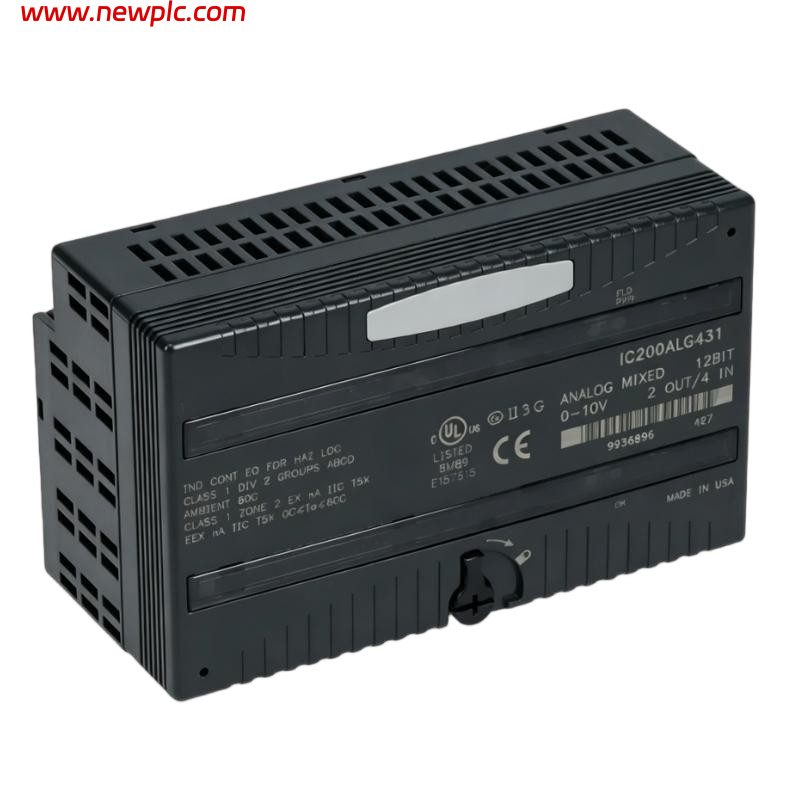

GE IC200ALG431F Analog Mixed I/O Module

FAQ

Q1: What is the GE IC200ALG431F used for?
The IC200ALG431F is used in VersaMax PLC systems to acquire analog voltage signals from field instruments and generate analog voltage control signals for devices such as actuators, controllers, and variable speed drives.

Q2: How many analog channels does the IC200ALG431F provide?
The module provides 6 analog channels in total, including 4 voltage input channels and 2 voltage output channels.

Q3: What voltage signals are supported by the IC200ALG431F?
The module supports 0–10 VDC analog inputs and 0–10 VDC analog outputs.

Q4: What is the resolution of the IC200ALG431F?
The module provides 12-bit analog resolution, equivalent to approximately 2.5 mV per count.

Q5: Does the IC200ALG431F require an external power supply?
Yes. The analog output circuits require an external 18–30 VDC power supply, with a maximum field power consumption of approximately 160 mA.

Q6: What happens to outputs if PLC communication is interrupted?
The output behavior can be configured using a jumper setting. The outputs can either hold the last value or return to a default 0 VDC state when backplane communication or PLC operation is interrupted.

Q7: What diagnostic features are available?
The IC200ALG431F provides LED indicators for module status and field power monitoring. It can also report loss of user-side power faults for field-side circuits.

Q8: What are the advantages of the GE IC200ALG431F?
The IC200ALG431F combines multiple analog functions in one module, reducing system size and wiring requirements. Its 12-bit resolution, fast update rate, voltage input/output capability, isolation protection, and VersaMax compatibility make it suitable for industrial automation and process control applications.
