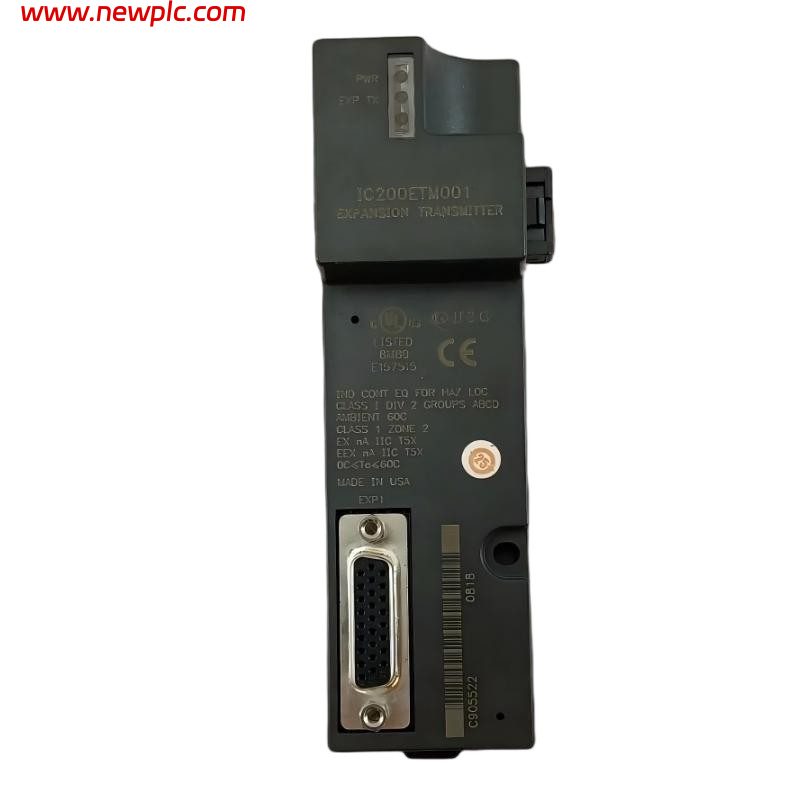

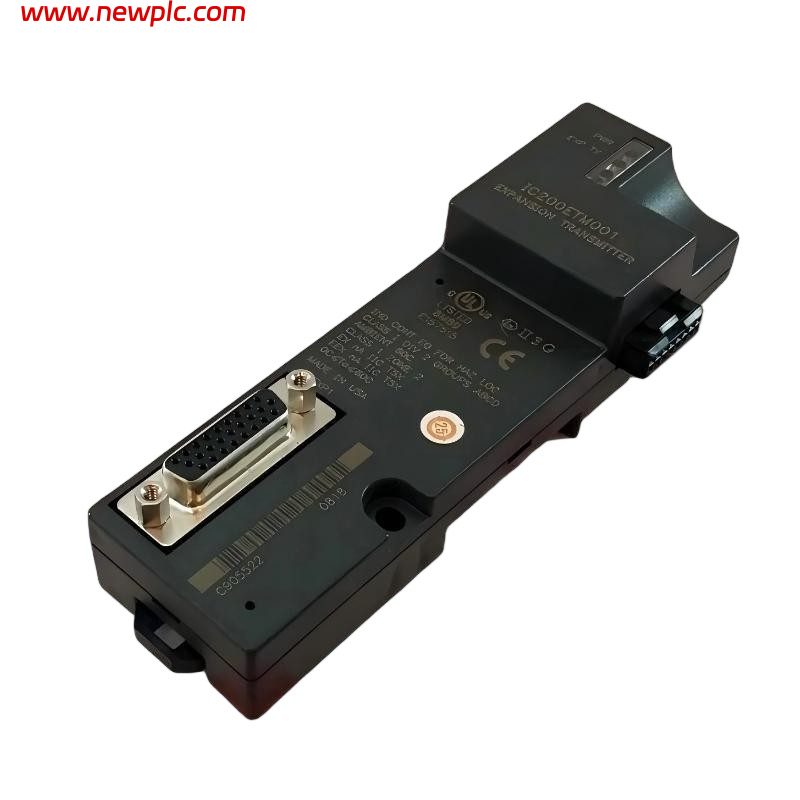

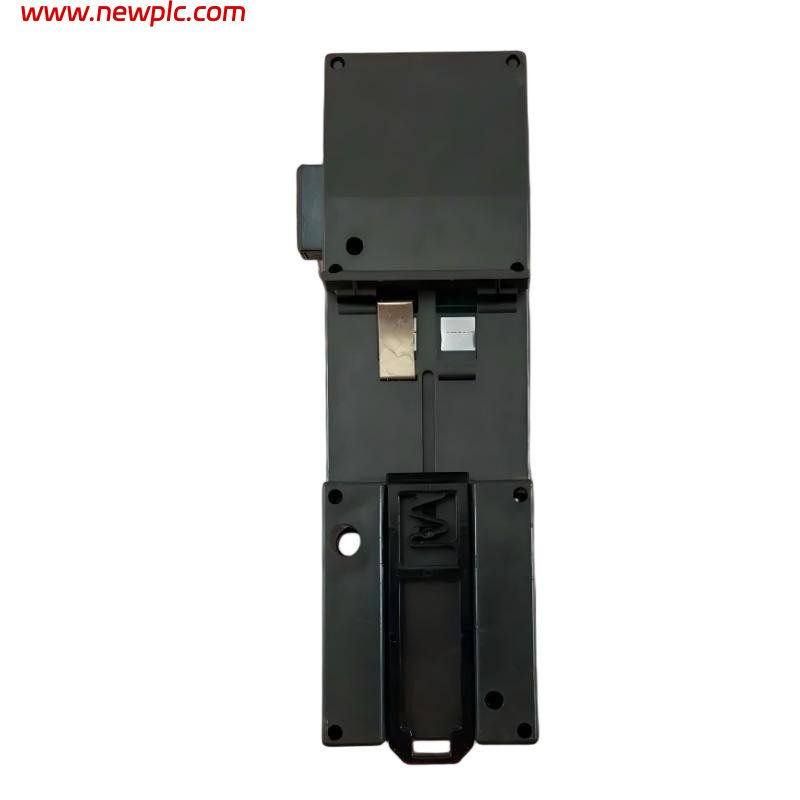

GE IC200ETM001D Expansion Transmitter Module

FAQ

Q1: What is the GE IC200ETM001D used for?
The IC200ETM001D is used to expand a VersaMax PLC system by transmitting the expansion bus communication signal from a CPU or NIU to additional remote I/O racks.

Q2: How many expansion racks can the IC200ETM001D support?
The module can support up to 7 additional expansion racks, allowing a VersaMax system to handle larger distributed I/O configurations.

Q3: Which receiver modules are compatible with the IC200ETM001D?
The IC200ETM001D works with IC200ERM001 isolated expansion receivers and IC200ERM002 non-isolated expansion receivers.

Q4: What are the communication distance limits of the IC200ETM001D?
When used with isolated receivers, the expansion distance can reach approximately 750 meters. With non-isolated receivers, the maximum cable distance is approximately 15 meters.

Q5: What power supply does the IC200ETM001D require?
The module receives 5 VDC power directly from the CPU or NIU backplane and does not require a separate external power supply.

Q6: What connectors are available on the IC200ETM001D?
The module includes a 26-pin female connector for expansion bus connection and a 16-pin serial connector used for firmware update access.

Q7: What diagnostic indicators are available?
The module provides a PWR LED indicating 5 VDC power status and an EXP TX LED indicating expansion bus transmission activity.

Q8: What are the advantages of the GE IC200ETM001D?
The IC200ETM001D provides flexible VersaMax system expansion, long-distance remote I/O capability, reliable differential communication, compatibility with isolated and non-isolated receivers, and easy integration into distributed industrial automation architectures.
