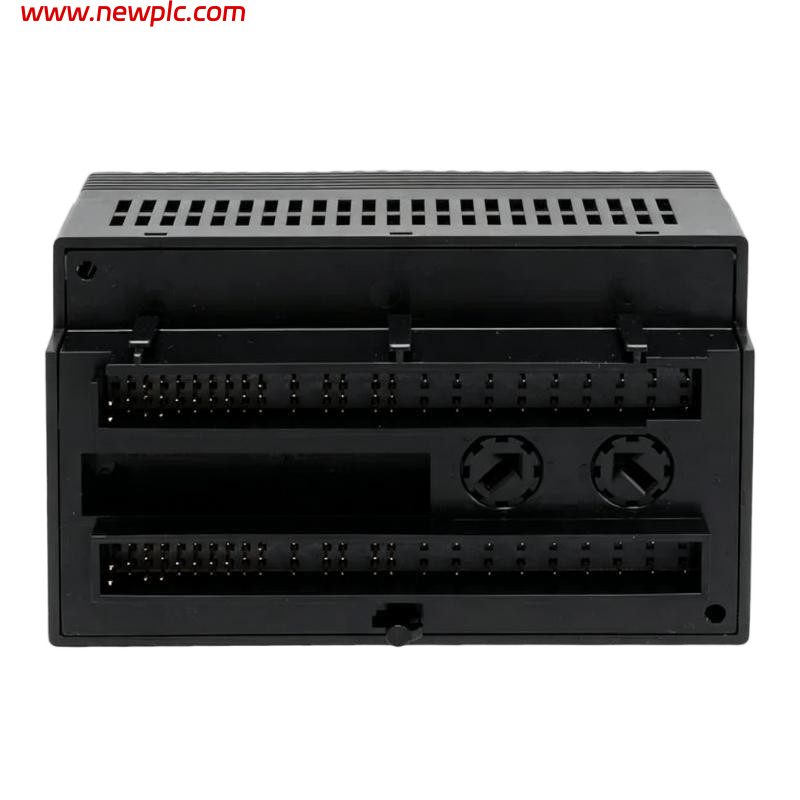

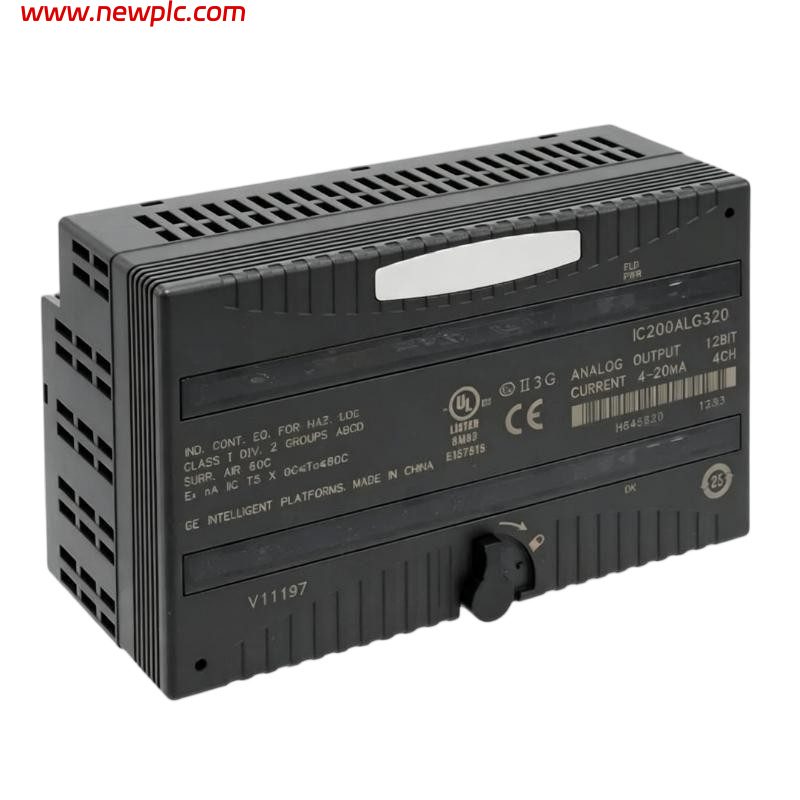

Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | GE Fanuc (now Emerson Automation Solutions) |
| Product Model | IC200ALG320B |
| Product Type | Analog Current Output Module |
| Series | VersaMax I/O |
| Output Type | Analog Current Output (Current Sourcing) |
| Number of Output Channels | 4 single-ended channels |
| Output Groups | 1 group of 4 outputs |
| Output Range | 4–20 mA |
| Resolution | 12-bit |
| Resolution Step | 4 μA per count |
| Maximum Output Current | Approx. 20.38 mA per channel (over-range capability) |
| External Power Supply | 18–30 VDC including ripple |
| Field Power Consumption | 160 mA maximum (including load current) |
| Backplane Current Consumption | 50 mA maximum @ 5 VDC |
| Update Rate | 0.3 ms maximum |
| Accuracy (25°C) | ±0.3% typical; ±0.5% maximum of full scale |
| Output Load | Depends on external supply voltage and load resistance |
| Output Protection | Field power monitoring and output fault protection |
| Isolation | 250 VAC continuous; 1500 VAC for 1 minute |
| LED Indicators | FLD PWR LED (field power present), OK LED (backplane power status) |
| Configuration Features | Jumper selectable output hold-last-state or default state during PLC stop/communication interruption |
| Cable Requirement | Shielded twisted-pair cable recommended |
| Mounting Type | VersaMax Carrier Base |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions (W × H × D) | 50 × 110 × 66.8 mm |
| Weight | Approx. 0.20 kg |
| Application | Control valves, actuators, VFD references, dampers, positioners, and process control equipment |
| Revision | B |
| Condition | New and Original |
| Warranty | 12 months |
FAQ
FAQ
Q1: What is the GE IC200ALG320B used for?
The IC200ALG320B is used to generate analog 4–20 mA control signals for industrial devices such as control valves, actuators, dampers, and drive controllers in VersaMax PLC systems.
Q2: How many analog output channels does the IC200ALG320B provide?
The module provides 4 single-ended analog current output channels arranged in one output group.
Q3: What output signal does the IC200ALG320B support?
The module supports the standard industrial 4–20 mA current output signal and provides approximately 20.38 mA maximum over-range output per channel.
Q4: What is the resolution of the IC200ALG320B?
The module provides 12-bit resolution, with an output resolution of approximately 4 μA per count.
Q5: Does the IC200ALG320B require an external power supply?
Yes. The analog output field circuits require an external 18–30 VDC power supply, with maximum current consumption of approximately 160 mA including load current.
Q6: What are the dimensions and weight of the IC200ALG320B?
The module measures approximately 50 × 110 × 66.8 mm (excluding carrier and connectors). The shipping weight is approximately 1.5 kg, while the module body weight is about 0.2 kg.
Q7: What diagnostic indicators are available on the IC200ALG320B?
The module includes an FLD PWR LED to indicate field power availability and an OK LED to indicate normal backplane power operation.
Q8: What is the difference between IC200ALG320B and earlier revisions?
The IC200ALG320B revision and later versions support installation in VersaMax expansion racks, while the original IC200ALG320 version does not support this feature.
