Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE Fanuc (now Emerson Automation) |

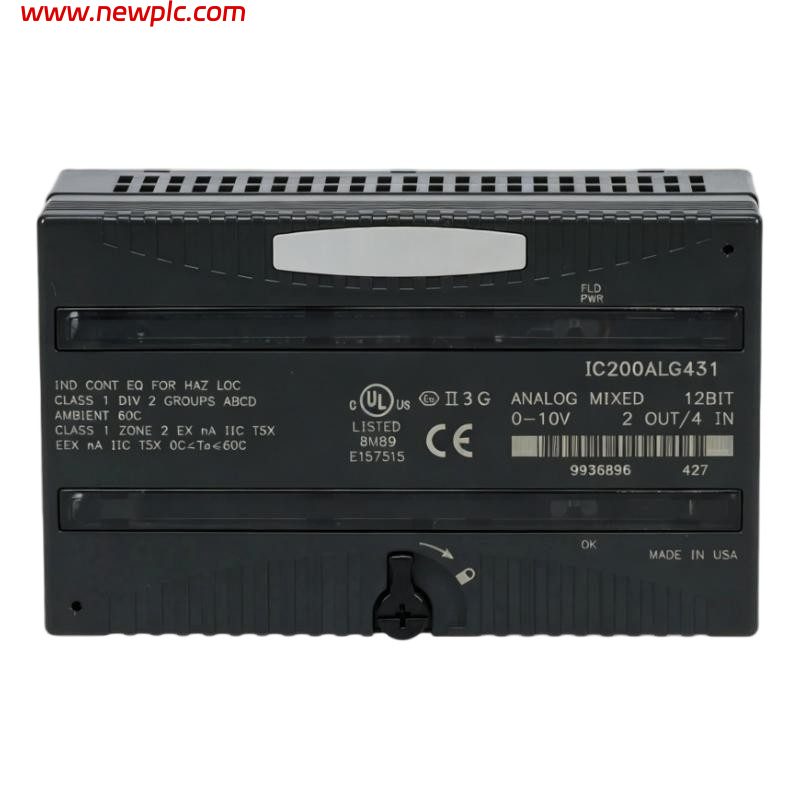

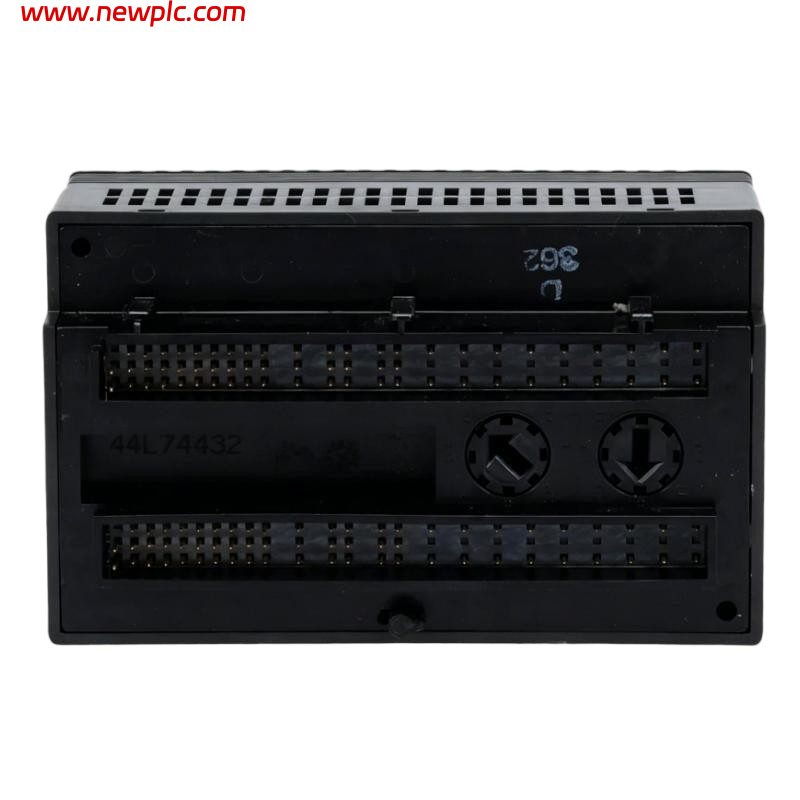

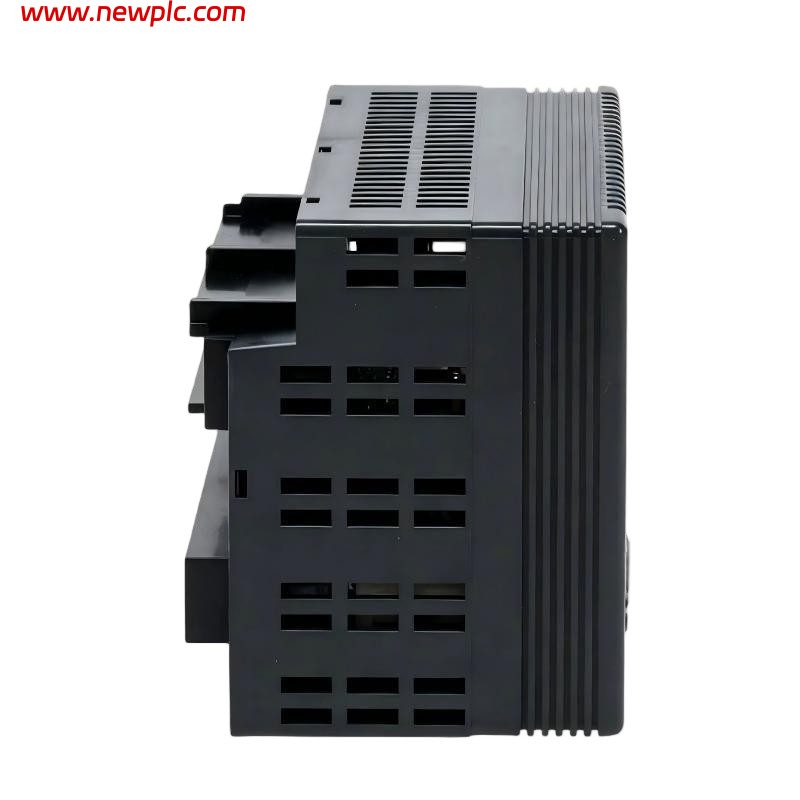

| Product Model | IC200ALG431H |
| Product Type | Analog Mixed I/O Module |
| Series | VersaMax I/O |
| Function | Provides analog voltage input and output channels for VersaMax PLC systems |
| Input Channels | 4 single-ended analog voltage inputs |
| Output Channels | 2 single-ended analog voltage outputs |
| Input Signal Range | 0 to +10 VDC |
| Output Signal Range | 0 to +10 VDC |
| Resolution | 12-bit |
| Analog Input Resolution | 2.5 mV per count |
| Analog Output Resolution | 2.5 mV per count |
| Input Impedance | 120 kΩ typical |
| Output Load Resistance | 5000 Ω minimum |
| Output Capacitive Load | 1 µF maximum |
| Input Filter Response Time | 5 ms |
| Input Conversion Time | Approx. 0.4 ms per channel |
| Output Update Time | Approx. 0.3 ms |
| Accuracy | ±0.3% typical of full scale; ±0.5% maximum at 25°C |
| Isolation | 250 VAC continuous / 1500 VAC for 1 minute |
| External Power Supply | 24 VDC required for analog outputs |
| Backplane Current Consumption | 60 mA @ 5 VDC maximum |
| Field Power Indicator | FLD PWR LED |
| Module Status Indicator | OK LED |
| Wiring Type | Single-ended input/output wiring |
| Compatible Carrier | IC200CHSxxx VersaMax carrier |
| Compatible Systems | GE Fanuc VersaMax PLC |
| Installation Position | Any supported VersaMax I/O carrier position |
| Module Width | Single-slot module |
| Mounting Method | DIN rail mounted via VersaMax carrier |
| Operating Temperature | 0°C to +60°C (32°F to +140°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Relative Humidity | 5–95% RH (non-condensing) |
| Dimensions (H × W × D) | Approx. 66.8 × 109 × 50 mm (2.63 × 4.30 × 1.96 in.) |
| Weight | Approx. 0.34 kg (0.75 lb) |
| Hardware Revision | H |
| Product Status | Legacy Product |
| Warranty | 12 Months |
FAQ
FAQ
Q1: What is the GE Fanuc IC200ALG431H used for?
The IC200ALG431H is used in VersaMax PLC systems for processing analog voltage signals from field sensors and generating analog control outputs for industrial devices such as actuators and control valves.
Q2: How many analog channels does the IC200ALG431H provide?
The module provides 4 analog input channels and 2 analog output channels, all using 0–10 VDC voltage signals.
Q3: What type of input signals can the IC200ALG431H accept?
The module accepts 0 to +10 VDC single-ended analog input signals from compatible voltage-output transmitters and sensors.
Q4: What type of outputs does the IC200ALG431H provide?
The module provides two 0–10 VDC analog outputs for controlling external devices such as drives, valves, and proportional controllers.
Q5: What is the resolution of the IC200ALG431H?
The module uses a 12-bit analog conversion resolution, providing approximately 2.5 mV resolution per count.
Q6: Does the IC200ALG431H require an external power supply?
Yes. The analog output section requires an external 24 VDC field power supply to generate output voltage signals.
Q7: Which PLC systems are compatible with the IC200ALG431H?
The IC200ALG431H is designed for GE Fanuc VersaMax PLC systems and requires installation on an appropriate IC200CHS series carrier.
Q8: What should be checked before replacing an IC200ALG431H module?
Before replacement, verify the VersaMax carrier compatibility, analog wiring configuration, 0–10 VDC signal ranges, external 24 VDC output power supply, PLC hardware configuration, and module revision to ensure correct operation.
