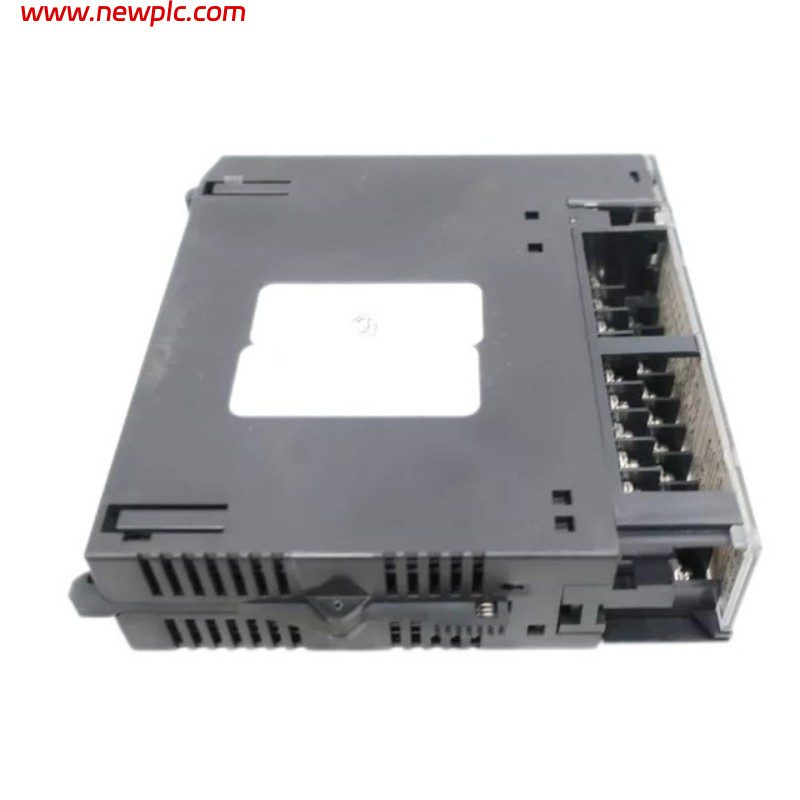

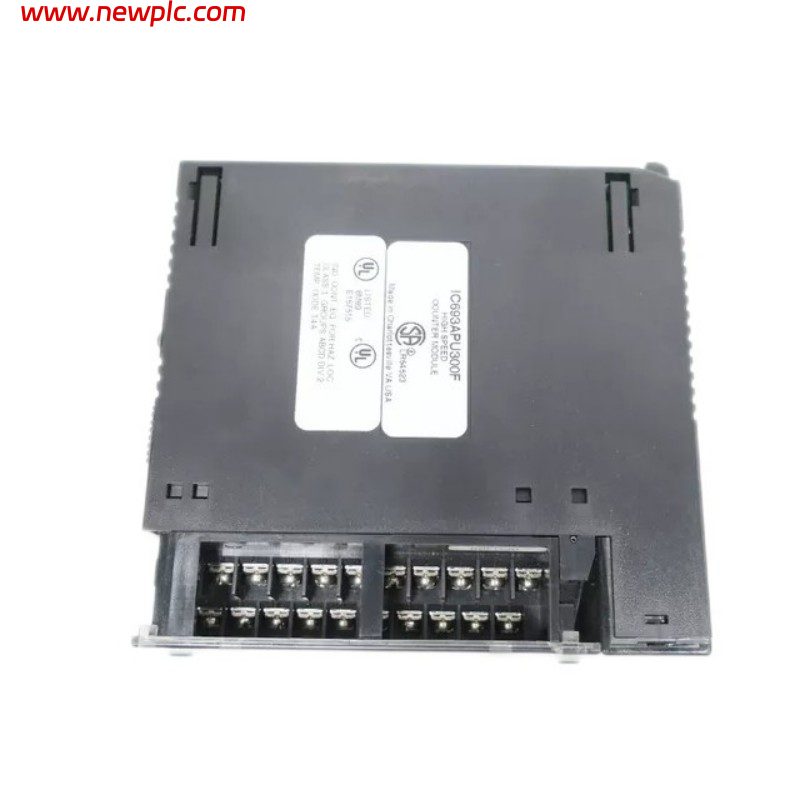

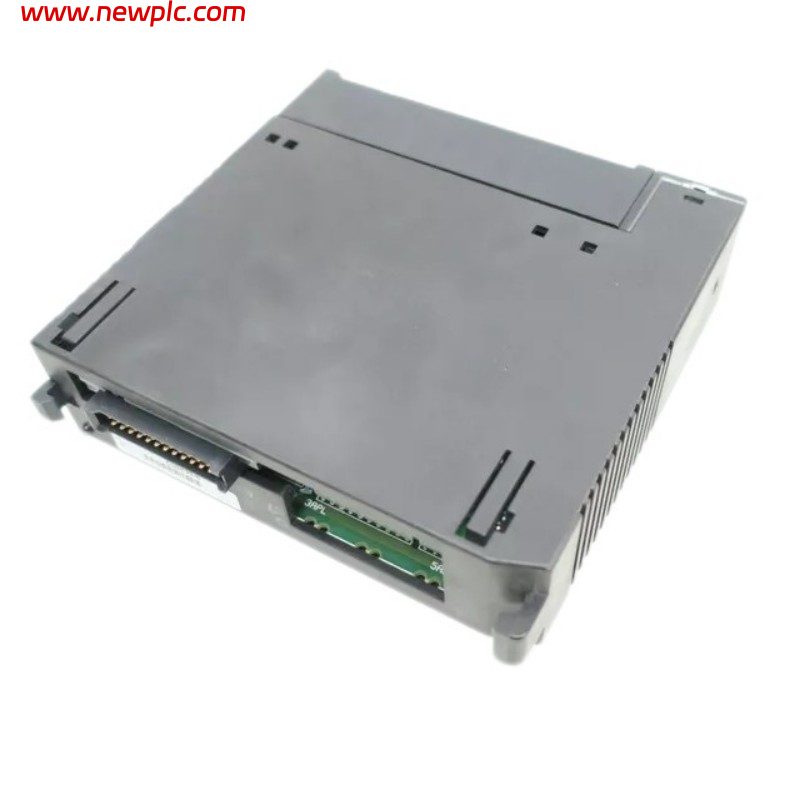

Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE Fanuc (now Emerson Automation) |
| Product Model | IC693APU300H |
| Product Type | High-Speed Counter Module |
| Series | Series 90-30 PLC |
| Function | Provides high-speed pulse counting and frequency measurement beyond normal PLC scan capability |
| Module Type | Single-slot intelligent specialty module |
| Number of Input Channels | 12 positive logic inputs |
| Number of Output Channels | 4 positive logic outputs |
| Input Voltage Range | 5 VDC or 10–30 VDC |
| Input Type | Positive logic pulse inputs |
| Maximum Count Rate | Up to 200 kHz (standard operation) |
| Enhanced Input Frequency | Up to 1 MHz (with enhanced features) |
| Counter Modes | Up counter, down counter, up/down counter, differential counter |
| Encoder Support | Supports A Quad B quadrature encoder inputs |
| Counter Size | Supports 32-bit counters |
| Frequency Measurement | Supported |
| Z Input Event | Supported |
| Windowing Function | Supported |
| Output Type | Positive logic transistor outputs |
| Output Voltage | 10–30 VDC |
| Output Current | 500 mA maximum per output |
| Low Voltage Output Rating | 4.75–6 VDC @ 20 mA |
| Output Protection | Short-circuit protection with 3 A fuse |
| Backplane Current Consumption | 250 mA @ 5 VDC |
| Isolation Voltage | 250 VAC |
| LED Indicators | BOARD OK, CONFIG OK, output/input status indicators |
| Configuration Method | Hand-held programmer, Logicmaster 90-30, VersaPro, Proficy Machine Edition |
| Compatible PLC Platform | GE Fanuc Series 90-30 |
| Installation Position | Any available Series 90-30 I/O slot |
| Terminal Block | Removable terminal board |
| Mounting Method | Rack-mounted PLC module |
| Operating Temperature | 0°C to +60°C (32°F to +140°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Relative Humidity | 5–95% RH (non-condensing) |
| Dimensions (H × W × D) | Approx. 130 × 38 × 130 mm (5.12 × 1.50 × 5.12 in.) |
| Weight | Approx. 0.30 kg (0.66 lb) |
| Hardware Revision | H |
| Product Status | Legacy Product |
| Warranty | 12 Months |
FAQ
FAQ
Q1: What is the GE Fanuc IC693APU300H used for?
The IC693APU300H is used for high-speed counting and pulse measurement applications where standard PLC inputs cannot process signals fast enough, such as encoders, flow meters, and high-speed machine feedback devices.
Q2: How many input and output channels does the IC693APU300H provide?
The module provides 12 positive logic input channels and 4 positive logic output channels for high-speed control applications.
Q3: What is the maximum counting speed of the IC693APU300H?
The module supports high-speed counting up to 200 kHz in standard operation, with enhanced configurations supporting higher-frequency input processing.
Q4: Can the IC693APU300H work with encoders?
Yes. The module supports A Quad B quadrature encoder signals, allowing it to be used for position and speed feedback applications.
Q5: What counter modes are supported by the IC693APU300H?
The module supports up counting, down counting, bidirectional counting, and differential counting modes to meet different automation requirements.
Q6: What type of outputs does the IC693APU300H provide?
The module provides four positive logic transistor outputs rated up to 10–30 VDC at 500 mA per output, with protection against short circuits.
Q7: Which PLC systems are compatible with the IC693APU300H?
The IC693APU300H is designed for GE Fanuc Series 90-30 PLC systems and can be installed in any compatible Series 90-30 I/O slot.
Q8: What should be checked before replacing an IC693APU300H module?
Before replacement, verify the Series 90-30 rack configuration, module configuration parameters, encoder or pulse input wiring, output load requirements, PLC program settings, and terminal connections to ensure correct operation.
