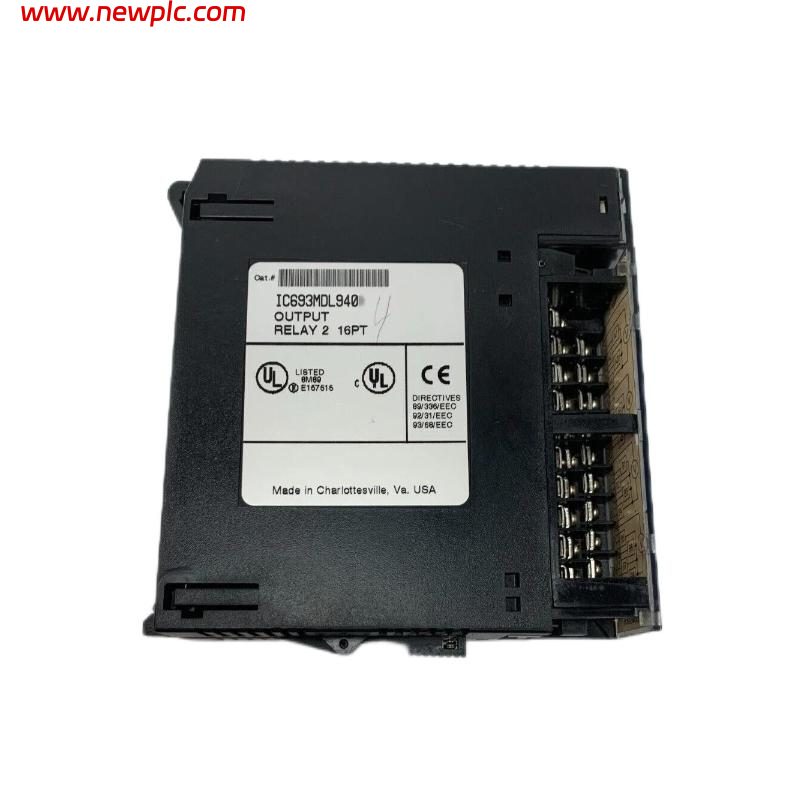

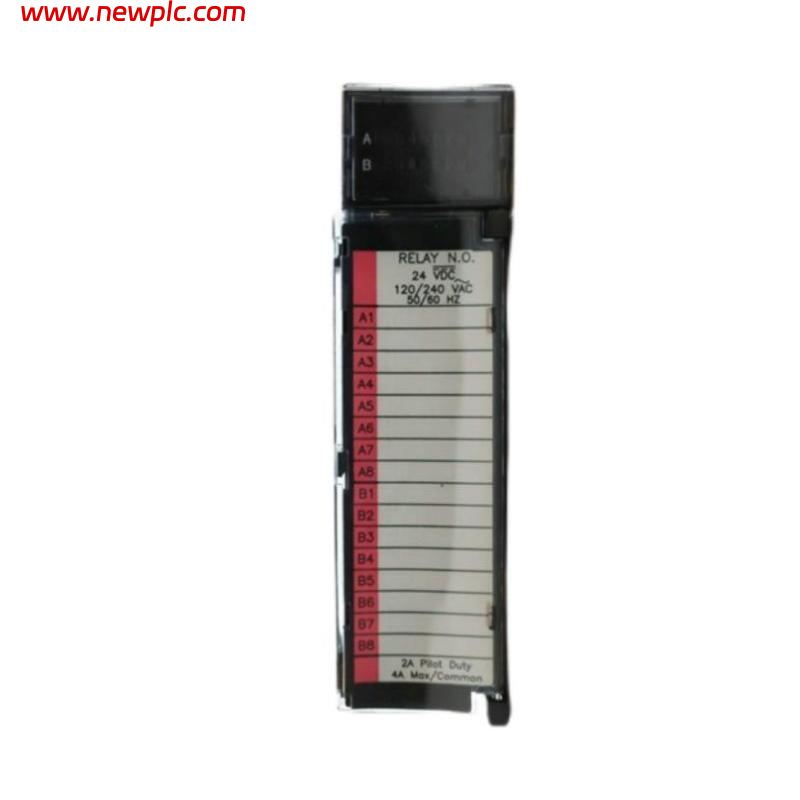

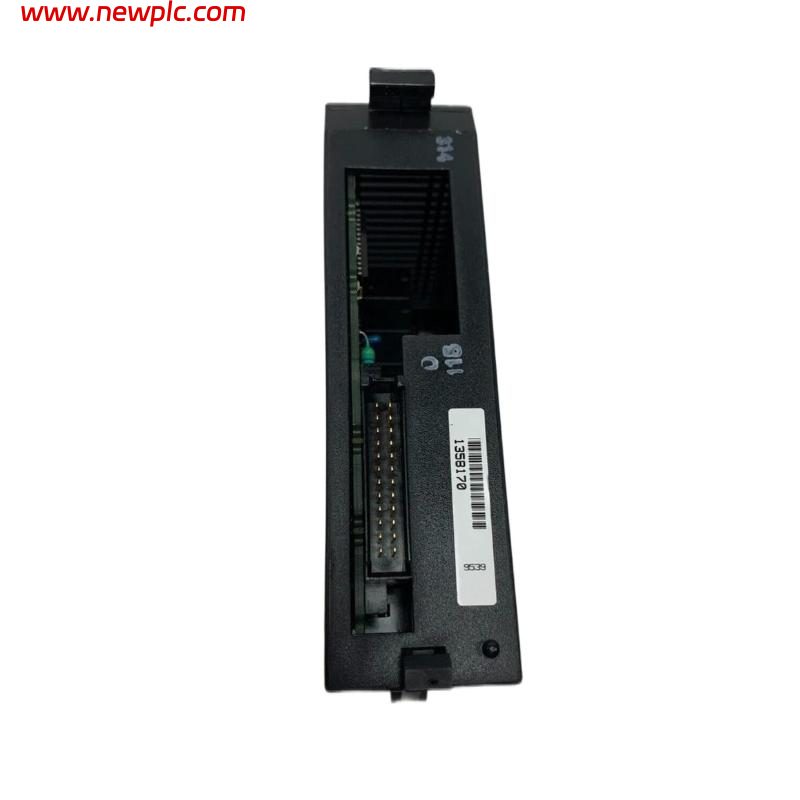

Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE Fanuc (now Emerson Automation) |
| Product Model | IC693MDL940F |
| Product Type | Relay Output Module |
| Series | Series 90-30 PLC |
| Function | Provides relay-based switching outputs for AC and DC field devices |
| Output Type | Normally Open (N.O.) Relay Output |
| Number of Outputs | 16 points |
| Output Configuration | 4 groups of 4 outputs each |
| Rated Voltage | 24 VDC / 120 VAC / 240 VAC |
| DC Operating Voltage Range | 5–30 VDC |
| AC Operating Voltage Range | 5–250 VAC, 50/60 Hz |
| Maximum Output Current | 2 A per output point |
| Maximum Current per Common | 4 A |
| Minimum Load Current | 10 mA |
| Maximum Inrush Current | 5 A |
| Contact Form | Form A (SPST Normally Open) |
| Output Isolation | 500 VAC between output groups |
| Field-to-Logic Isolation | 1500 VAC |
| ON Response Time | 15 ms maximum |
| OFF Response Time | 15 ms maximum |
| Backplane Current Consumption | 7 mA @ 5 VDC |
| Relay Supply Current | 135 mA @ 24 VDC (all outputs ON) |
| LED Indicators | Individual output status LEDs |
| Terminal Block | 20-position removable terminal block |
| Compatible Baseplates | GE Fanuc Series 90-30 5-slot and 10-slot baseplates |
| Installation Position | Any available I/O slot in Series 90-30 rack |
| Compatible Systems | GE Fanuc Series 90-30 PLC |
| Mounting Method | Rack-mounted PLC module |
| Operating Temperature | 0°C to +60°C (32°F to +140°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Relative Humidity | 5–95% RH (non-condensing) |
| Dimensions (H × W × D) | Approx. 130 × 38 × 130 mm (5.12 × 1.50 × 5.12 in.) |
| Weight | Approx. 0.30–0.43 kg (0.66–0.95 lb) |
| Hardware Revision | F |
| Product Status | Legacy Product |
| Warranty | 12 Months |
FAQ
FAQ
Q1: What is the GE Fanuc IC693MDL940F used for?
The IC693MDL940F is used in Series 90-30 PLC systems to switch external AC or DC loads through relay contacts, including motors, valves, contactors, and control lamps.
Q2: How many outputs does the IC693MDL940F provide?
The module provides 16 relay output points, arranged as four groups of four outputs for flexible power distribution.
Q3: What voltage loads can the IC693MDL940F control?
The module supports 5–30 VDC and 5–250 VAC (50/60 Hz) loads, allowing it to control a wide range of industrial devices.
Q4: What is the maximum current rating of each output?
Each relay output can handle up to 2 A maximum load current, while each common terminal supports up to 4 A.
Q5: Does the IC693MDL940F provide electrical isolation?
Yes. The module provides 1500 VAC isolation between field circuits and PLC logic and 500 VAC isolation between output groups to improve system protection.
Q6: What type of relay contacts are used on the IC693MDL940F?
The module uses normally open (Form A / SPST) relay contacts for switching external loads.
Q7: Which PLC systems are compatible with the IC693MDL940F?
The IC693MDL940F is designed for GE Fanuc Series 90-30 PLC systems and can be installed in compatible Series 90-30 baseplates.
Q8: What should be checked before replacing an IC693MDL940F module?
Before replacement, check the Series 90-30 rack configuration, relay output voltage requirements, load current ratings, terminal wiring, field power supply, and PLC hardware configuration to ensure correct operation.
