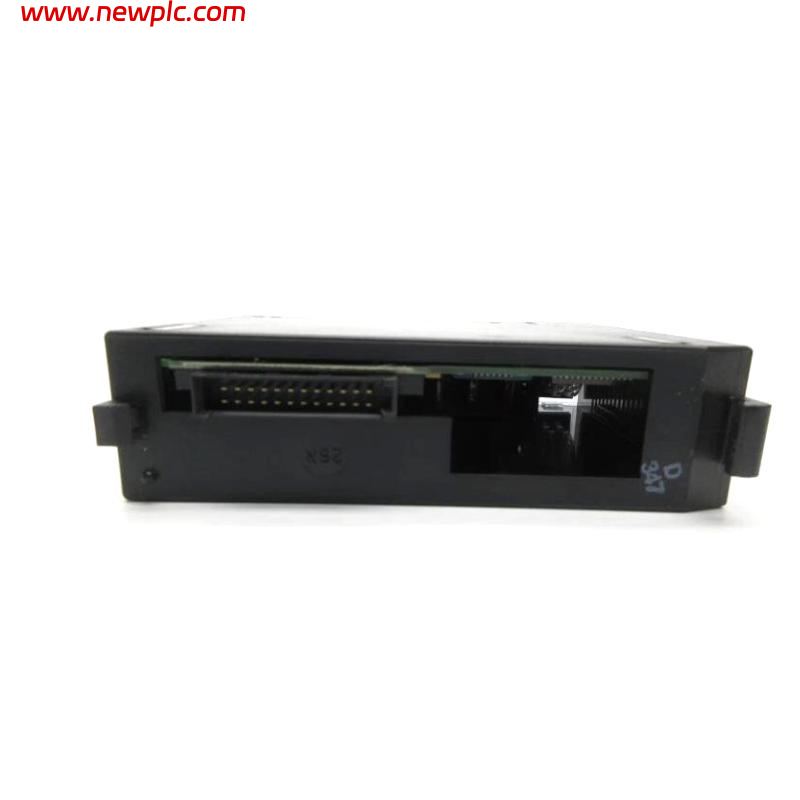

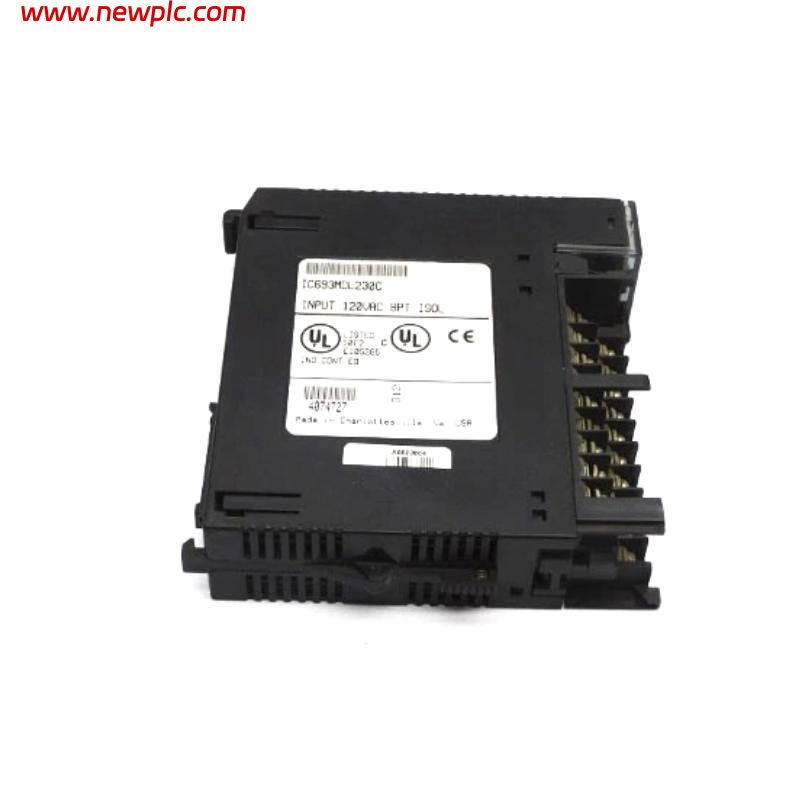

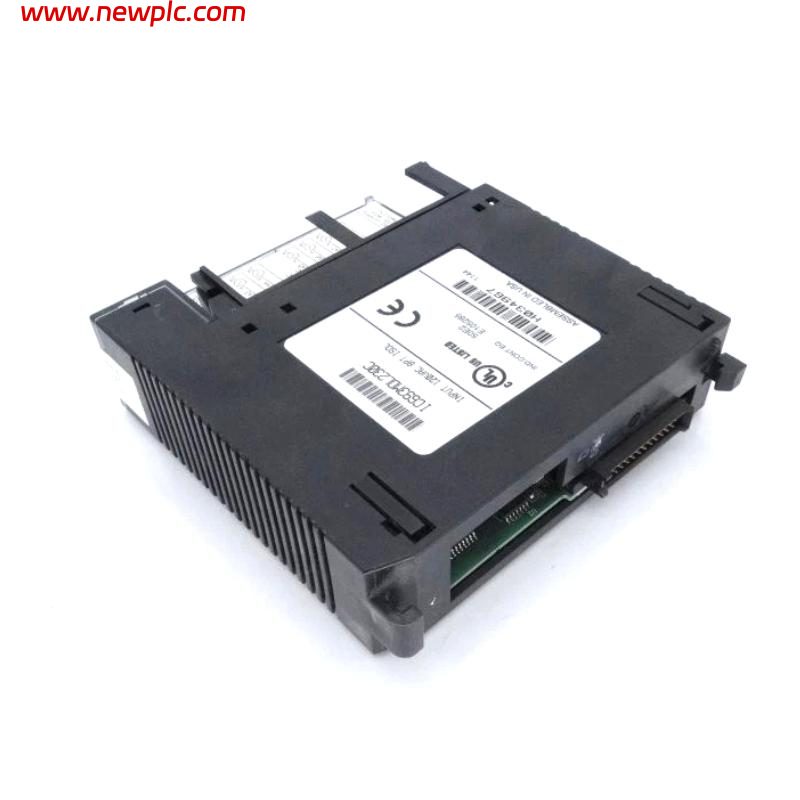

Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE Fanuc (now Emerson Automation) |
| Product Model | IC693MDL230C |
| Product Type | AC Isolated Input Module |
| Series | Series 90-30 PLC |
| Function | Receives isolated 120 VAC field input signals from industrial switches and sensors |
| Input Type | 120 VAC Isolated Input |
| Number of Inputs | 8 points |
| Input Configuration | Each input point has an individual common terminal |
| Rated Input Voltage | 120 VAC |
| Input Voltage Range | 0–132 VAC, 50/60 Hz |
| Input Frequency | 50/60 Hz |
| Input Current | 14.5 mA typical at rated voltage |
| ON-State Voltage | 74–132 VAC |
| OFF-State Voltage | 0–20 VAC |
| ON-State Current | 6 mA minimum |
| OFF-State Current | 2.2 mA maximum |
| Input Circuit Type | Reactive input (resistor/capacitor type) |
| Isolation | 1500 VAC RMS field side to logic side |
| Input-to-Input Isolation | 500 VAC RMS between input points |
| Input Response Time (ON) | 30 ms maximum |
| Input Response Time (OFF) | 45 ms maximum |
| Backplane Current Consumption | 60 mA @ 5 VDC (all inputs ON) |
| LED Indicators | 8 individual green input status LEDs |
| Terminal Block | 20-point removable terminal block |
| Field Power Supply | User supplied 120 VAC source required |
| DC Operation | Not supported |
| Compatible Baseplates | GE Fanuc Series 90-30 5-slot and 10-slot baseplates |
| Installation Position | Any available Series 90-30 I/O slot |
| Compatible Systems | GE Fanuc Series 90-30 PLC |
| Mounting Method | Rack-mounted PLC module |
| Operating Temperature | 0°C to +60°C (32°F to +140°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Relative Humidity | 5–95% RH (non-condensing) |
| Dimensions (H × W × D) | Approx. 130 × 35 × 130 mm (5.12 × 1.38 × 5.12 in.) |
| Weight | Approx. 0.18 kg (0.40 lb) |
| Hardware Revision | C |
| Product Status | Legacy Product |
| Warranty | 12 Months |
FAQ
FAQ
Q1: What is the GE Fanuc IC693MDL230C used for?
The IC693MDL230C is used to collect 120 VAC ON/OFF signals from industrial field devices and send their status information to a GE Fanuc Series 90-30 PLC CPU.
Q2: How many input channels does the IC693MDL230C provide?
The module provides 8 isolated AC input channels, with each input point having its own common connection.
Q3: What voltage signals can the IC693MDL230C accept?
The module accepts 120 VAC input signals with an operating range of 0 to 132 VAC at 50/60 Hz.
Q4: Can the IC693MDL230C be used with DC input signals?
No. The IC693MDL230C is designed specifically for AC input applications and cannot be used with DC power sources.
Q5: What types of field devices can connect to the IC693MDL230C?
The module can connect to devices such as push buttons, limit switches, relay contacts, and electronic proximity switches that provide 120 VAC signals.
Q6: Does the IC693MDL230C provide electrical isolation?
Yes. The module provides 1500 VAC RMS isolation between the field side and PLC logic side, and 500 VAC RMS isolation between input points.
Q7: What indicates the status of each input point?
The module includes eight LED indicators, with each LED showing the ON/OFF status of one input channel.
Q8: What should be checked before replacing an IC693MDL230C module?
Before replacement, verify the Series 90-30 rack compatibility, 120 VAC field wiring, input device ratings, terminal connections, PLC configuration, and module revision to ensure correct operation.
