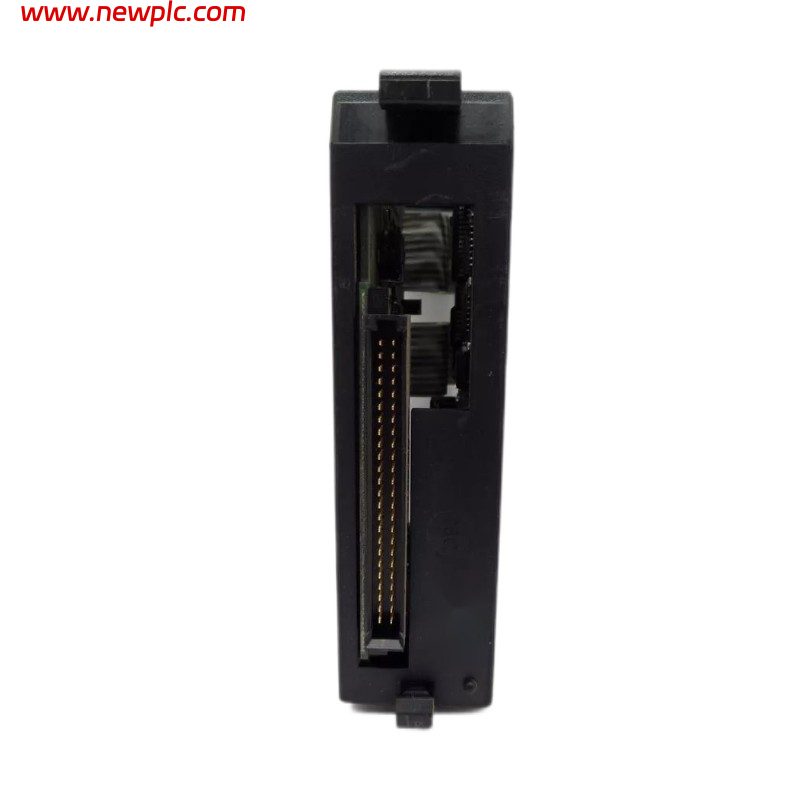

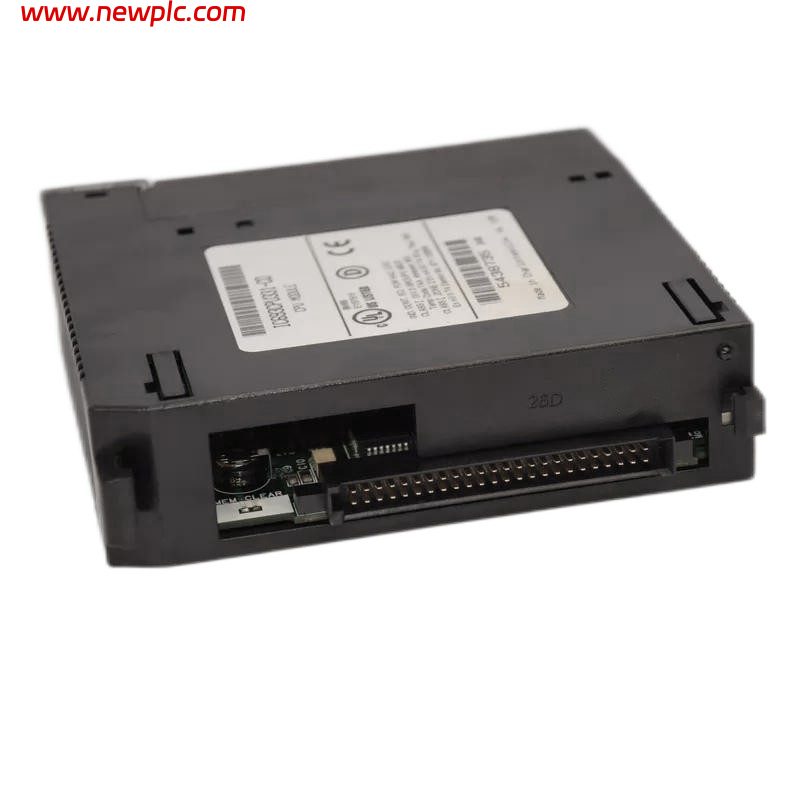

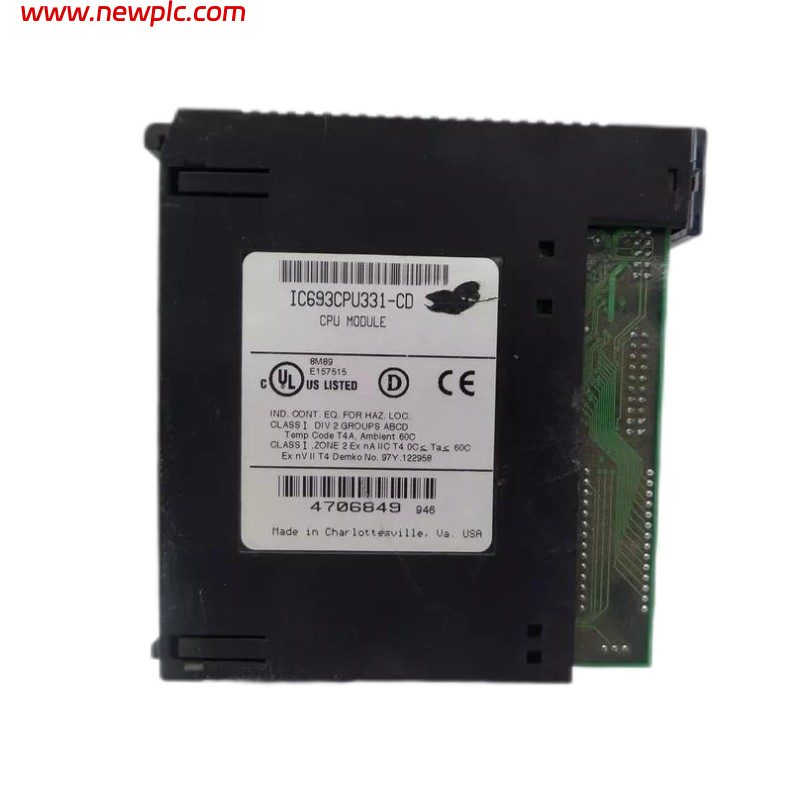

Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE Fanuc (now Emerson Automation) |
| Product Model | IC693CPU331-CD |
| Product Type | CPU Module |
| Series | Series 90-30 PLC |
| Function | Main processor module for GE Fanuc Series 90-30 PLC control systems |
| CPU Type | Single-slot modular CPU |
| Processor | 80188 Microprocessor |
| Processor Speed | 10 MHz |
| User Program Memory | 16 KB |
| Boolean Execution Speed | 0.4 ms per 1K Boolean logic |
| Discrete Inputs (%I) | 512 points maximum |
| Discrete Outputs (%Q) | 512 points maximum |
| Analog Inputs (%AI) | 128 words maximum |
| Analog Outputs (%AQ) | 64 words maximum |
| Register Memory (%R) | 9999 words |
| Internal Memory (%M) | 1024 bits |
| Temporary Memory (%T) | 256 bits |
| System Memory (%S) | 128 bits |
| Discrete Global Memory (%G) | 1280 bits |
| Timers/Counters | 680 timers/counters maximum |
| Floating Point Math | Not supported |
| Serial Communication | 1 serial port |
| Communication Protocols | SNP / SNP-X Slave |
| Serial Port Location | Through Series 90-30 power supply serial connector |
| Expansion Capability | Supports expansion and remote I/O baseplates |
| Maximum Baseplates | 1 CPU baseplate + up to 4 expansion/remote baseplates |
| Interrupt Capability | Not supported |
| Override Function | Supported |
| Battery Backup | Supported |
| Programming Software | Proficy Machine Edition / VersaPro |
| Compatible PLC Platform | GE Fanuc Series 90-30 |
| Backplane Power Consumption | 350 mA @ 5 VDC |
| Operating Temperature | 0°C to +60°C (32°F to +140°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Relative Humidity | 5–95% RH (non-condensing) |
| Dimensions (H × W × D) | Approx. 130 × 51 × 127 mm (5.12 × 2.0 × 5.0 in.) |
| Weight | Approx. 0.34 kg (0.75 lb) |
| Hardware Revision | CD |
| Product Status | Legacy Product |
| Warranty | 12 Months |
FAQ
FAQ
Q1: What is the GE Fanuc IC693CPU331-CD used for?
The IC693CPU331-CD is used as the central processing unit in GE Fanuc Series 90-30 PLC systems. It executes control programs, manages I/O scanning, and coordinates communication with connected modules.
Q2: What processor does the IC693CPU331-CD use?
The module uses an 80188 microprocessor operating at 10 MHz.
Q3: How much program memory is available in the IC693CPU331-CD?
The CPU provides 16 KB of user program memory for storing ladder logic and PLC application programs.
Q4: How many I/O points can the IC693CPU331-CD support?
The CPU supports up to 512 discrete inputs (%I) and 512 discrete outputs (%Q), with additional analog memory areas available for analog modules.
Q5: What communication functions are supported by the IC693CPU331-CD?
The CPU includes one serial communication port supporting SNP and SNP-X slave protocols for programming and PLC communication.
Q6: Can the IC693CPU331-CD support expansion racks?
Yes. The CPU can support a configuration consisting of one CPU baseplate plus up to four expansion or remote baseplates.
Q7: Which software can be used to program the IC693CPU331-CD?
The CPU can be programmed using GE Fanuc software platforms including VersaPro and later Proficy Machine Edition.
Q8: What should be checked before replacing an IC693CPU331-CD?
Before replacement, verify the Series 90-30 rack configuration, CPU firmware compatibility, PLC program backup, battery status, power supply capacity, communication settings, and connected I/O modules to ensure a smooth replacement process.
