Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE Fanuc (now Emerson Automation) |

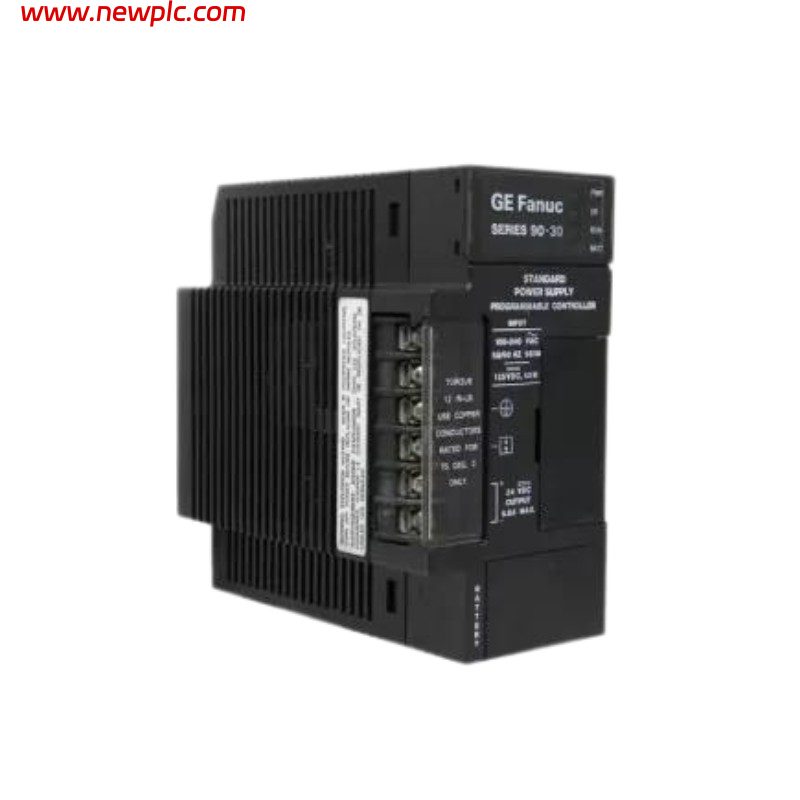

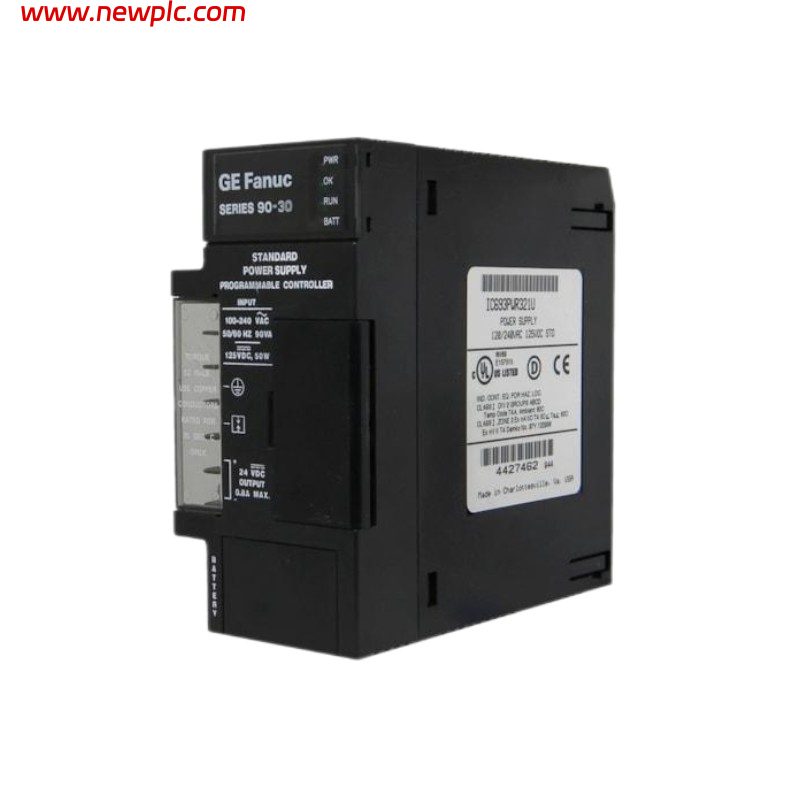

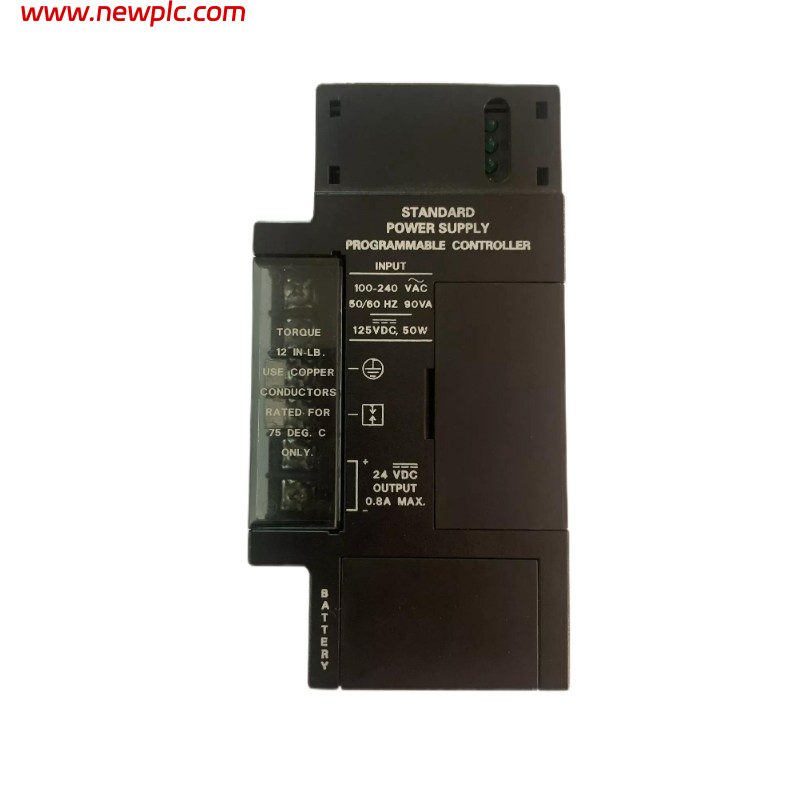

| Product Model | IC693PWR321T |
| Product Type | Standard AC/DC Power Supply Module |
| Series | Series 90-30 PLC |
| Function | Provides regulated power for Series 90-30 CPU, I/O modules, and relay circuits |
| Power Rating | 30 Watts |
| Input Voltage Type | AC/DC Universal Input |
| Nominal Input Voltage | 120/240 VAC or 125 VDC |
| AC Input Voltage Range | 85–264 VAC |
| DC Input Voltage Range | 100–300 VDC |
| Input Frequency | 47–63 Hz |
| Maximum Input Power | 90 VA (AC input) / 50 W (DC input) |
| Inrush Current | 4 A peak maximum (250 ms) |
| Output Voltage 1 | +5 VDC |
| +5 VDC Output Capacity | 15 W maximum |
| Output Voltage 2 | +24 VDC Isolated |
| +24 VDC Isolated Output Capacity | 20 W maximum |
| Output Voltage 3 | +24 VDC Relay Power |
| +24 VDC Relay Output Capacity | 15 W maximum |
| Total Output Power | 30 W maximum combined |
| +5 VDC Regulation | 5.0–5.2 VDC (5.1 VDC nominal) |
| +24 VDC Relay Output | 24–28 VDC |
| +24 VDC Isolated Output | 21.5–28 VDC |
| Protection Features | Overvoltage protection, overcurrent protection, short-circuit protection |
| Hold-up Time | 20 ms minimum |
| Installation Position | Leftmost slot of Series 90-30 baseplate |
| Compatible PLC Platform | GE Fanuc Series 90-30 PLC |
| Compatible CPU Modules | All Series 90-30 CPU models |
| Communication Interface | RS-485 serial port compatible |
| Battery Backup | Supports Series 90-30 lithium battery backup |
| Status Indicators | POWER, SYSTEM, RUN, BATT LEDs |
| Terminal Block | Removable screw terminal block |
| Mounting Method | Rack-mounted PLC module |
| Operating Temperature | 0°C to +60°C (32°F to +140°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Relative Humidity | 5–95% RH (non-condensing) |
| Dimensions (H × W × D) | Approx. 130 × 51 × 127 mm (5.12 × 2.0 × 5.0 in.) |
| Weight | Approx. 0.45 kg (0.99 lb) |
| Hardware Revision | T |
| Product Status | Legacy Product |
| Warranty | 12 Months |
FAQ
FAQ
Q1: What is the GE Fanuc IC693PWR321T used for?
The IC693PWR321T is used to supply regulated DC power to GE Fanuc Series 90-30 PLC systems, including CPU modules, I/O modules, and relay output circuits.
Q2: What input voltage does the IC693PWR321T support?
The module supports 120/240 VAC or 125 VDC nominal input, with an operating range of 85–264 VAC or 100–300 VDC.
Q3: What are the output voltages provided by the IC693PWR321T?
The power supply provides three outputs: +5 VDC, +24 VDC isolated, and +24 VDC relay power for different Series 90-30 system requirements.
Q4: What is the maximum power output of the IC693PWR321T?
The module provides 30 watts maximum total output power across all outputs combined.
Q5: Where should the IC693PWR321T be installed in a Series 90-30 rack?
The IC693PWR321T must be installed in the leftmost slot of the Series 90-30 baseplate.
Q6: Does the IC693PWR321T provide protection functions?
Yes. The module includes protection features such as overvoltage protection, overcurrent protection, and short-circuit protection to protect the PLC system.
Q7: Is the IC693PWR321T compatible with all Series 90-30 CPUs?
Yes. The IC693PWR321T is designed for use with GE Fanuc Series 90-30 PLC systems and is compatible with Series 90-30 CPU modules.
Q8: What should be checked before replacing an IC693PWR321T module?
Before replacement, verify the input voltage type, baseplate slot location, total PLC power requirements, field wiring connections, battery condition, and compatibility with the existing Series 90-30 hardware configuration.
