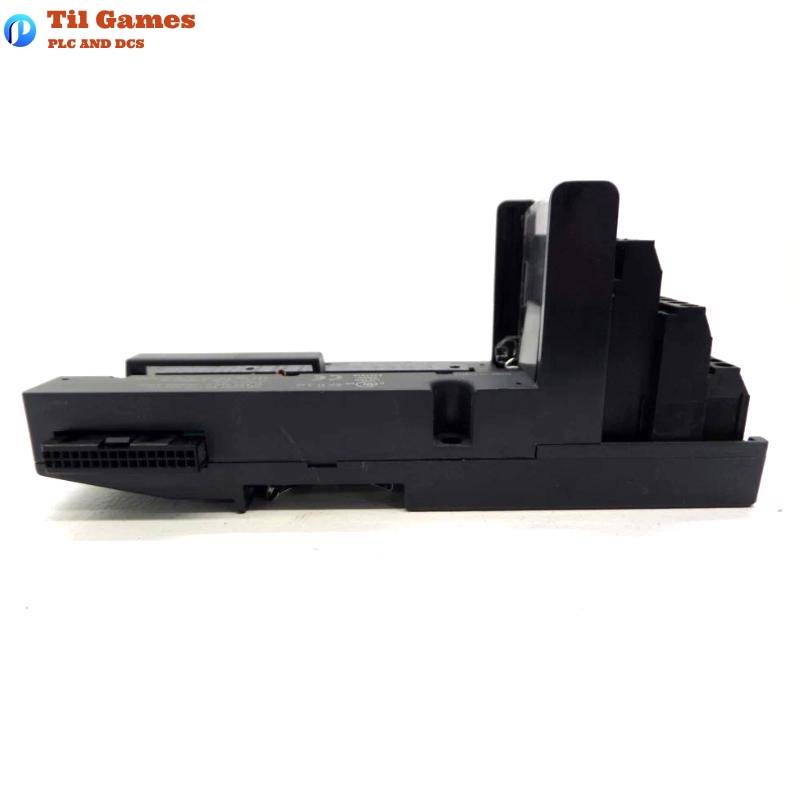

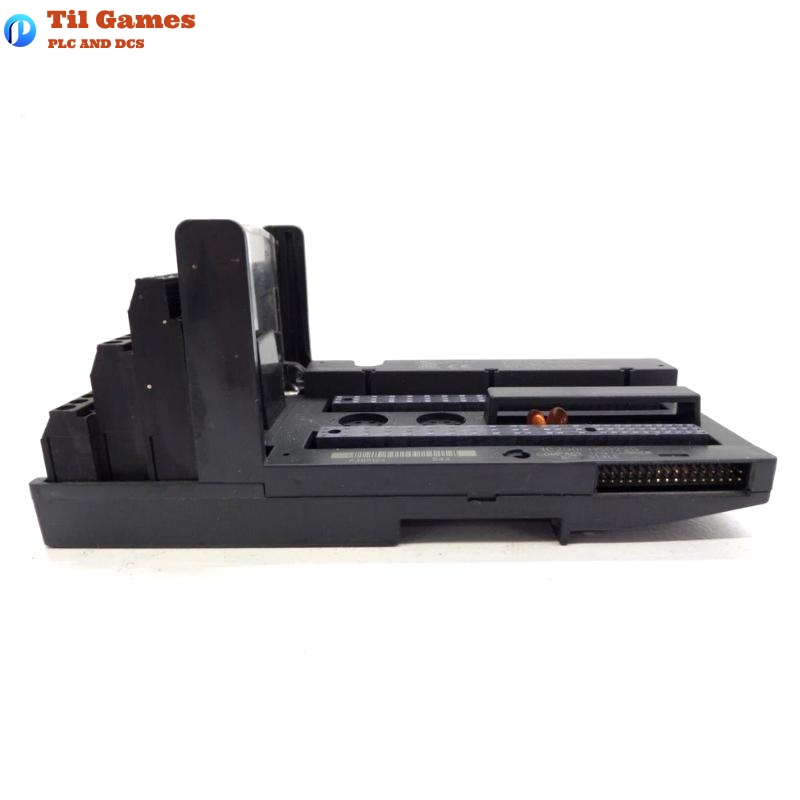

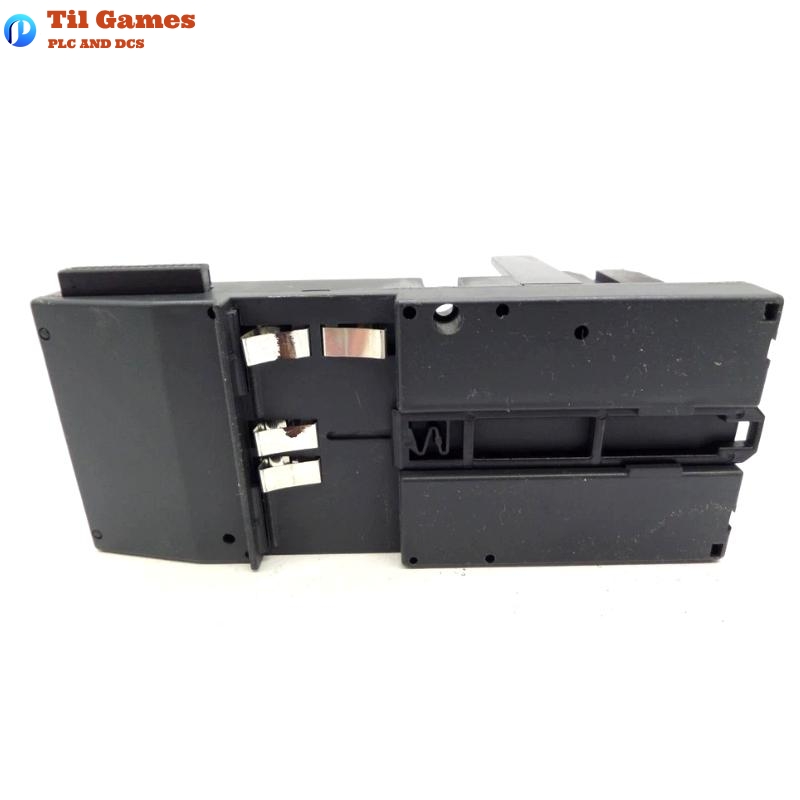

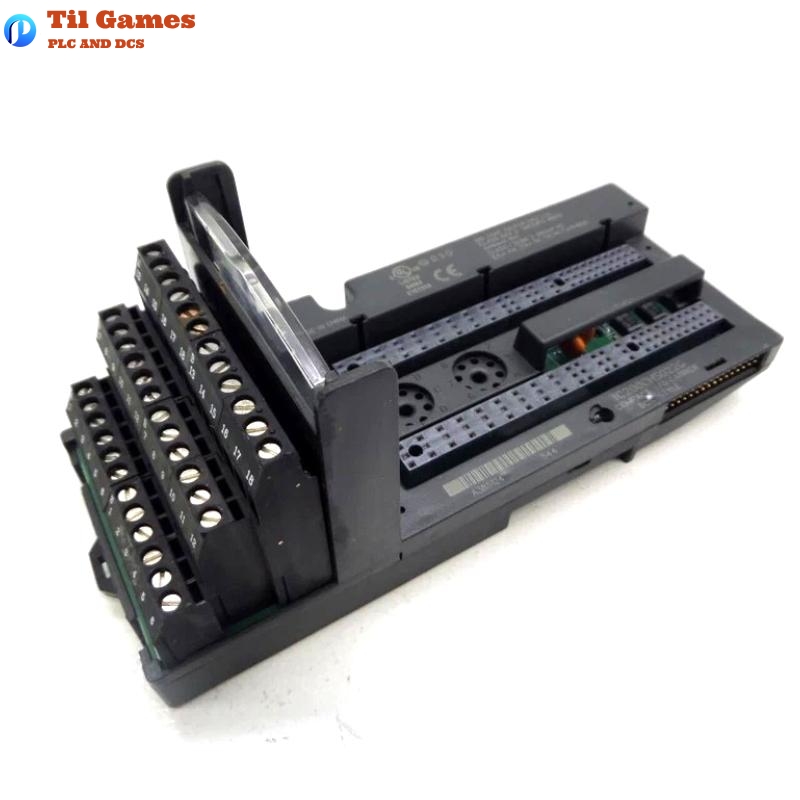

Technical Specifications
| Parameter | Description |
|---|---|
| Model | IC200CHS022G |
| Mounting | DIN rail (7.5mm x 35mm); panel mounting recommended for high vibration |
| Module Orientation | Vertically mounted (perpendicular to DIN rail) |
| Terminal Type | 36 IEC box-style terminals |
| Supported Wiring | Single or stranded wire: AWG #14 (2.1mm²) to AWG #22 (0.36mm²); up to two AWG #18 (0.86mm²) wires |
| Max Current Capacity | 2A per I/O point; 8A per power/ground connection |
| Voltage Rating | Up to 264 VAC; transient withstand up to 300 VAC |
| Wiring Capability | Supports 32 I/O points and 4 common/power connections |
| Backplane Connection | Tool-free carrier-to-carrier connectors |
| Keying | Keying dials to prevent incorrect module installation |
| Card Holder | Built-in card holder for wiring card (provided with I/O module) |
| Dimensions | 66.8 x 163.5 x 70 mm |
| Weight | 0.34 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the primary function of the IC200CHS022G?
A1: It provides mechanical support, backplane communication, field wiring, and power connection for one VersaMax I/O module.
Q2: What type of I/O modules is this carrier compatible with?
A2: It is designed for vertically mounted VersaMax Compact I/O modules.
Q3: How many I/O points does this carrier support?
A3: It supports up to 32 I/O points and 4 common or power connections.
Q4: How is incorrect module installation prevented?
A4: The carrier includes keying dials which must match the keying on the I/O module.
Q5: Are additional cables required for backplane connection?
A5: No, the built-in carrier-to-carrier connectors enable backplane connection without tools or cables.
Q6: What wire sizes are supported?
A6: Supports AWG #14 to AWG #22 single or stranded wires; also allows two AWG #18 wires.
Q7: Is panel mounting necessary?
A7: For environments with significant vibration, panel mounting is recommended in addition to DIN rail.
Q8: Is a wiring card included?
A8: Yes, a wiring card is included with each I/O module and fits in the integrated card holder.
