Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | GE Fanuc (now Emerson Automation Solutions) |

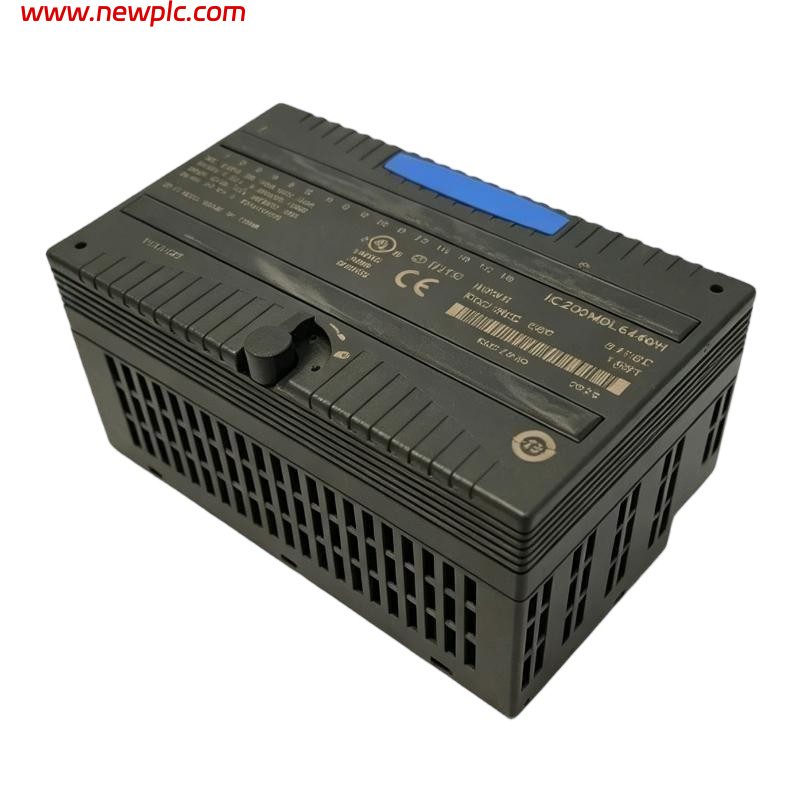

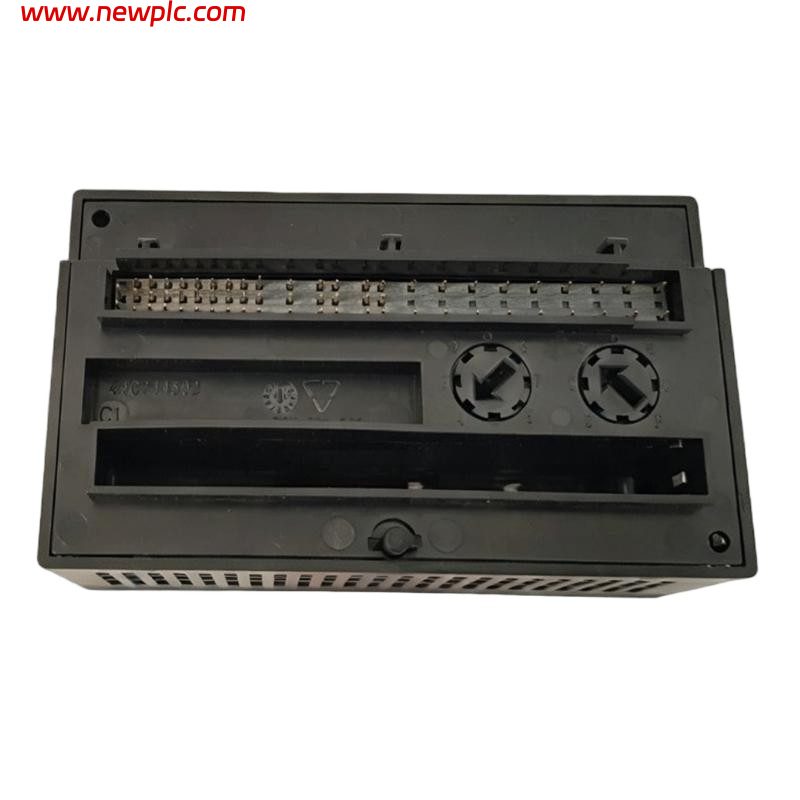

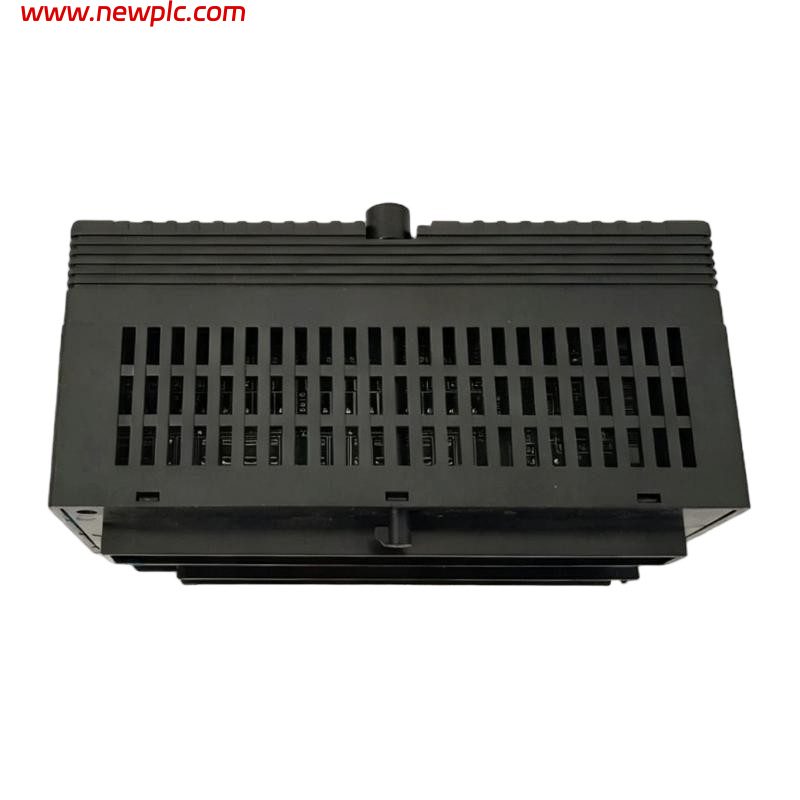

| Product Model | IC200MDL640H |
| Product Type | Discrete Input Module |
| Series | VersaMax I/O |
| Input Type | 24 VDC Positive/Negative Logic Digital Input |
| Number of Input Points | 16 |
| Input Groups | 2 groups of 8 inputs |
| Nominal Input Voltage | 24 VDC |
| Input Voltage Range | 0 to +30 VDC |
| On-State Voltage | +15 to +30 VDC |
| Off-State Voltage | 0 to +5 VDC |
| On-State Current | 2.0 to 5.5 mA |
| Off-State Current | 0 to 0.5 mA |
| Input Impedance | 10 kΩ maximum |
| Logic Type | Positive Logic / Negative Logic |
| Response Time | 0.5 ms maximum |
| Configurable Filter Time | 0 ms, 1.0 ms (default), or 7.0 ms |
| Isolation | Optical isolation between user input and logic; 250 VAC continuous, 1500 VAC for 1 minute |
| Group-to-Group Isolation | 250 VAC continuous, 1500 VAC for 1 minute |
| Point-to-Point Isolation | None |
| Backplane Current Consumption | 25 mA maximum at 5 VDC |
| External Power Supply | Not Required |
| LED Indicators | Individual input status LED for each point and OK status LED |
| Mounting Type | VersaMax Carrier Base Mount |
| Thermal Derating | No derating required |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions (W × H × D) | 50 × 110 × 66.8 mm |
| Weight | 0.45 kg |
| Application | PLC digital signal acquisition, machine control, industrial automation, and process monitoring |
| Condition | New and Original |
| Warranty | 12 months |
FAQ
FAQ
Q1: What is the GE IC200MDL640H used for?
The IC200MDL640H is used in VersaMax PLC systems to collect 24 VDC digital signals from field devices such as pushbuttons, limit switches, proximity sensors, and other industrial control devices.
Q2: How many input channels does the IC200MDL640H provide?
The module provides 16 discrete input points, arranged as two groups of eight inputs for flexible field wiring.
Q3: What input voltage does the IC200MDL640H support?
The module supports 24 VDC nominal input voltage with an operating range of 0 to +30 VDC.
Q4: What are the dimensions and weight of the IC200MDL640H?
The module has approximate dimensions of 50 × 110 × 66.8 mm and weighs approximately 0.45 kg.
Q5: Does the IC200MDL640H support both positive and negative logic inputs?
Yes. The module supports both positive logic and negative logic input configurations, allowing connection to different types of field devices.
Q6: Does the IC200MDL640H require an external power supply?
No. The module receives operating power from the VersaMax backplane and does not require a separate external power supply for module operation.
Q7: What diagnostic features are included?
The IC200MDL640H provides one LED indicator per input point to show individual channel status and an OK LED indicating backplane power and module operation status.
Q8: What are the advantages of the GE IC200MDL640H?
The IC200MDL640H offers compact design, 16-channel digital input capability, flexible positive/negative logic wiring, optical isolation, fast response time, configurable filtering, and reliable performance for industrial PLC applications.
