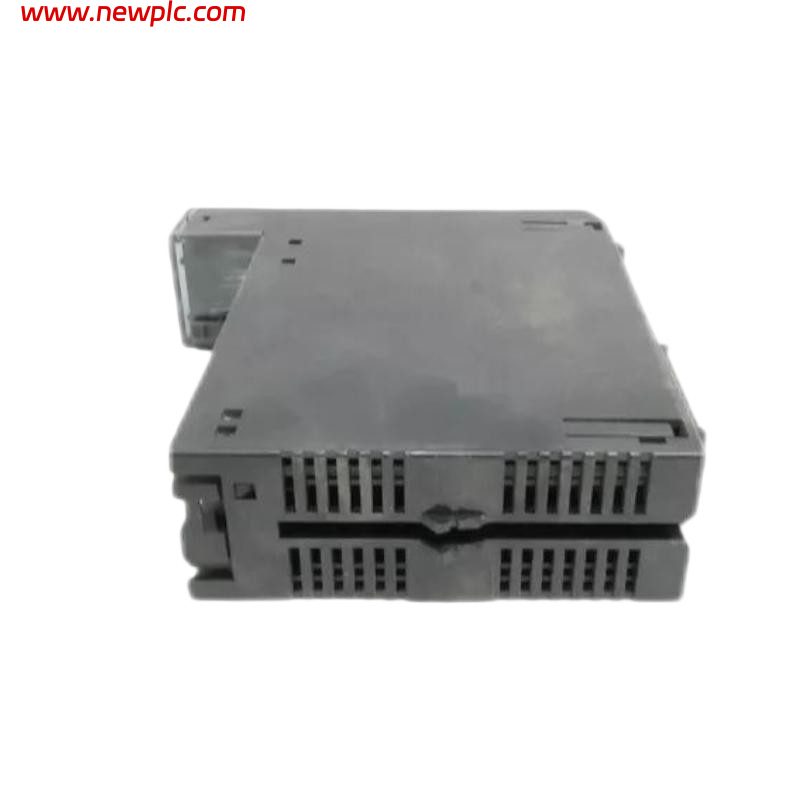

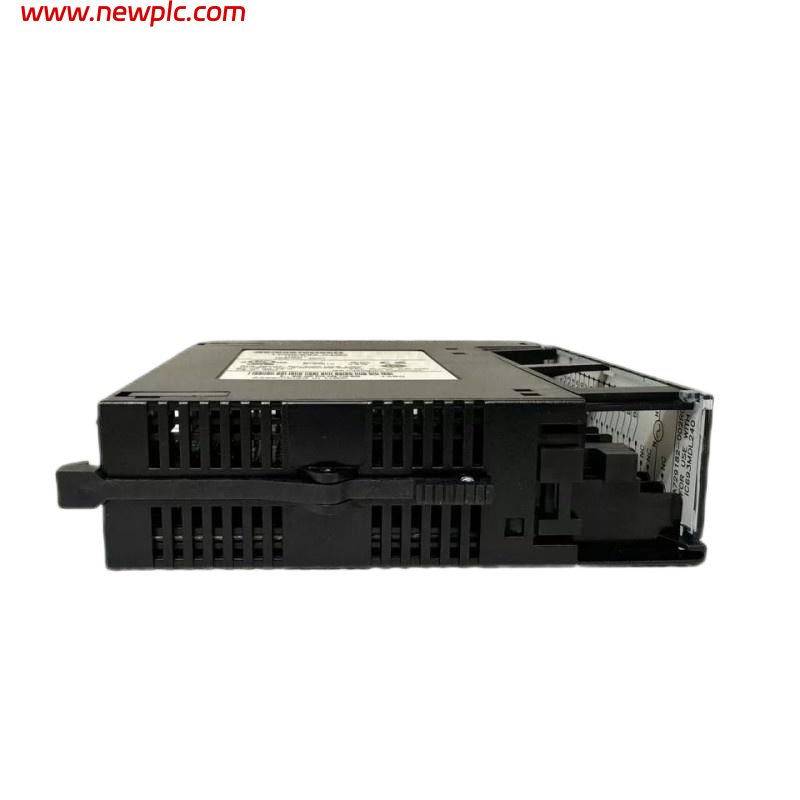

GE IC693MDL240G Discrete Input Module

FAQ

Q1: What is the GE IC693MDL240G used for?
The IC693MDL240G is used in GE Fanuc Series 90-30 PLC systems to collect 120 VAC digital signals from external field devices such as switches, sensors, and control buttons.

Q2: How many input channels does the IC693MDL240G provide?
The module provides 16 AC input points arranged in one group with a common power input terminal.

Q3: What voltage does the IC693MDL240G support?
The module is designed for 120 VAC input signals and operates within an input range of approximately 74–132 VAC.

Q4: What are the dimensions and weight of the IC693MDL240G?
The module has approximate dimensions of 27 × 130 × 125 mm and weighs approximately 0.45 kg.

Q5: What devices can be connected to this input module?
The IC693MDL240G can connect to various AC-powered field devices including pushbuttons, limit switches, proximity switches, and other industrial switching devices.

Q6: Does the IC693MDL240G require an external power supply?
Yes. The connected field devices require an external AC power source because the module itself only provides the input interface for signal detection.

Q7: What diagnostic features are included?

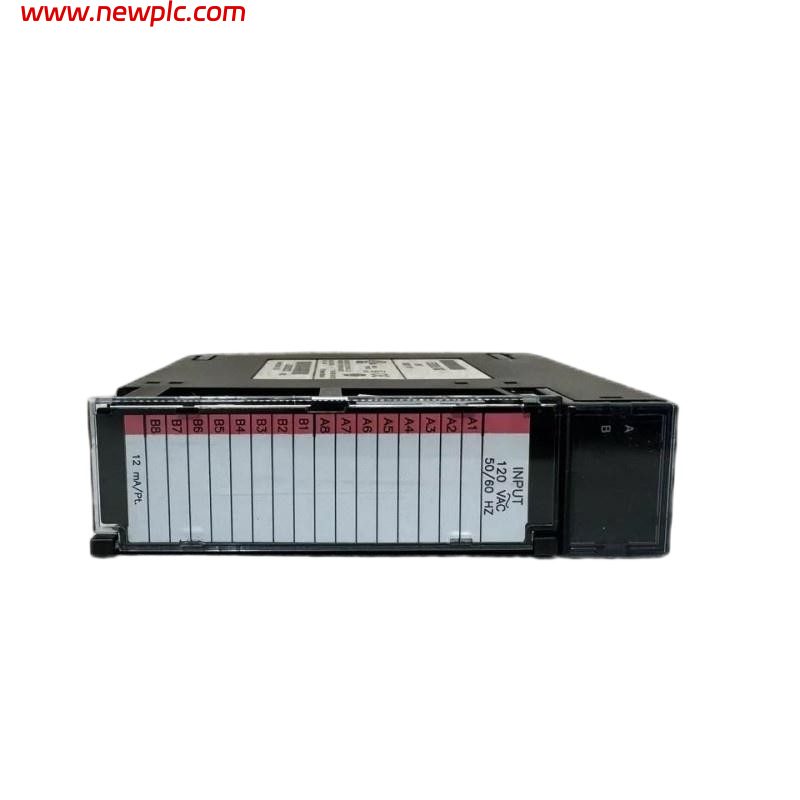

The module provides individual LED indicators for each input point, allowing operators to easily monitor the ON/OFF status of field signals.

Q8: What are the advantages of the GE IC693MDL240G?
The IC693MDL240G offers reliable 120 VAC signal monitoring, 16-channel input capability, optical isolation, clear LED diagnostics, and compatibility with the widely used Series 90-30 PLC platform for industrial automation applications.
