Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE Fanuc (now Emerson Automation) |

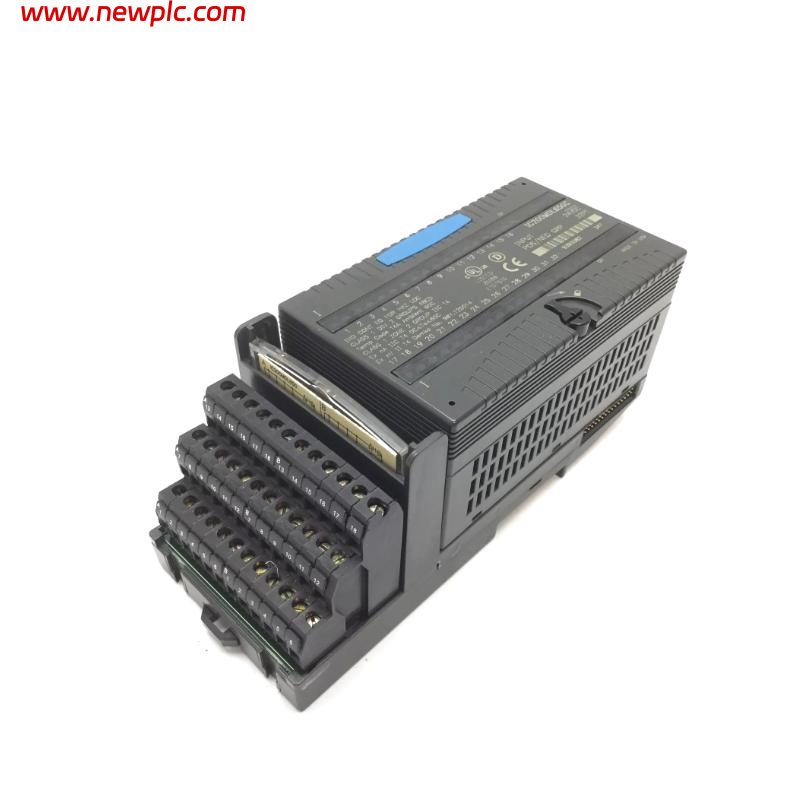

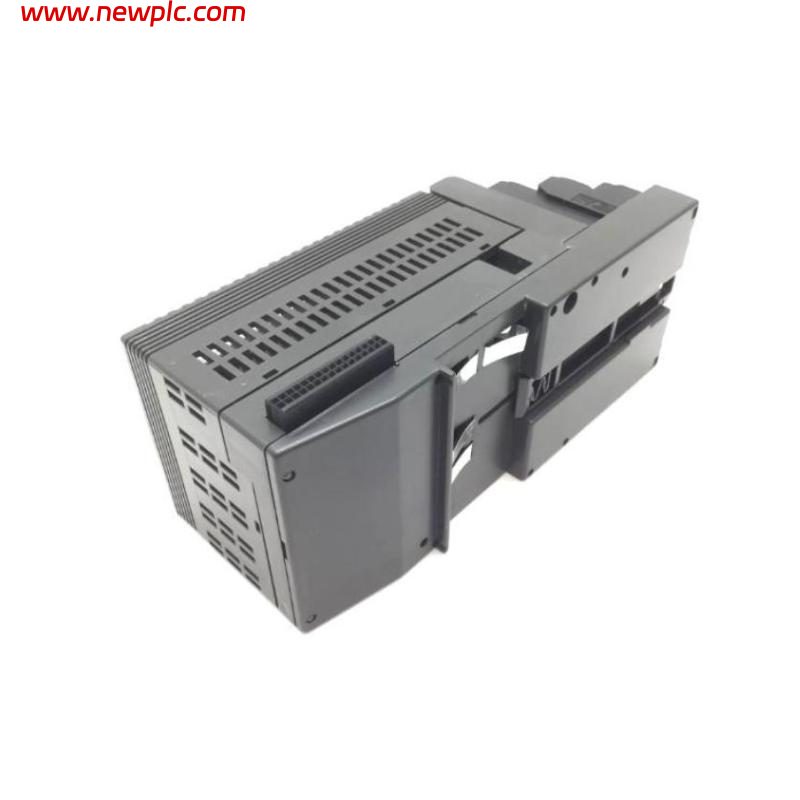

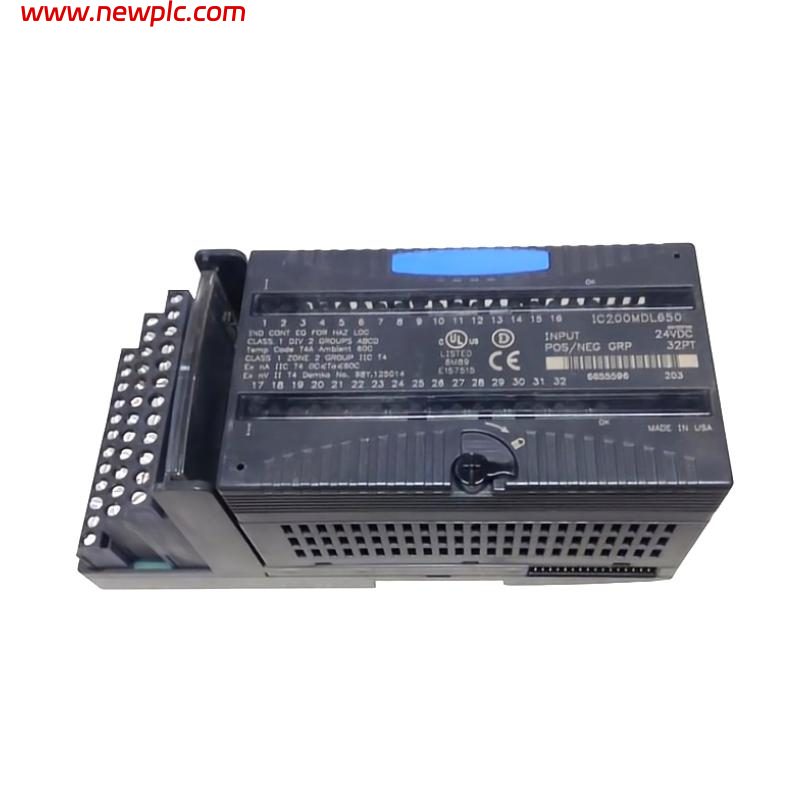

| Product Model | IC200MDL650J |
| Product Type | Discrete DC Input Module |
| Series | VersaMax I/O |
| Function | Receives 24 VDC digital input signals from field devices and transfers status information to the PLC controller |
| Input Type | Positive Logic / Negative Logic DC Input |
| Number of Input Points | 32 points |
| Input Groups | 4 groups of 8 inputs |
| Nominal Input Voltage | 24 VDC |
| Input Voltage Range | 0–30 VDC |
| ON-State Voltage | 15–30 VDC |
| OFF-State Voltage | 0–5 VDC |
| ON-State Current | 2.0–5.5 mA |
| OFF-State Current | 0–0.5 mA |
| Input Impedance | 10 kΩ maximum |
| Input Response Time | 0.5 ms maximum (ON/OFF) |
| Input Filter Time | 0 ms / 1 ms / 7 ms selectable |
| Isolation | 250 VAC continuous; 1500 VAC for 1 minute |
| Point-to-Point Isolation | No |
| Group-to-Group Isolation | Yes |
| External Power Supply | Not required |
| Backplane Current Consumption | 50 mA maximum @ 5 VDC |
| LED Indicators | Individual input status LEDs and OK status LED |
| Module ID | 80088008 |
| Configuration Parameters | Input response time settings |
| Mounting Method | VersaMax carrier base / DIN rail mounting |
| Compatible Systems | GE Fanuc / Emerson VersaMax PLC and Distributed I/O |
| Operating Temperature | 0°C to +60°C (32°F to +140°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Relative Humidity | 5–95% RH (non-condensing) |
| Dimensions (H × W × D) | Approx. 110 × 66.8 × 50 mm (4.33 × 2.63 × 1.97 in.) |
| Weight | Approx. 0.31 kg (0.69 lb) |
| Hardware Revision | J |
| Product Status | Legacy Product |
| Warranty | 12 Months |
FAQ
FAQ
Q1: What is the GE Fanuc IC200MDL650J used for?
The IC200MDL650J is a VersaMax digital input module used to collect ON/OFF signals from external 24 VDC devices and provide the input status to the PLC CPU or network interface unit.
Q2: How many input channels does the IC200MDL650J provide?
The module provides 32 digital input points, arranged into four groups of eight inputs. Each input point has an individual LED indicator for status monitoring.
Q3: What type of input signals does the IC200MDL650J support?
The module supports 24 VDC positive logic and negative logic input devices, allowing flexible connection of different types of industrial switches and sensors.
Q4: Does the IC200MDL650J require an external power supply?
No. The module receives operating power from the VersaMax backplane and does not require a separate external power supply for module operation.
Q5: What voltage range can the IC200MDL650J accept?
The input voltage range is 0–30 VDC, with a nominal operating voltage of 24 VDC. The ON-state input voltage is typically 15–30 VDC.
Q6: What isolation protection does the IC200MDL650J provide?
The module provides optical isolation between user inputs, logic circuits, and frame ground. The isolation rating is 250 VAC continuous and 1500 VAC for one minute.
Q7: What does the “J” revision indicate?
The “J” suffix identifies the hardware revision level of the IC200MDL650 module. Different revision levels represent manufacturing improvements while maintaining compatibility with VersaMax systems.
Q8: What should be checked before replacing an IC200MDL650J module?
Before replacement, verify the VersaMax carrier compatibility, input voltage level, field wiring configuration, positive/negative logic settings, PLC hardware configuration, and input filter parameters to ensure correct operation after installation.
