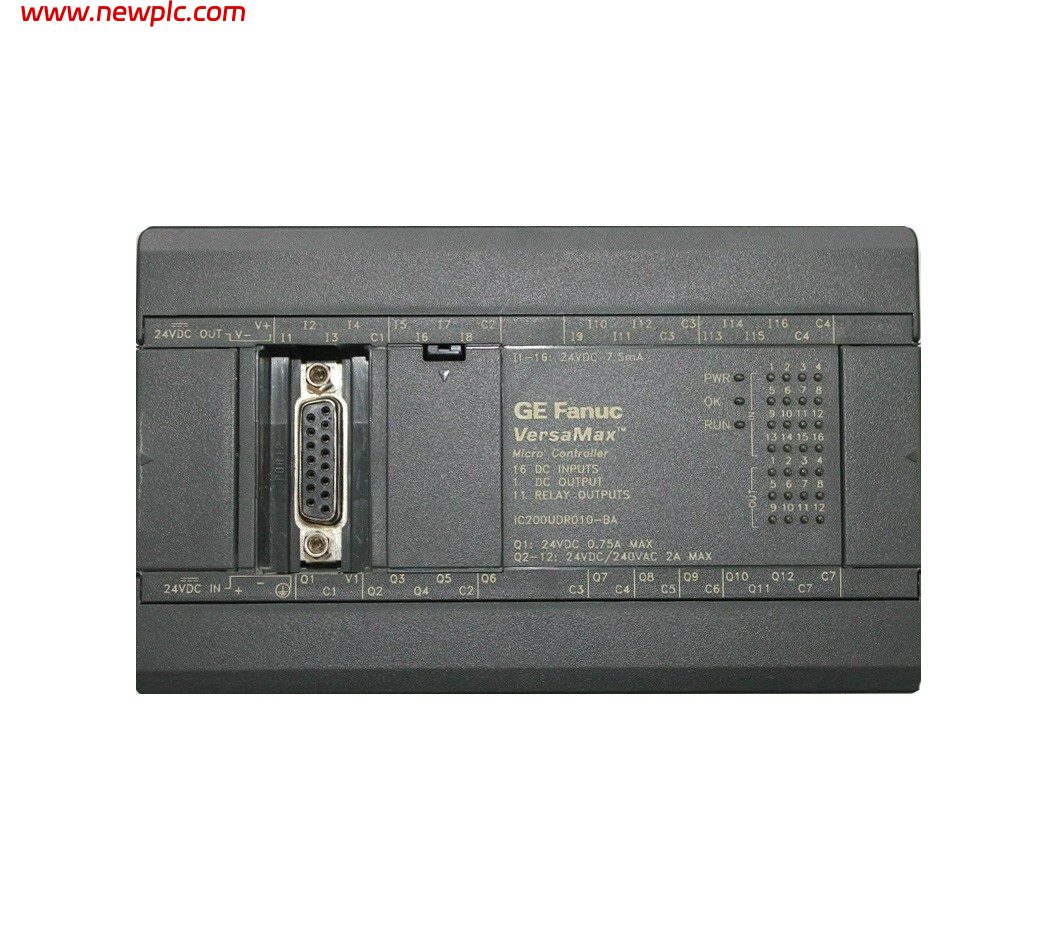

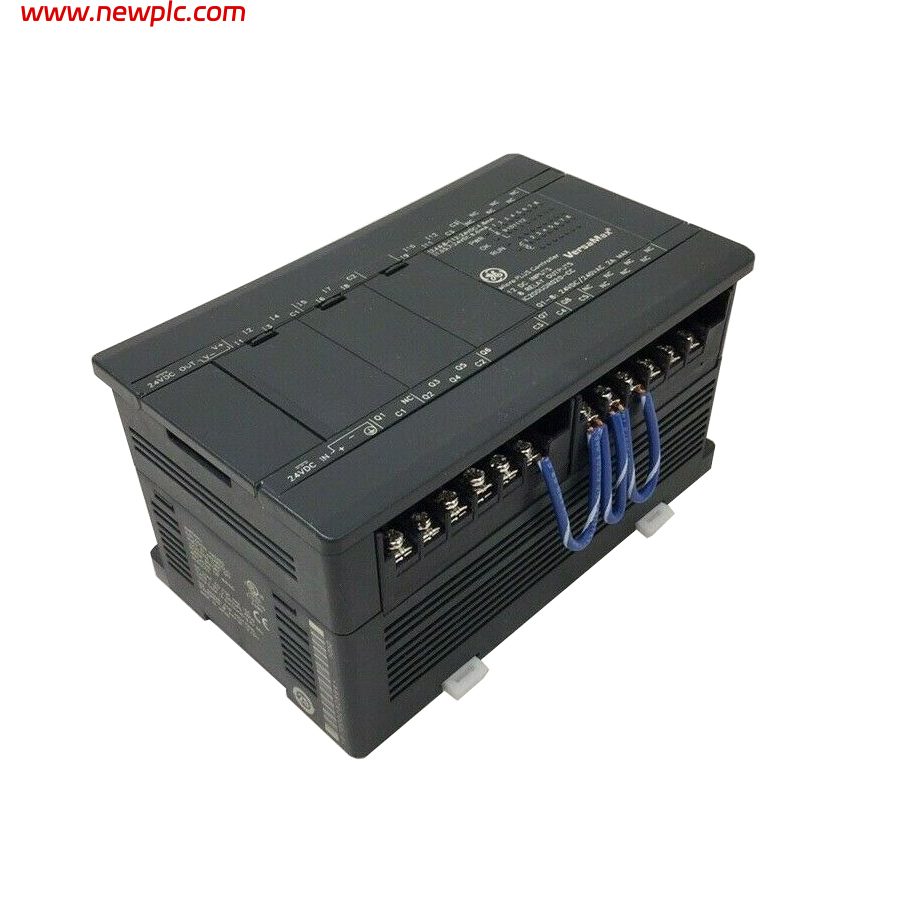

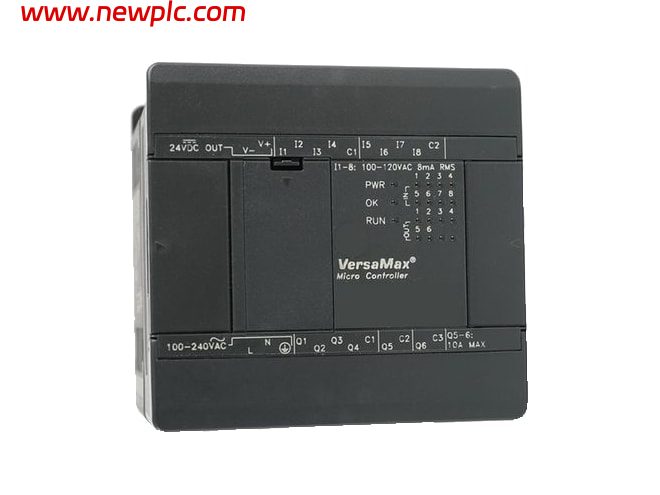

GE IC200UDR064 VersaMax Micro PLC Controller

FAQ

Q1: What is the GE Fanuc IC200UDR064 used for?
The IC200UDR064 is a compact VersaMax Micro PLC used for machine control, packaging systems, material handling equipment, and other industrial automation applications requiring integrated CPU and I/O functions.

Q2: How many I/O points does the IC200UDR064 provide?
The PLC provides 64 total I/O points, including 40 DC digital inputs and 24 relay outputs.

Q3: What type of outputs are available on the IC200UDR064?
The module provides 24 normally open relay outputs that can switch both AC and DC loads. Each relay output supports up to 2 A at 24 VDC or 240 VAC for resistive loads.

Q4: What input signals can be connected to the IC200UDR064?
The controller accepts 24 VDC positive or negative logic input signals, allowing connection with switches, sensors, proximity detectors, and other digital field devices.

Q5: Does the IC200UDR064 require an external power supply?
Yes. The controller requires a 24 VDC power supply with an operating range of 19.2–30 VDC. The internal electronics and I/O circuits are powered from this supply.

Q6: Can the IC200UDR064 handle high-speed counting applications?
Yes. The VersaMax Micro controller supports high-speed counter functions, allowing applications such as position monitoring, speed measurement, and pulse counting.

Q7: What programming software is used with the IC200UDR064?
The IC200UDR064 can be programmed using Proficy Machine Edition, which supports ladder logic programming, configuration, monitoring, and troubleshooting for VersaMax Micro PLC systems.

Q8: What should be checked before replacing an IC200UDR064 module?
Before replacement, verify the 24 VDC power supply, input and output wiring, relay load ratings, PLC program backup, communication settings, and expansion module compatibility to ensure proper system operation after installation.
