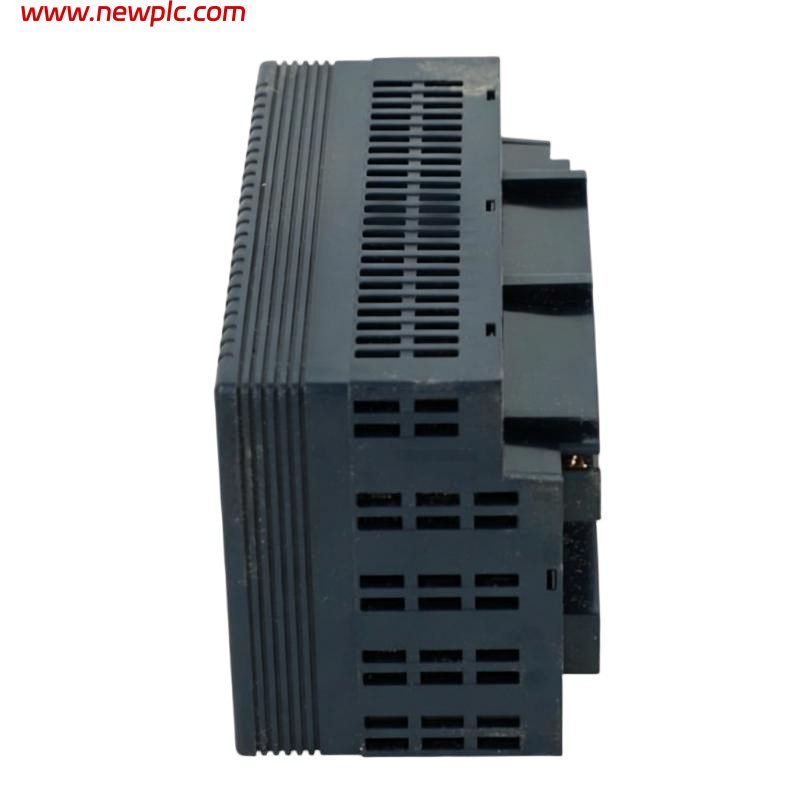

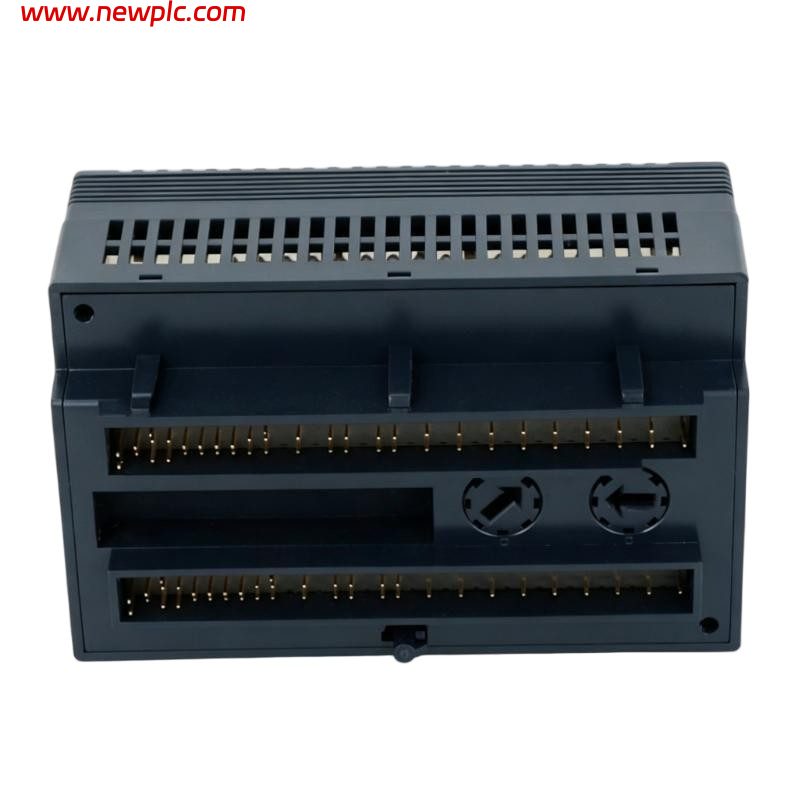

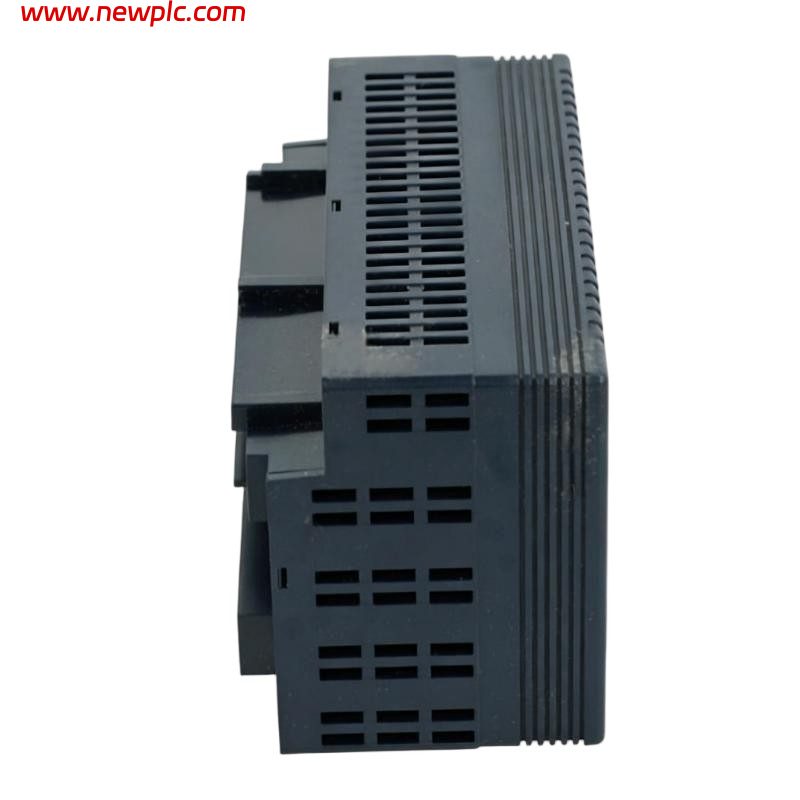

Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | GE Fanuc (now Emerson Automation Solutions) |
| Product Model | IC200MDL940B |
| Product Type | Relay Output Module |
| Series | VersaMax I/O |
| Output Type | Isolated Form A Relay Output |
| Number of Output Points | 16 |
| Output Contact Type | Normally Open (N.O.) / Form A |
| Output Voltage Range | 0–125 VDC; 0–265 VAC (47–63 Hz) |
| Nominal Output Voltage | 5/24/125 VDC; 120/240 VAC |
| Contact Current Rating | 2.0 A maximum (resistive load) |
| DC Load Rating | 2.0 A at 5–30 VDC; 0.2 A at 31–125 VDC |
| Minimum Load Current | 10 mA per point |
| Output Isolation | Individually isolated points |
| Response Time (ON/OFF) | 10 ms maximum |
| Switching Frequency | 20 cycles/minute (inductive load) |
| Contact Material | Silver alloy |
| Output Voltage Drop | 0.3 V maximum |
| Relay Type | Fixed coil, moving armature |
| Backplane Current Consumption | 490 mA maximum at 5 VDC |
| LED Indicators | Individual output status LEDs, OK status LED |
| External Power Supply | Required for field loads |
| Protection | No internal fuses or snubbers |
| Mounting Type | VersaMax carrier base mounting |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions (W × H × D) | 110 × 66.8 × 50 mm |
| Weight | 0.51 kg |
| Application | PLC relay switching, motor starters, solenoid valves, lamps, contactors, and industrial automation control systems |
| Condition | New and Original |
| Warranty | 12 months |
FAQ
FAQ
Q1: What is the GE IC200MDL940B used for?
The IC200MDL940B is used in VersaMax PLC systems to control external devices such as contactors, solenoid valves, indicator lamps, motor starters, and other industrial loads through relay outputs.
Q2: How many output channels does the IC200MDL940B provide?
The module provides 16 individually isolated relay output channels, each with a Form A normally open contact.
Q3: What voltage and current ratings are supported?
The module supports 0–125 VDC and 0–265 VAC (47–63 Hz) output ranges. Each relay contact can handle up to 2.0 A for suitable resistive loads.
Q4: What are the dimensions and weight of the IC200MDL940B?
The module has approximate dimensions of 110 × 66.8 × 50 mm and weighs approximately 0.51 kg.
Q5: Are the relay outputs isolated from each other?
Yes. The IC200MDL940B features individually isolated Form A relay outputs, allowing separate field devices and voltage sources to be connected safely.
Q6: Does the module require an external power supply?
Yes. The module receives operating power from the VersaMax backplane, while the connected field loads require an external power supply.
Q7: What diagnostic features are available?
The module provides individual LED indicators for each output point and an OK LED to indicate module operating status and backplane power availability.
Q8: What are the advantages of the GE IC200MDL940B?
The IC200MDL940B offers reliable relay switching, individual channel isolation, compatibility with AC/DC loads, compact VersaMax design, clear LED diagnostics, and suitability for various industrial automation applications.
