Technical Specifications
| Parameter | Value |
|---|---|
| Model Number | IC200PNS001-AC |

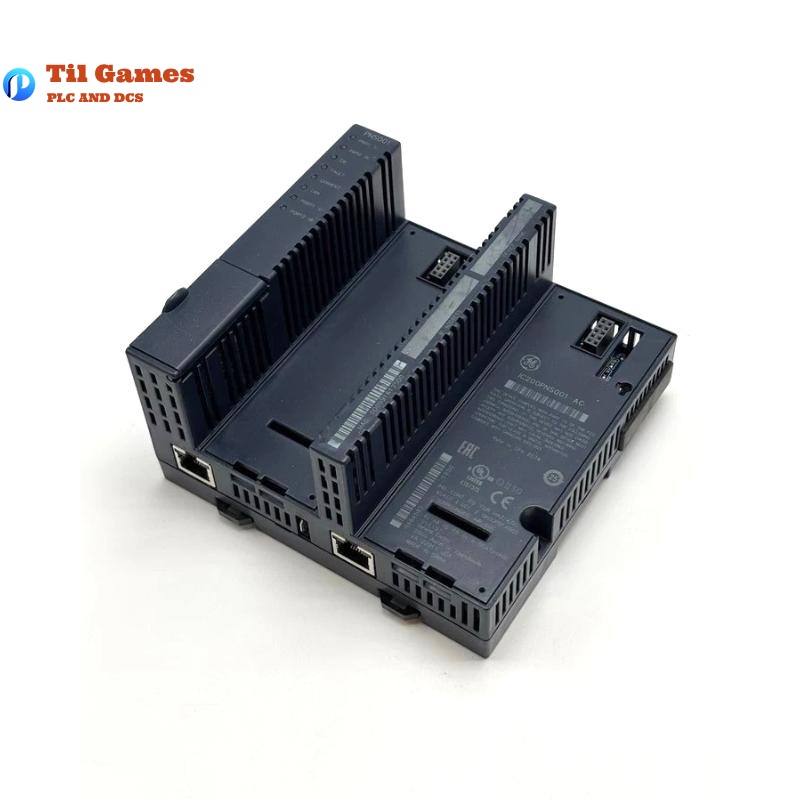

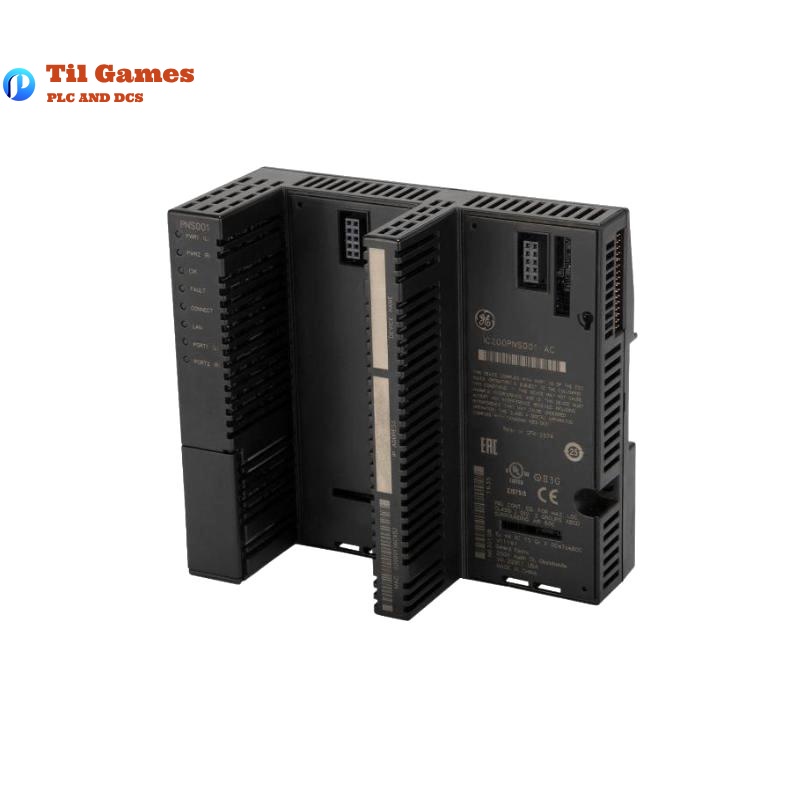

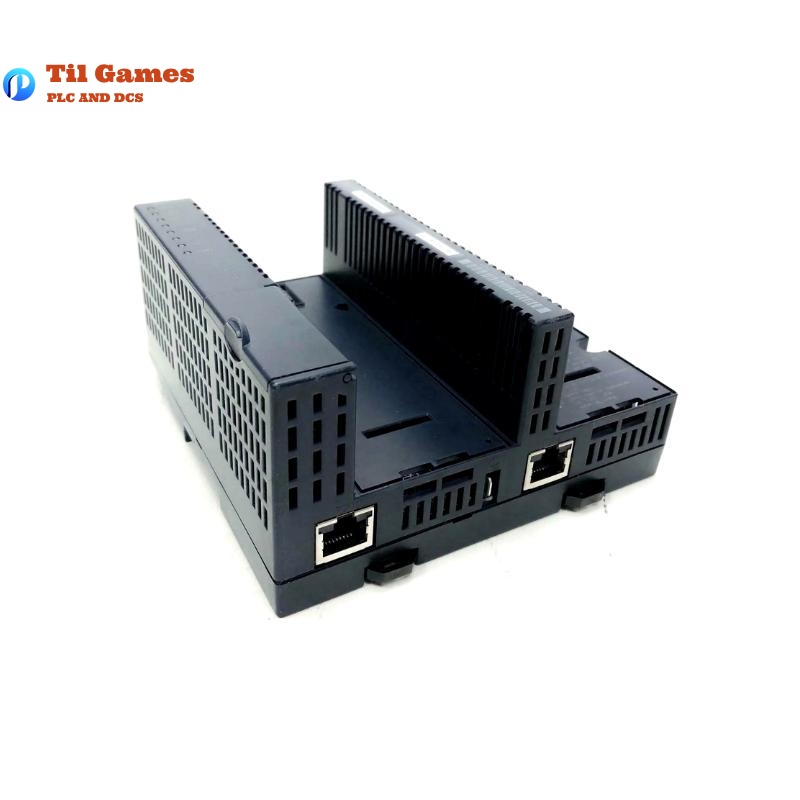

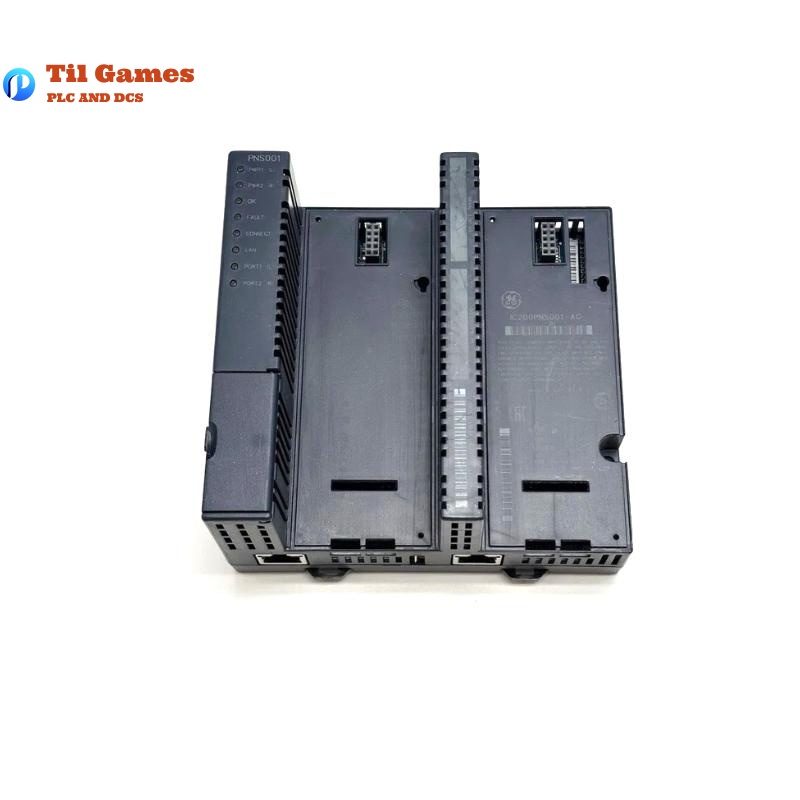

| Product Name | VersaMax Remote I/O PROFINET Network Interface Unit |
| Supported Protocol | PROFINET IO-Device, Version 2.2 Class A |
| Maximum Communication Distance | 100 meters (10/100 Mbps) |
| Interface Type | (2) RJ-45 ports with built-in switch |
| Network Topology | Daisy-chain, star, or ring (redundant media topology) |
| I/O Data Update Rate | Configurable: 1ms, 2ms, 4ms, 8ms, 16ms, 32ms, 64ms, 128ms, 256ms, 512ms |
| Max Supported Modules | 8 modules per NIU/station, non-expandable |
| I/O Data Capacity | 2880 bytes total (1440 bytes input + 1440 bytes output) |
| User Diagnostic Data | 32 input status bits + 32 output control bits |
| Power Consumption (5V) | 3 Watts |
| Dimensions (W × H × D) | 134 × 132 × 66.8 mm |
| Weight | 0.4 kg |
| Redundancy Support | Not supported |
| Mounting Method | DIN rail mounting |
FAQ
Frequently Asked Questions (FAQ)
Q1: What network topologies are supported by IC200PNS001-AC?
A1: It supports daisy-chain, star, and ring topologies with redundant media.
Q2: How many I/O modules can be connected to this unit?
A2: It supports up to 8 modules per NIU/station, with no expansion capability.
Q3: What is the supported network transmission speed?
A3: It supports Ethernet transmission speeds of 10/100 Mbps.
Q4: Does this unit support redundancy?
A4: No, redundancy is not supported.
Q5: What is the maximum I/O data capacity?
A5: The unit supports up to 2880 bytes of data, with 1440 bytes each for input and output.
Q6: What is the power consumption of the module?
A6: The module consumes 3 Watts of 5V backplane current.
Q7: What I/O update rates can be configured?
A7: Update rates can be set from 1ms up to 512ms across ten configurable steps.
Q8: What are the physical dimensions and weight of the unit?
A8: The dimensions are 134 × 132 × 66.8 mm and the weight is 0.4 kg.
