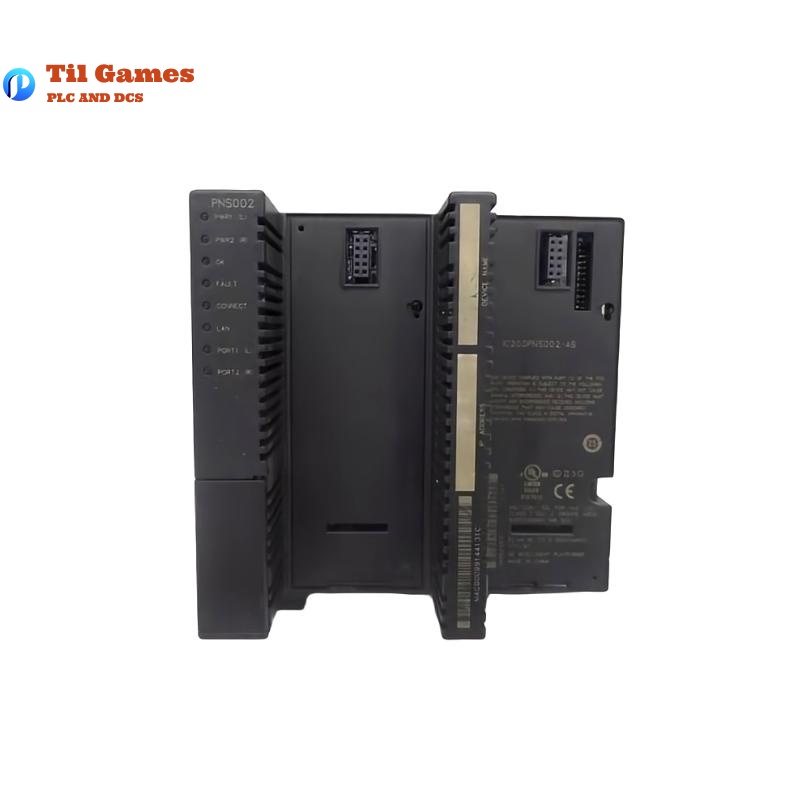

GE IC200PNS002-AA VersaMax PROFINET Scanner Technical Specifications
| Item | Specification |
|---|---|
| Model Number | IC200PNS002-AA |
| Supported Protocol | PROFINET Version 2.2 Class A IO-Device |
| Power Consumption | 1.10A @ 5VDC |
| Interface Type | Two 100 Mbps Multi-mode fiber ports (SC-Duplex) |
| USB Port | One Micro-B (for firmware upgrade only) |
| Firmware Upgrade | Supported via USB |
| Max I/O Modules per Node | 8 |
| I/O Data Size | Total 2880 bytes (1440 bytes input, 1440 bytes output) |
| Network Topologies | Line, star, ring; supports MRP client mode |
| Number of IP Addresses | 1, supports CIDR subnetting |
| Number of MAC Addresses | 3 (2 external, 1 internal) |
| Status/Control Bits | 32 input status bits, 32 output control bits |
| I/O Data Update Rate | Configurable: 1ms to 512ms |
| Operating Temperature | 0 to 60°C (ambient, no fan required) |
| Mounting Method | DIN rail or panel-mounted |
| Dimensions | 132 × 134 × 66.8 mm |
| Weight | 0.35 kg |
| RoHS Compliance | Yes |
| Configuration Support | With Proficy Machine Edition and RX3i PROFINET Controller |
| Certification | UL/ATEX for hazardous locations |
FAQ
GE IC200PNS002-AA VersaMax PROFINET Scanner FAQ
Q1: What is the difference between IC200PNS002-AA and IC200PNS001-AA?
A1: IC200PNS002-AA uses SC-Duplex fiber optic ports, while IC200PNS001-AA uses RJ45 copper ports.
Q2: How many I/O modules are supported per PNS node?
A2: A maximum of 8 I/O modules are supported.
Q3: Is an external carrier required for installation?
A3: No, the carrier is integrated into the module.
Q4: What network topologies are supported?
A4: The module supports line, star, and ring topologies, and acts as an MRP client.
Q5: How is power redundancy implemented?
A5: Redundant power supply is supported and can be hot-swapped during operation.
Q6: Are I/O modules hot-swappable?
A6: Power modules are hot-swappable, but I/O modules using IC200CHS006 carrier are not.
Q7: Can the USB port be used for communication?
A7: No, the USB port is only for firmware upgrades.
Q8: Is the module suitable for hazardous area installations?
A8: Yes, it is rated for Class I, Division 2 and ATEX II 3 G zones.
