Technical Specifications
| Parameter | Specification |
|---|---|

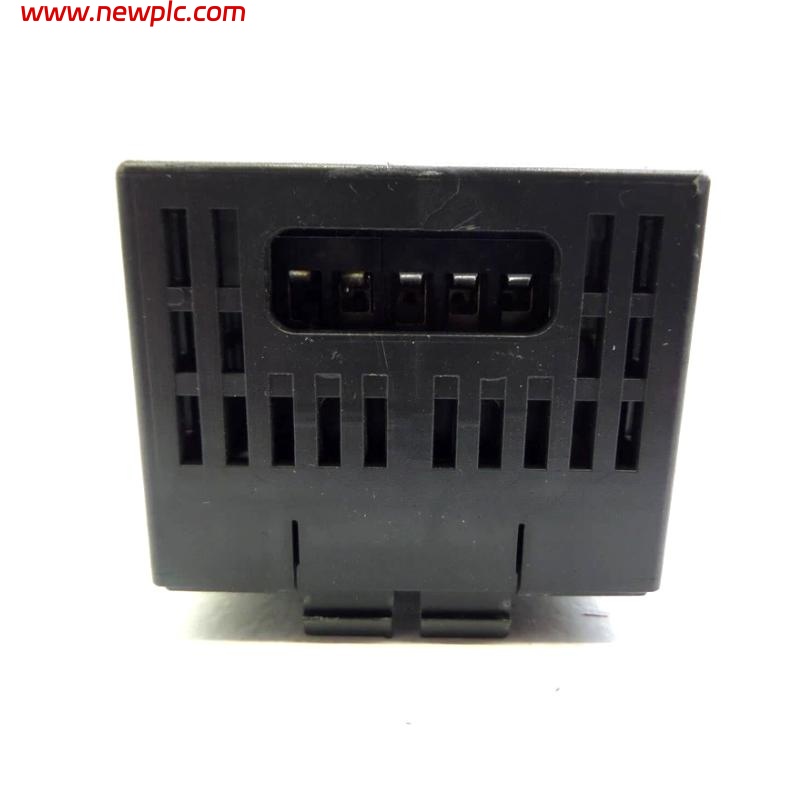

| Model | IC200PWR101 |
| Product Type | DC Power Supply Module for GE VersaMax PLC |
| Function | Provides 24 V DC power to VersaMax I/O stations |
| Input Voltage | 24 V DC nominal |
| Input Voltage Range | 18–30 V DC |
| Output Voltage | 5 V DC (internal logic supply) |
| Output Current | Up to 1.5 A (backplane supply) |
| Protection | Reverse polarity, overcurrent, and short-circuit protection |
| Isolation | Input-to-backplane isolation |
| Mounting | DIN rail mounting (VersaMax I/O base) |
| Operating Temperature | 0 °C to +60 °C |
| Status Indicators | Power and fault LEDs |
| Dimensions | Approx. 4.0 cm × 9.5 cm × 7.5 cm |
| Weight | Approx. 0.30 kg |
FAQ
FAQ
Q1: What is the IC200PWR101 used for?
It is a 24 V DC input power supply module designed to power VersaMax I/O stations.
Q2: What input voltage does it require?
It requires 24 V DC with an operating range of 18–30 V DC.
Q3: What does the module supply internally?
It converts the input to 5 V DC to power the internal backplane and logic circuits.
Q4: What is the maximum output capacity?
It can provide up to 1.5 A to the VersaMax backplane.
Q5: Does it include protection features?
Yes, it includes reverse polarity, overcurrent, and short-circuit protection.
Q6: Is electrical isolation provided?
Yes, it provides isolation between the input and the backplane.
Q7: What are the physical dimensions and weight?
The module measures approximately 4.0 cm × 9.5 cm × 7.5 cm and weighs about 0.30 kg.
Q8: Are status indicators available?
Yes, LEDs indicate power status and fault conditions.
