Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE Fanuc (now Emerson Automation) |
| Product Model | IC200UAA007 |
| Product Type | Micro PLC (Programmable Logic Controller) |
| Series | VersaMax Micro |
| Function | Compact PLC with integrated AC digital inputs and AC triac outputs |
| Built-in I/O Points | 28 points |
| Digital Inputs | 16 × 120 VAC inputs |
| Digital Outputs | 12 × 120/240 VAC triac outputs |
| Power Supply | 100–240 VAC nominal |
| Input Voltage Range | 100 VAC (-15%) to 240 VAC (+10%) |
| Input Frequency | 50/60 Hz |
| Input Power Rating | 16 VA |
| Input Type | AC reactive (resistor/capacitor) inputs |
| Input Response Time | OFF to ON: 25 ms max; ON to OFF: 30 ms max |
| Output Type | Triac AC outputs |
| Output Voltage | 100–240 VAC |
| Maximum Output Current | 0.5 A per output point |
| Maximum Inrush Current | 5 A per point (1 cycle), 10 A per common (1 cycle) |
| Output Groups | 4 isolated output groups |
| Output Protection | Replaceable 3.15 A fuse per common and RC snubber protection |
| High-Speed Counter | Not supported |
| PWM/Pulse Train Output | Not supported |
| Communication Ports | RS-232 (Port 1) and RS-485 (Port 2) |
| Expansion Capacity | Up to 4 expansion units |
| Programming Software | Proficy Machine Edition / VersaPro |
| Isolation | 1500 VAC field-to-logic; 500 VAC between groups |

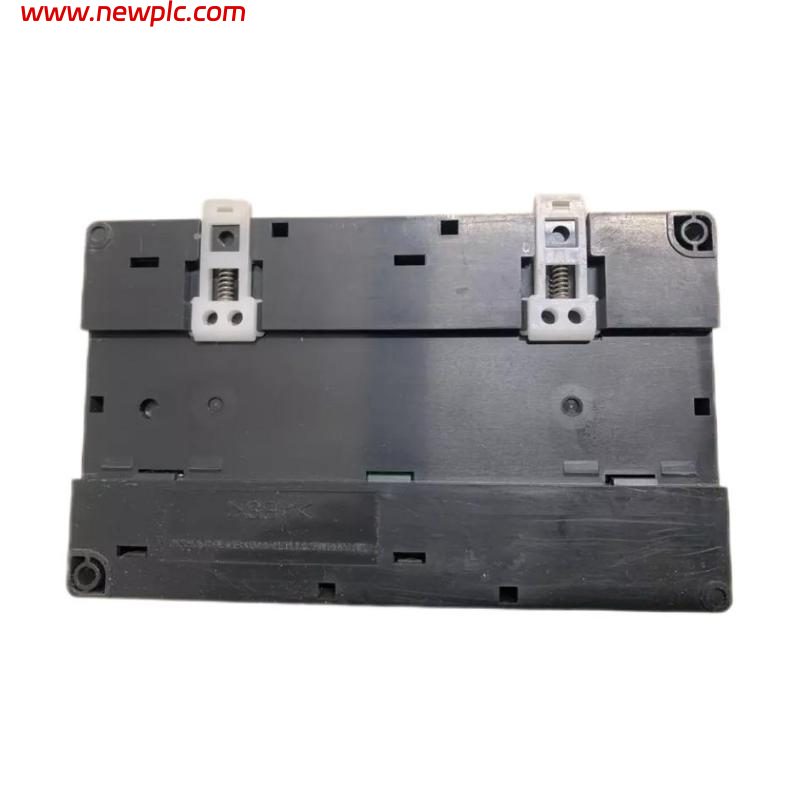

| Mounting Method | DIN rail or panel mounting |
| Operating Temperature | 0°C to +55°C (32°F to +131°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Relative Humidity | 5–95% RH (non-condensing) |
| Dimensions (H × W × D) | Approx. 90 × 140 × 70 mm (3.54 × 5.51 × 2.76 in.) |
| Weight | Approx. 0.60 kg (1.32 lb) |
| Product Status | Legacy Product |
| Warranty | 12 Months |
FAQ
FAQ
Q1: What is the IC200UAA007 used for?
The IC200UAA007 is a compact PLC designed for industrial automation applications that require integrated 120 VAC inputs and triac outputs, such as conveyors, packaging machines, HVAC equipment, and process control systems.
Q2: How many built-in I/O points does the IC200UAA007 provide?
It provides 28 built-in I/O points, consisting of 16 AC digital inputs and 12 AC triac outputs.
Q3: What input power does the IC200UAA007 require?
The controller operates from a 100–240 VAC nominal power source with an operating range of 100 VAC (-15%) to 240 VAC (+10%) at 50/60 Hz.
Q4: What type of outputs are provided?
The IC200UAA007 includes 12 triac outputs rated for 100–240 VAC with a maximum continuous load of 0.5 A per output. The outputs are arranged in four isolated groups, each protected by a replaceable fuse.
Q5: Does the IC200UAA007 support high-speed counters or motion control?
No. This model does not support high-speed counters, PWM outputs, or pulse-train outputs, making it suitable for standard discrete control rather than motion applications.
Q6: Can the IC200UAA007 be expanded?
Yes. The controller supports up to four VersaMax Micro expansion modules, allowing additional digital or analog I/O to be added as system requirements increase.
Q7: What communication interfaces are available?
The IC200UAA007 provides two built-in serial communication ports: an RS-232 port supporting SNP/SNPX slave communication and an RS-485 port supporting SNP/SNPX master/slave, Modbus RTU master/slave, and Serial I/O.
Q8: What should be checked before replacing an IC200UAA007?
Before replacement, verify the AC supply voltage, field wiring, input/output load ratings, communication settings, PLC program compatibility, expansion module configuration, and terminal connections to ensure reliable system operation after installation.
