Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE Fanuc (now Emerson Automation) |
| Product Model | IC200UER016 |

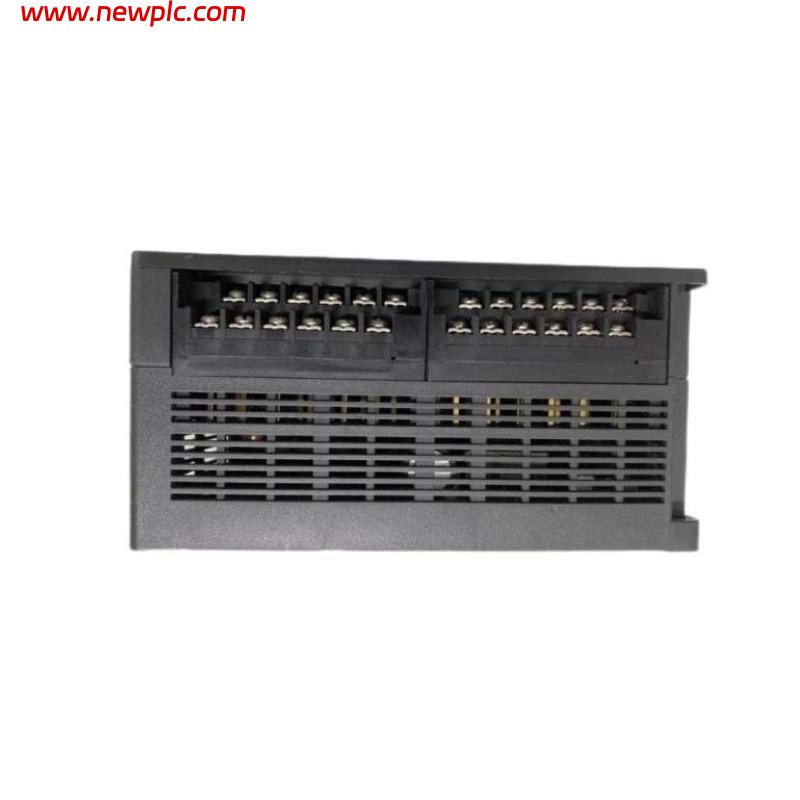

| Product Type | Digital Relay Output Expansion Module |
| Series | VersaMax Micro |
| Function | Expands VersaMax Micro PLCs with additional relay output channels |
| Number of Outputs | 16 relay outputs |
| Output Type | Form A (SPST-NO) Normally Open Relay |
| Input Points | None |
| Power Supply | 24 VDC nominal |
| Input Voltage Range | 19.2–30 VDC (24 VDC -20% / +25%) |
| Input Current | 0.16 A typical @ 24 VDC |
| Power Consumption | 4 W |
| Output Voltage Range | 5–30 VDC or 5–250 VAC |
| Maximum Load Current | 2 A per output point |
| Maximum Current per Common | 5 A |
| Maximum Resistive Load | 2 A @ 24 VDC or 240 VAC |
| Relay Contact Type | Normally Open (SPST Form A) |
| Leakage Current | 15 mA maximum |
| Response Time | 15 ms maximum (ON to OFF or OFF to ON) |
| Contact Life (Mechanical) | 20 million operations |
| Contact Life (Electrical) | 200,000 operations (typical at rated load) |
| Isolation | 1500 V RMS (field to logic); 500 V RMS (between output groups) |
| User Power for Sensors | 24 VDC, 200 mA |
| Expansion Compatibility | VersaMax Micro PLCs |
| Maximum Expansion Modules | Up to 4 expansion modules per compatible VersaMax Micro PLC |
| Connection Cable | IC200CBL501 included |
| LED Indicators | Output status LEDs and power indication |
| Mounting Method | DIN rail or panel mounting |
| Operating Temperature | 0°C to +55°C (32°F to +131°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Relative Humidity | 5–95% RH (non-condensing) |
| Dimensions (W × H × D) | 95 × 90 × 76 mm (3.74 × 3.54 × 2.99 in.) |
| Weight | Approx. 0.35 kg (0.77 lb) |
| Product Status | Legacy Product |
| Warranty | 12 Months |
FAQ
FAQ
Q1: What is the IC200UER016 used for?
The IC200UER016 is used to expand the relay output capacity of a VersaMax Micro PLC, enabling control of additional field devices in industrial automation applications.
Q2: How many outputs does the IC200UER016 provide?
The module provides 16 normally open relay outputs, with no digital input channels.
Q3: What types of loads can the IC200UER016 switch?
It can switch 5–30 VDC or 5–250 VAC loads, making it suitable for relays, contactors, solenoid valves, motor starters, and indicator lamps.
Q4: What is the maximum output current per relay?
Each relay output is rated for 2 A, while each common terminal supports a maximum of 5 A.
Q5: Does the IC200UER016 require an external power supply?
Yes. The module requires a 24 VDC nominal power supply for operation, and the controlled field devices require their own appropriate AC or DC power source.
Q6: Which PLCs are compatible with the IC200UER016?
The IC200UER016 is designed for GE Fanuc VersaMax Micro PLCs and can be used with compatible controllers that support expansion modules.
Q7: How many expansion modules can a VersaMax Micro PLC support?
Compatible VersaMax Micro controllers can support up to four expansion modules, allowing flexible system expansion.
Q8: What should be checked before replacing an IC200UER016 module?
Before replacement, verify the 24 VDC power supply, expansion cable (IC200CBL501) connections, PLC compatibility, output wiring, relay load ratings, and controller configuration to ensure proper operation after installation.
