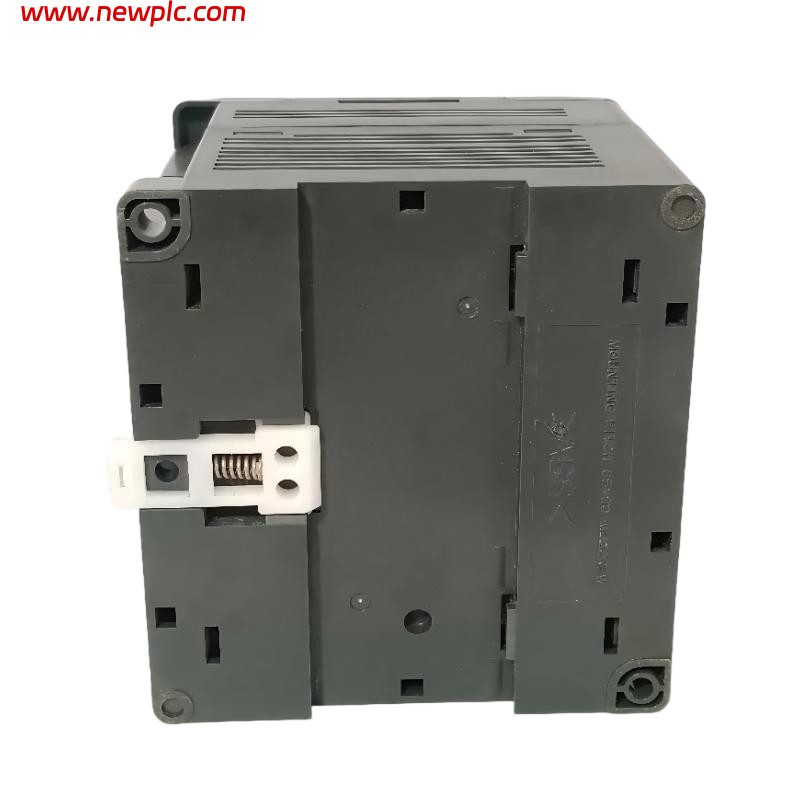

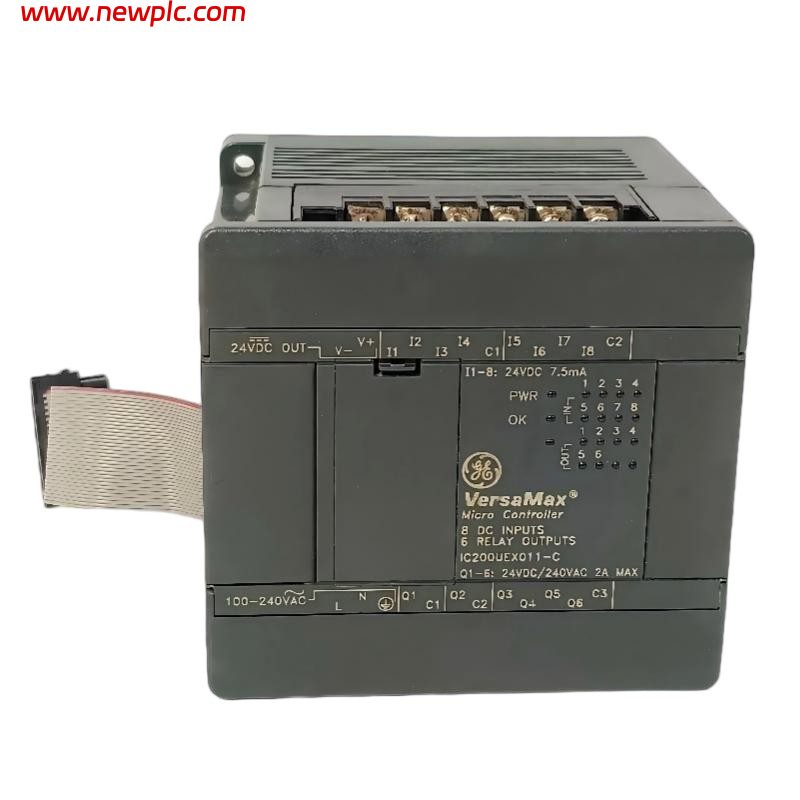

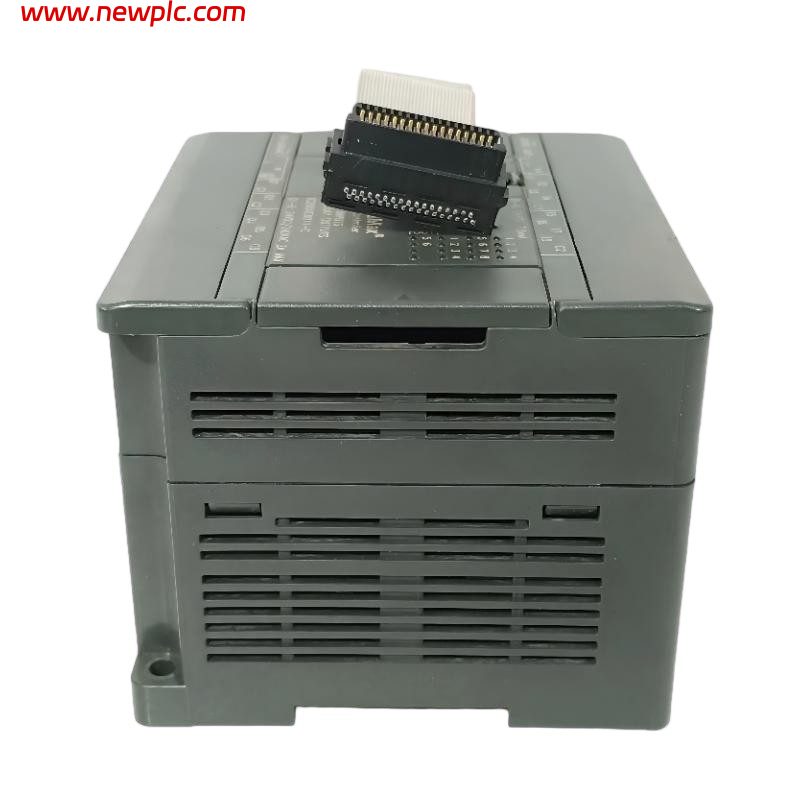

GE IC200UEX011-B VersaMax Micro Expansion Unit

FAQ

Q1: What is the GE Fanuc IC200UEX011-B used for?
The IC200UEX011-B is used to expand VersaMax Micro PLC systems by adding additional digital input and relay output points for industrial automation applications.

Q2: How many I/O points does the IC200UEX011-B provide?
The module provides 14 total I/O points, including 8 digital DC inputs and 6 relay outputs.

Q3: What type of input signals does the IC200UEX011-B support?
The input section supports 24 VDC positive or negative logic inputs with a voltage range of approximately 0–30 VDC. It can be connected to switches, sensors, and proximity devices.

Q4: What type of outputs are available on the IC200UEX011-B?
The module provides six Form A normally open relay outputs. These relay outputs can control devices operating at 5–250 VAC or 5–30 VDC.

Q5: What is the maximum current rating of the relay outputs?
Each relay output can handle up to 2 A, making the module suitable for controlling devices such as solenoid valves, motor starters, and indicator lamps.

Q6: What power supply does the IC200UEX011-B require?
The module requires a 100–240 VAC nominal power supply and operates with an input range of approximately 85–264 VAC.

Q7: Does the IC200UEX011-B provide power for external field devices?
Yes. The module provides an isolated +24 VDC output supply rated up to 200 mA for powering compatible field devices.

Q8: What should be checked before replacing an IC200UEX011-B module?
Before replacement, verify the VersaMax Micro system compatibility, AC input voltage, I/O wiring, relay load ratings, expansion bus connection, and PLC configuration settings to ensure proper operation.
