Technical Specifications
| Parameter | Description |
|---|---|
| Model | IC660BBA025 |

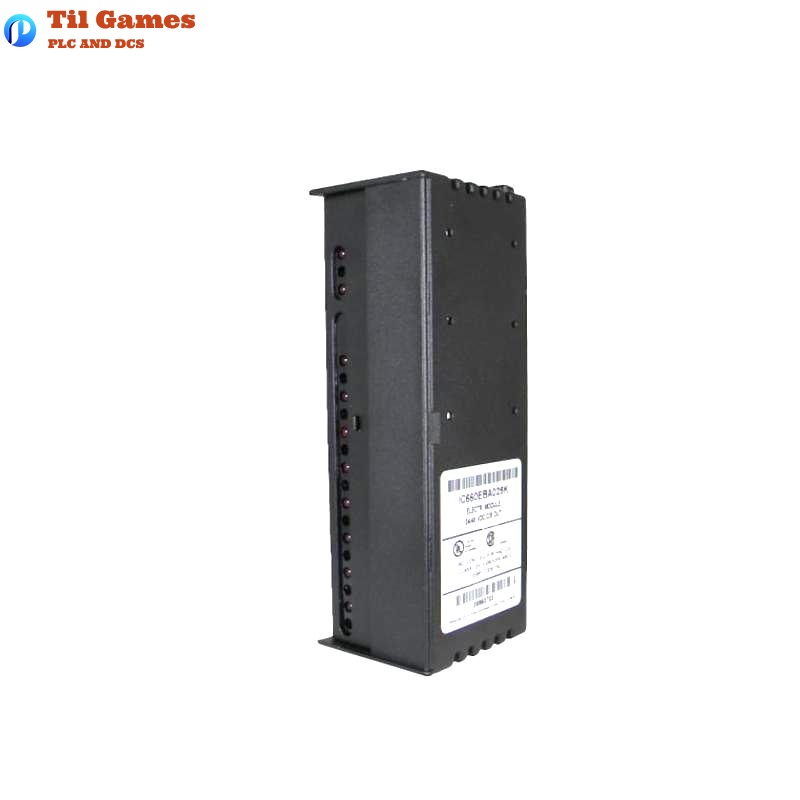

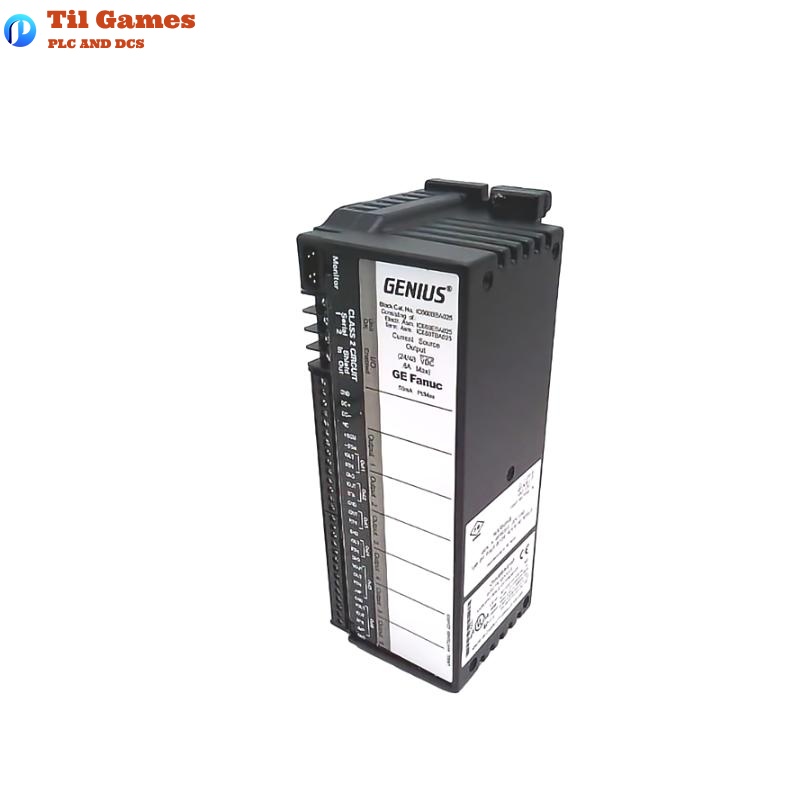

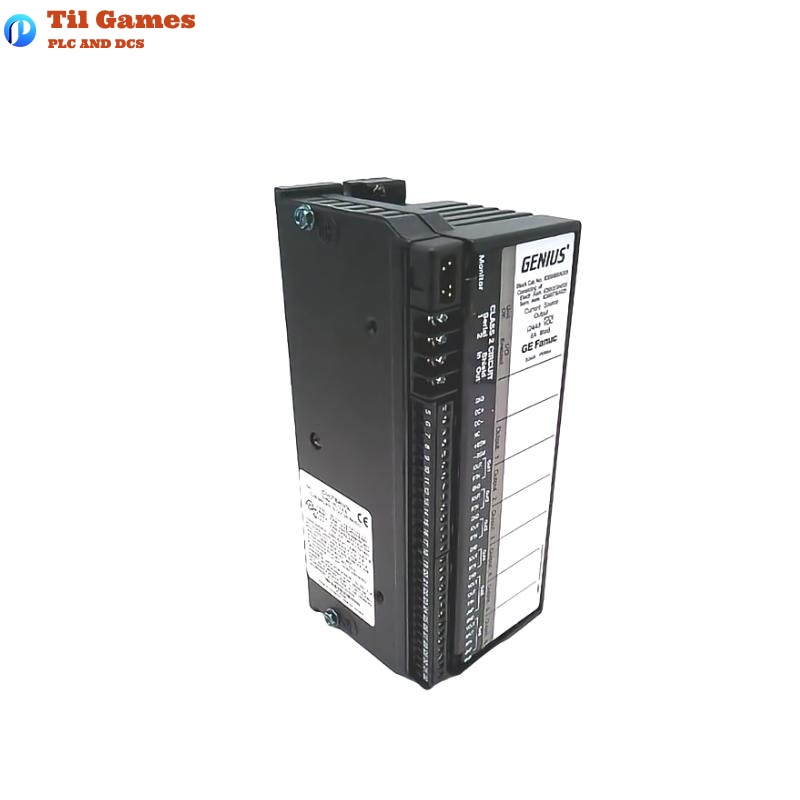

| Module Type | Genius Current-Source Analog Output Block |
| Number of Channels | 4 independent analog output channels |
| Output Type | Current Source |
| Output Range | 0–20 mA |
| Resolution | 12 bits |
| Output Accuracy | ±0.5% of full scale |
| Load Impedance | 0–750 Ohms |
| Isolation | Channel-to-logic isolation |
| Operating Voltage | 10–30 VDC |
| Power Consumption | 3.8 Watts typical |
| Communication | Genius Bus |
| Configuration | Via Hand-held Monitor or configuration software |
| LED Indicators | Power, fault, and channel status LEDs |
| Dimensions | 224.4 x 88.9 x 100 mm |
| Weight | 2.17 kg |
| Mounting | Panel mounting |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +100°C |
| Relative Humidity | 5% to 95%, non-condensing |
FAQ
FAQ
Q1: What type of output does the IC660BBA025 provide?
A1: It provides current-source analog output in the range of 0 to 20 mA.
Q2: How many output channels does the module have?
A2: The IC660BBA025 has 4 independent analog output channels.
Q3: What is the maximum load per channel?
A3: Each channel supports a load impedance up to 750 Ohms.
Q4: Is the module isolated?
A4: Yes, each output channel is isolated from the logic circuitry.
Q5: How is the module configured?
A5: Configuration is done using a Hand-held Monitor or Genius configuration software.
Q6: What is the operating voltage range?
A6: It operates within a voltage range of 10 to 30 VDC.
Q7: Does it have LED indicators?
A7: Yes, the module features LED indicators for power, fault, and channel status.
Q8: What is the typical power consumption of the module?
A8: The typical power consumption is approximately 3.8 watts.
