Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | IC660BBA103 |

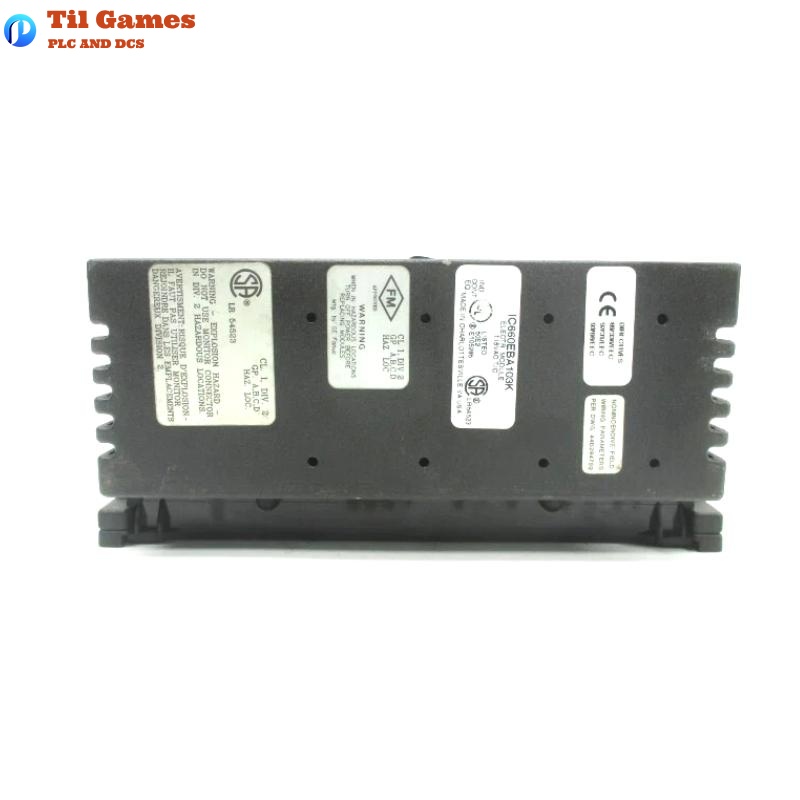

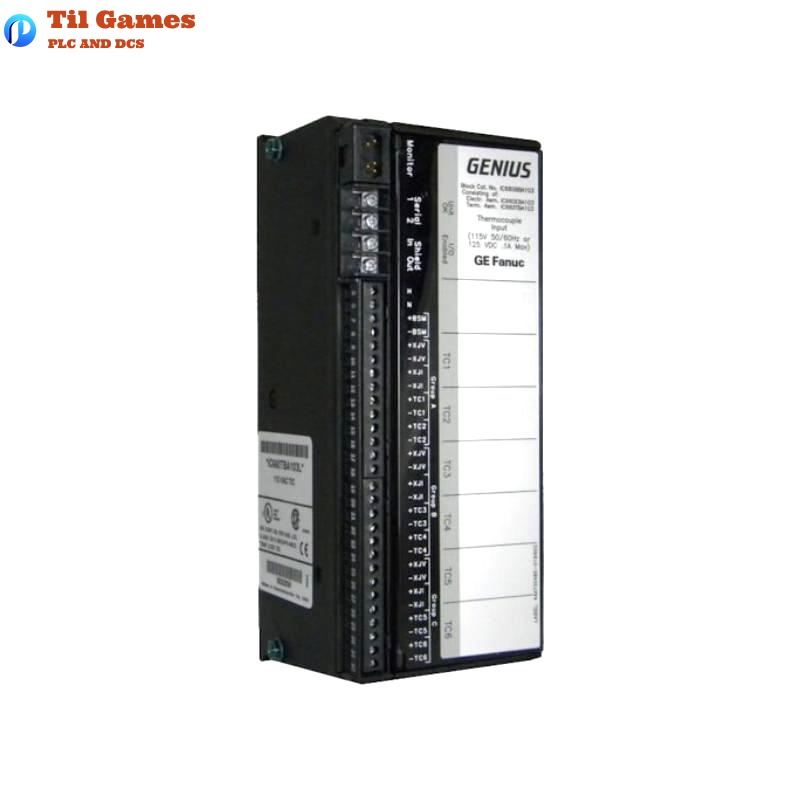

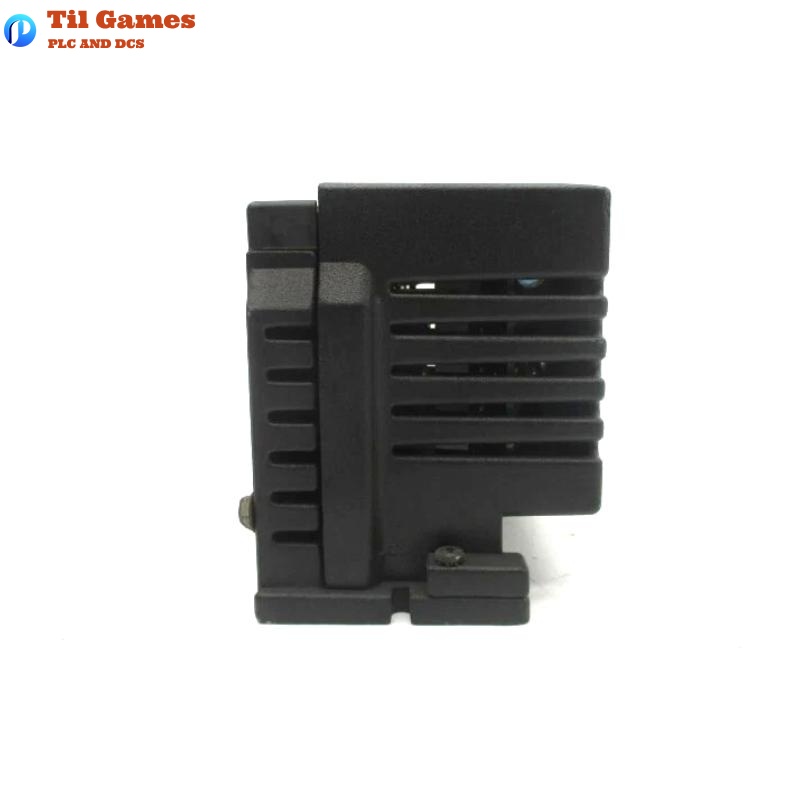

| Product Type | Genius Thermocouple Analog Input Block |
| Number of Channels | 6 independent thermocouple inputs |
| Supported Thermocouple Types | J, K, T, E, B, R, S, N, L |
| Input Signal Type | Thermocouple |
| Cold Junction Compensation | Internal (I), External via XJV/XJI methods |
| Input Measurement Units | °C, °F, millivolts, or raw counts |
| Input Range | Based on thermocouple type, configurable |
| Resolution | 0.1°C or 0.1°F |
| Alarm Thresholds | Configurable high/low alarm per channel |
| Offset Adjustment | Per channel input offset configurable (±100.0 units) |
| Power Supply | 115 VAC / 125 VDC |
| Baud Rate | 38.4 Kb, 76.8 Kb, 153.6 Kb (Standard/Extended) |
| Configuration Protection | Yes (optional) |
| Installation Environment | Requires 2 hours thermal stabilization for offset tuning |
| Dimensions | 224.4 x 88.9 x 100 mm |
| Weight | 1.8 kg |
FAQ
FAQ
Q1: What thermocouple types are supported by this module?
A1: The IC660BBA103 supports J, K, T, E, B, R, S, N, and L types.
Q2: How many input channels does the module have?
A2: It supports 6 independent thermocouple input channels.
Q3: How is cold junction compensation handled?
A3: Compensation methods include Internal (I) and External via XJV or XJI methods.
Q4: What temperature units can be configured?
A4: Celsius (°C), Fahrenheit (°F), millivolts, or raw counts can be selected.
Q5: Can alarm thresholds be set per channel?
A5: Yes, each channel allows configurable high and low alarm thresholds.
Q6: Does the module support input offset calibration?
A6: Yes, it allows ±100.0 units of offset adjustment per input channel.
Q7: What power supply does it require?
A7: It requires either 115 VAC or 125 VDC power.
Q8: What are the physical dimensions and weight of the module?
A8: The module measures 224.4 x 88.9 x 100 mm and weighs 1.8 kg.
